Home >> Scion >> 2007 >> tC Base, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle >> Park / Neutral Position Switch >> Components

Park / Neutral Position Switch: Components

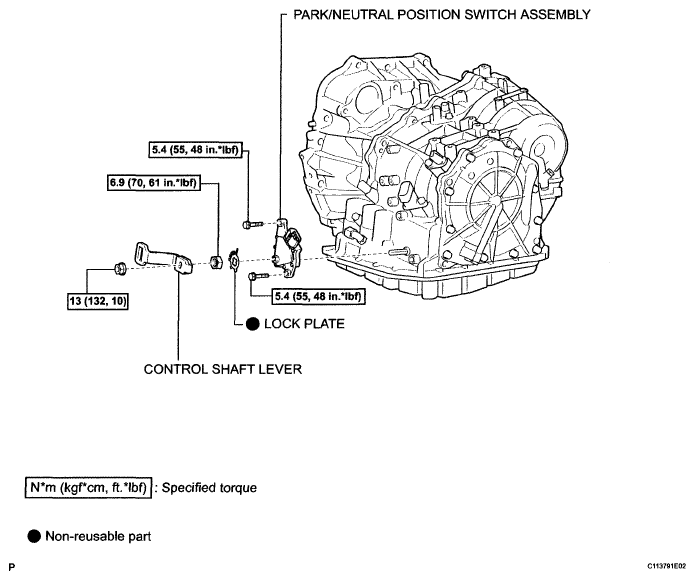

Fig 1: Identifying Park/Neutral Position Switch Components With Specification

G04866130

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
