Floor Shift Assembly: Components

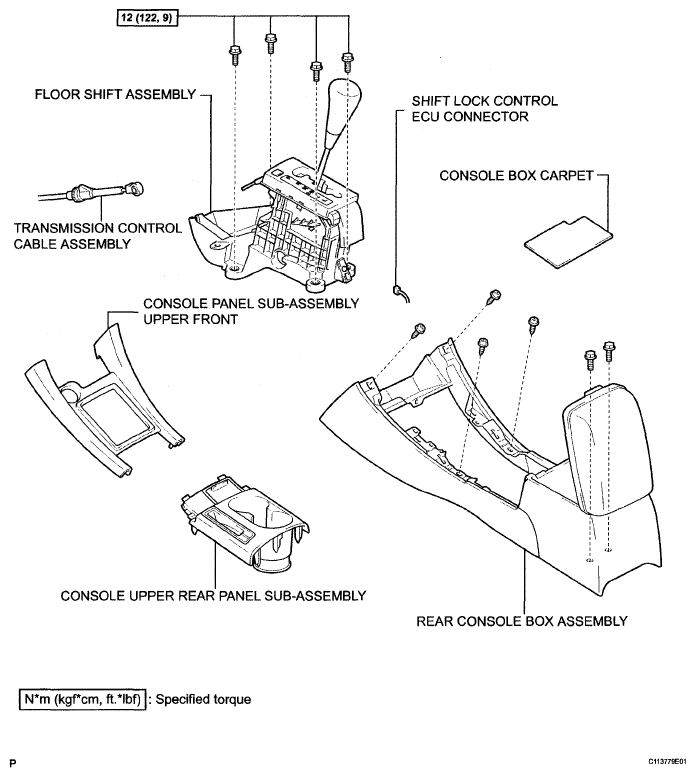

Fig 1: Identifying Floor Shift Assembly Components With Specifications (1 Of 2)
G04866189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

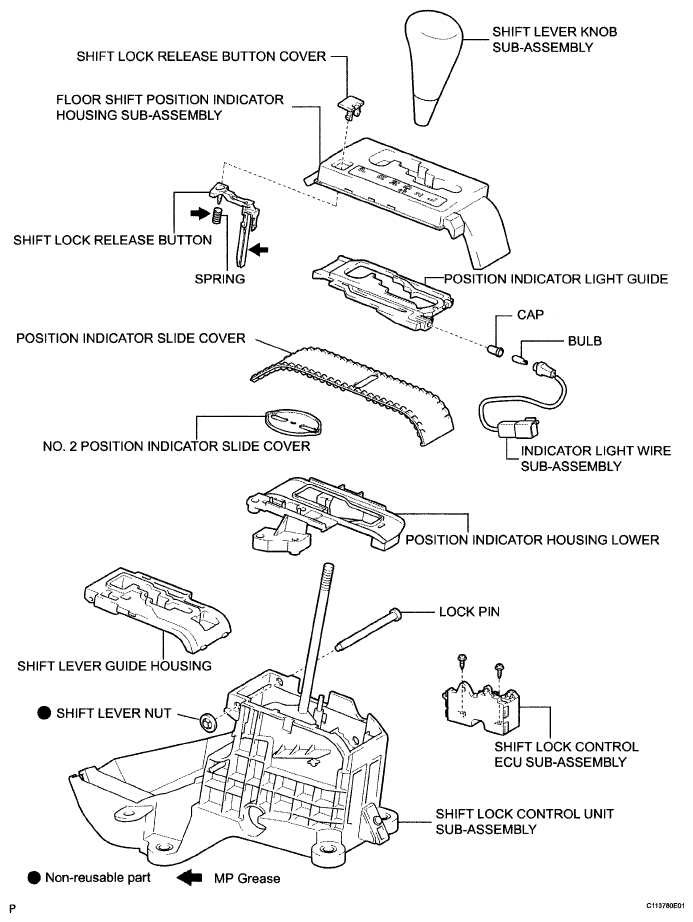

Fig 2: Identifying Floor Shift Assembly Components With Specifications (2 Of 2)
G04866190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
