Home >> Scion >> 2007 >> tC Spec, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle >> Transmission Revolution Sensor >> Components

Transmission Revolution Sensor: Components

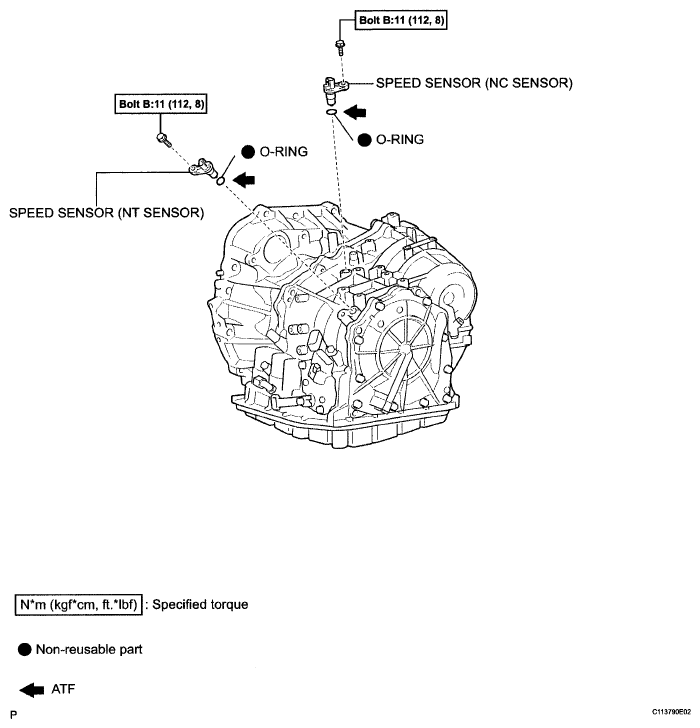

Fig 1: Identifying Transmission Revolution Sensor Components With Specifications

G04866125

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
