Roof Window Fix Glass: Components

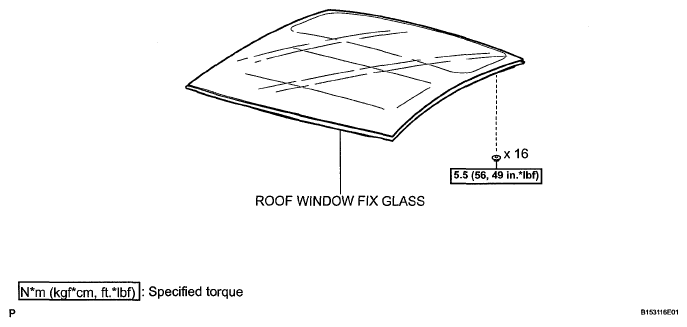

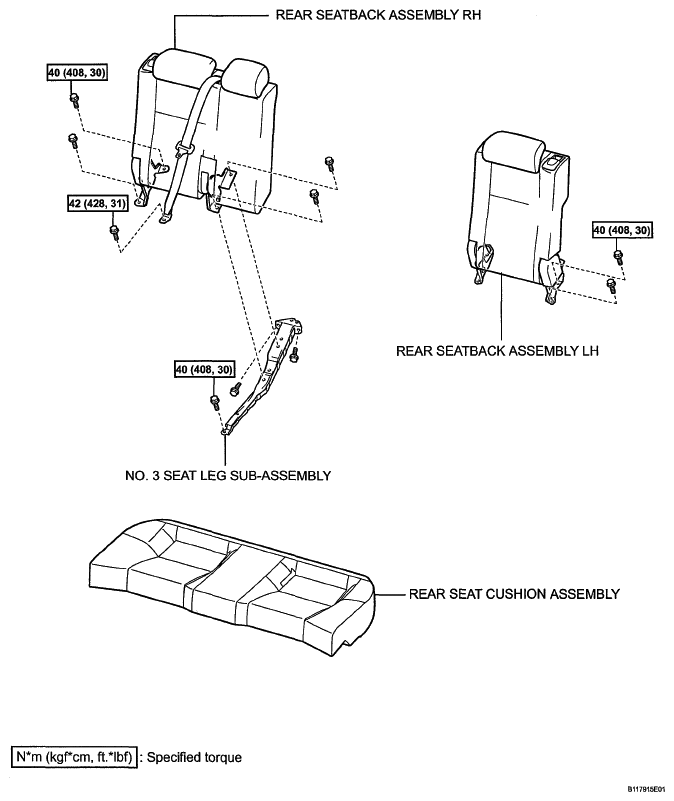

Fig 1: Roof Window Fix Glass Replacement Components With Torque Specifications (1 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

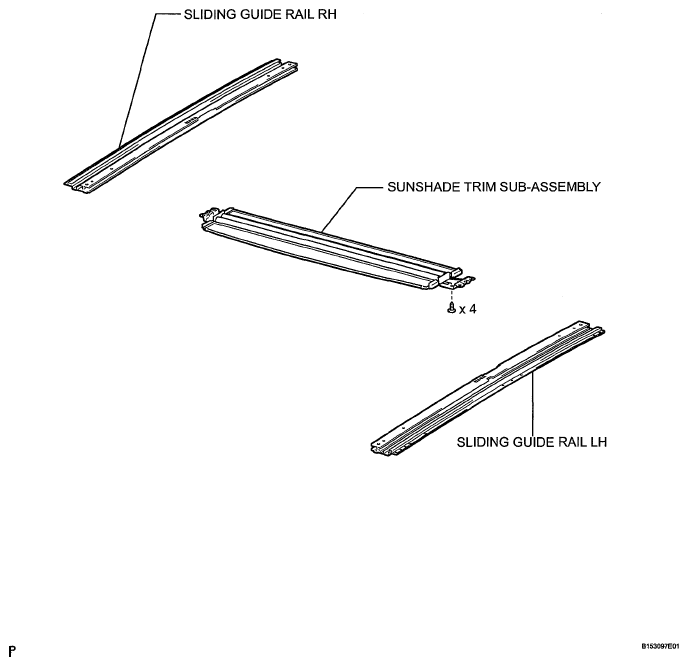

Fig 2: Identifying Roof Window Fix Glass Components (2 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

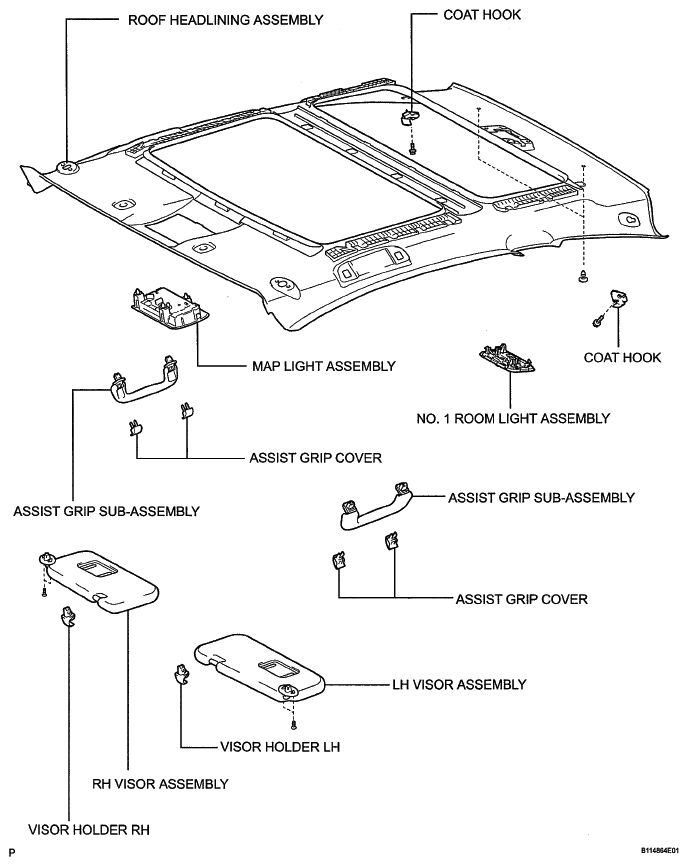

Fig 3: Identifying Roof Window Fix Glass Components (3 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

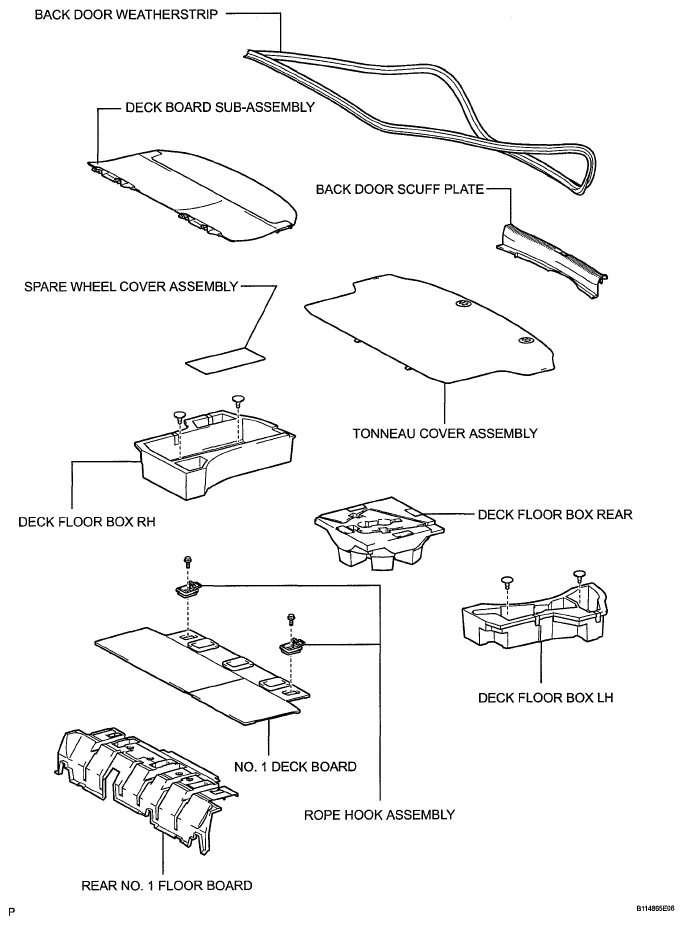

Fig 4: Identifying Roof Window Fix Glass Components (4 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

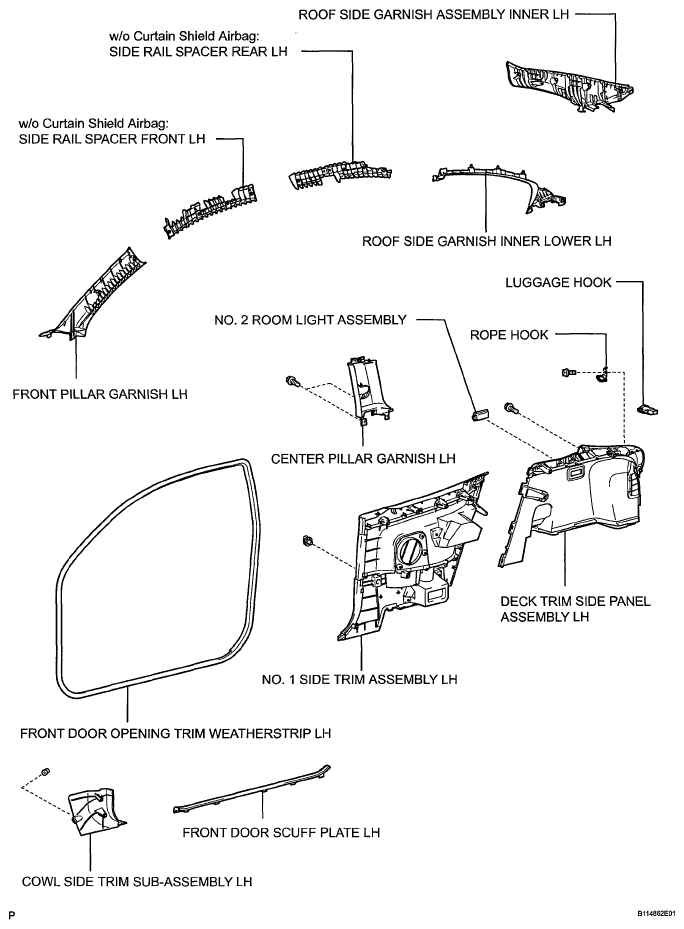

Fig 5: Identifying Roof Window Fix Glass Components (5 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

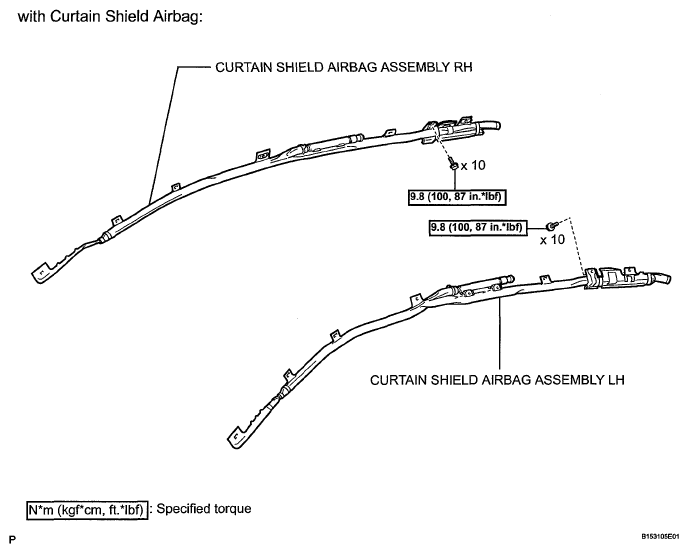

Fig 6: Roof Window Fix Glass Replacement Components With Torque Specifications (6 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

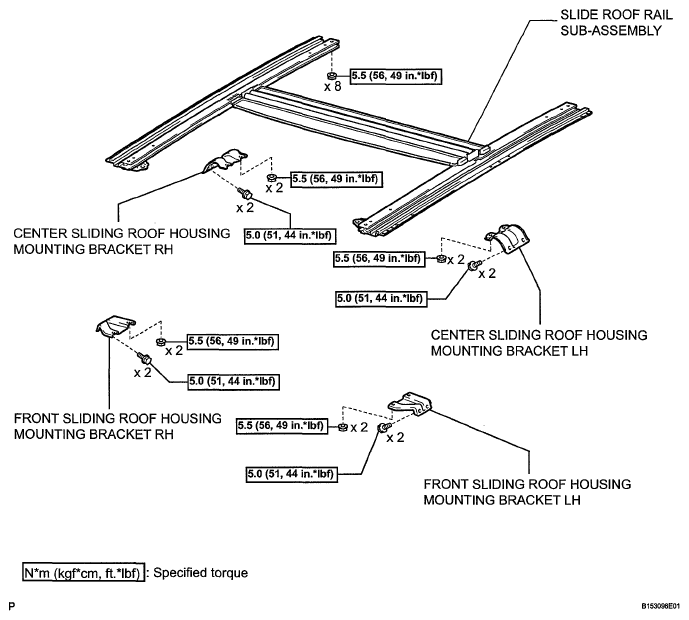

Fig 7: Roof Window Fix Glass Replacement Components With Torque Specifications (7 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

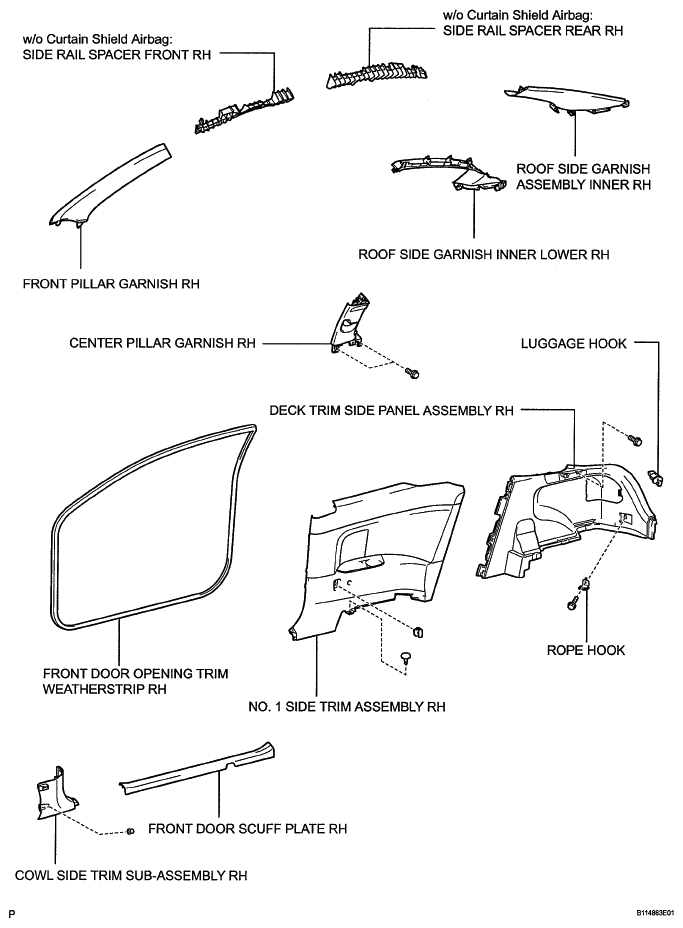

Fig 8: Identifying Roof Window Fix Glass Components (8 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 9: Roof Window Fix Glass Replacement Components With Torque Specifications (9 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
