Roof Window Fix Glass: Installation

  1. TEMPORARILY TIGHTEN ROOF WINDOW FIX GLASS
    1. Temporarily install the roof window fix glass with the 16 nuts.

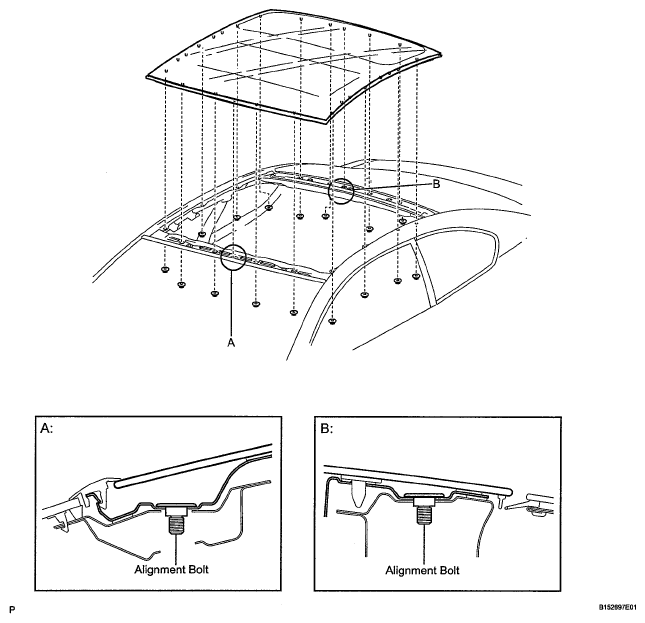

      Fig 1: Identifying Roof Window Fix Glass With Nuts
      G05541818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • When installing the panel to the vehicle, first install the panel center front and center rear alignment bolts to the vehicle, as shown in the illustration.
      • When installing the panel, be careful not to damage the vehicle.
      • Performing this step will require 2 or more technicians.
    2. Check that the alignment bolts are firmly installed.
      NOTE: When the bolts are not firmly installed, water will leak, causing malfunctions.
  2. ADJUST ROOF WINDOW FIX GLASS
    1. The roof window fix glass does not have adjusting screws. Instead, adjust the position of the roof window glass within the measurement range shown in the illustration and table.

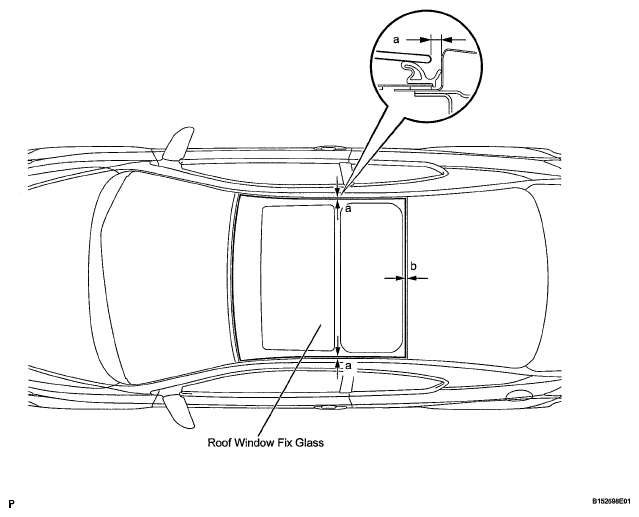

      Fig 2: Identifying Positioning Of Roof Window Glass With Measurement Range
      G05541819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard

      MEASUREMENT REFERENCE

      Area Measurement range
      a 6.0 mm + 1.5 mm (0.244 in. + 0.059 in.)
      6.0 mm - 1.5 mm (0.244 in. - 0.059 in.)
      b 7.0 mm + 2.0 mm (0.276 in. + 0.039 in.)
      7.0 mm - 2.0 mm (0.276 in. - 0.039 in.)

      HINT:

      "+" represents the condition that the glass is above the panel level. "-" represents the condition that the glass is below the panel level.

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

  3. INSTALL SUNSHADE TRIM SUB-ASSEMBLY
    1. Install the sunshade trim sub-assembly with the 4 screws.
  4. INSTALL SLIDE ROOF RAIL SUB-ASSEMBLY
    1. Install the slide roof rail sub-assembly with the 8 nuts.
      Fig 3: Identifying Sunshade Trim Sub-Assembly With Screws
      G05541816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

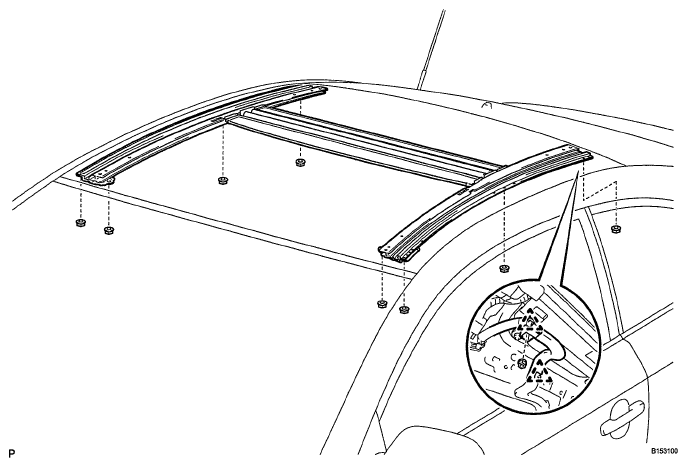

      Fig 4: Identifying Slide Roof Rail Sub-Assembly With Clamps And Nuts
      G05541815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

    2. Install the 2 clamps.
  5. INSTALL CENTER SLIDING ROOF HOUSING MOUNTING BRACKET LH
    1. Install the center sliding roof housing mounting bracket LH with the 2 bolts and 2 nuts.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf) (bolt)

      5.5 N*m (56 kgf*cm, 49 in.*lbf) (nut)

  6. INSTALL CENTER SLIDING ROOF HOUSING MOUNTING BRACKET RH

    HINT:

    Use the same procedure for the rear side and the front side.

    Fig 5: Identifying Center Sliding Roof Housing Mounting Bracket Bolts And Nuts
    G05541814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL FRONT SLIDING ROOF HOUSING MOUNTING BRACKET LH
    1. Install the front sliding roof housing mounting bracket LH with the 2 bolts and 2 nuts.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf) (bolt)

      5.5 N*m (56 kgf*cm, 49 in.*lbf) (nut)

  8. INSTALL FRONT SLIDING ROOF HOUSING MOUNTING BRACKET RH

    HINT:

    Use the same procedure for the rear side and the front side.

    Fig 6: Identifying Front Sliding Roof Housing Mounting Bracket Bolts And Nuts
    G05541813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL SIDE RAIL SPACER FRONT LH (w/o Curtain Shield Airbag)
    1. Engage the 4 claws to install the front side rail spacer LH
  10. INSTALL SIDE RAIL SPACER FRONT RH (w/o Curtain Shield Airbag)

    HINT:

    Use the same procedure for the rear side and the front side.

    Fig 7: Identifying Claws On Front Side Rail Spacer LH
    G05541812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL SIDE RAIL SPACER REAR LH (w/o Curtain Shield Airbag)
    1. Engage the 4 claws to claws to install the
  12. INSTALL SIDE RAIL SPACER REAR RH (w/o Curtain Shield Airbag)

    HINT:

    Use the same procedure for the rear side and the front side.

  13. INSTALL CURTAIN SHIELD AIRBAG ASSEMBLY LH (w/ Curtain Shield Airbag)  ( INSTALLATION )
  14. INSTALL CURTAIN SHIELD AIRBAG ASSEMBLY RH (w/ Curtain Shield Airbag)

    HINT:

    Use the same procedure for the rear side and the front side.

    Fig 8: Identifying Claws On Side Rail Spacer Rear LH
    G05541811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL ROOF HEADLINING ASSEMBLY  ( INSTALLATION )
  16. INSTALL COAT HOOK  ( INSTALLATION )
  17. INSTALL ASSIST GRIP SUB-ASSEMBLY  ( INSTALLATION )
  18. INSTALL ASSIST GRIP COVER  ( INSTALLATION )
  19. INSTALL VISOR HOLDER LH  ( INSTALLATION )
  20. INSTALL VISOR HOLDER RH  ( INSTALLATION )
  21. INSTALL LH VISOR ASSEMBLY  ( INSTALLATION )
  22. INSTALL RH VISOR ASSEMBLY  ( INSTALLATION )
  23. INSTALL NO. 2 ROOM LIGHT ASSEMBLY  ( INSTALLATION )
  24. INSTALL NO. 1 ROOM LIGHT ASSEMBLY  ( INSTALLATION )
  25. INSTALL MAP LIGHT ASSEMBLY  ( INSTALLATION )
  26. INSTALL FRONT PILLAR GARNISH LH  ( INSTALLATION )
  27. INSTALL FRONT PILLAR GARNISH RH  ( INSTALLATION )
  28. INSTALL ROOF SIDE GARNISH ASSEMBLY INNER LH  ( INSTALLATION )
  29. INSTALL ROOF SIDE GARNISH ASSEMBLY INNER RH  ( INSTALLATION )
  30. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH  ( INSTALLATION )
  31. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH  ( INSTALLATION )
  32. INSTALL ROOF SIDE GARNISH INNER LOWER LH  ( INSTALLATION )
  33. INSTALL ROOF SIDE GARNISH INNER LOWER RH  ( INSTALLATION )
  34. INSTALL CENTER PILLAR GARNISH LH  ( INSTALLATION )
  35. INSTALL CENTER PILLAR GARNISH RH  ( INSTALLATION )
  36. INSTALL NO. 1 SIDE TRIM ASSEMBLY LH  ( INSTALLATION )
  37. INSTALL NO. 1 SIDE TRIM ASSEMBLY RH  ( INSTALLATION )
  38. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
  39. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH
  40. INSTALL REAR SEATBACK ASSEMBLY LH  ( INSTALLATION )
  41. INSTALL REAR SEATBACK ASSEMBLY RH  ( INSTALLATION )
  42. INSTALL REAR SEAT CUSHION ASSEMBLY  ( INSTALLATION )
  43. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH  ( INSTALLATION )
  44. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH  ( INSTALLATION )
  45. INSTALL FRONT DOOR SCUFF PLATE LH  ( INSTALLATION )
  46. INSTALL FRONT DOOR SCUFF PLATE RH  ( INSTALLATION )
  47. INSTALL FRONT DOOR SCUFF PLATE OUTSIDE LH  ( INSTALLATION )
  48. INSTALL FRONT DOOR SCUFF PLATE OUTSIDE RH  ( INSTALLATION )
  49. INSTALL REAR NO. 1 FLOOR BOARD  ( INSTALLATION )
  50. INSTALL NO. 1 DECK BOARD  ( INSTALLATION )
  51. INSTALL DECK FLOOR BOX REAR
  52. INSTALL DECK FLOOR BOX LH  ( INSTALLATION )
  53. INSTALL DECK FLOOR BOX RH  ( INSTALLATION )
  54. INSTALL SPARE WHEEL COVER ASSEMBLY
  55. INSTALL BACK DOOR WEATHERSTRIP
  56. INSTALL BACK DOOR SCUFF PLATE  ( INSTALLATION )
  57. INSTALL DECK BOARD SUB-ASSEMBLY
  58. INSTALL TONNEAU COVER ASSEMBLY
  59. CONNECT NEGATIVE BATTERY TERMINAL
  60. PERFORM INITIALIZATION

    ( INITIALIZATION )

  61. INSPECT SRS WARNING LIGHT
