Home >> Scion >> 2008 >> tC Base, Automatic >> Repair and Diagnosis >> Body & Frame >> Windows >> Windshield/WINDOWGLASS >> Windshield Glass >> Components

Windshield Glass: Components

Fig 1: Identifying Windshield Glass (1 Of 2)
G05541776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

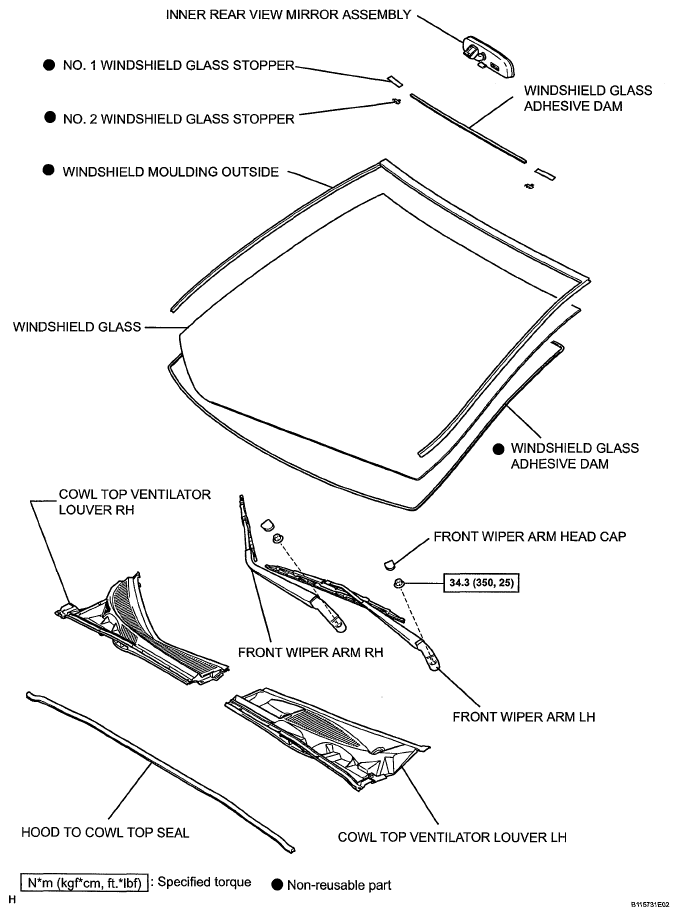

Fig 2: Windshield Glass With Torque Specification (2 Of 2)
G05541777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
