Home >> Scion >> 2008 >> tC Base, Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Back Door Opener >> Notes

Back Door Opener: Notes

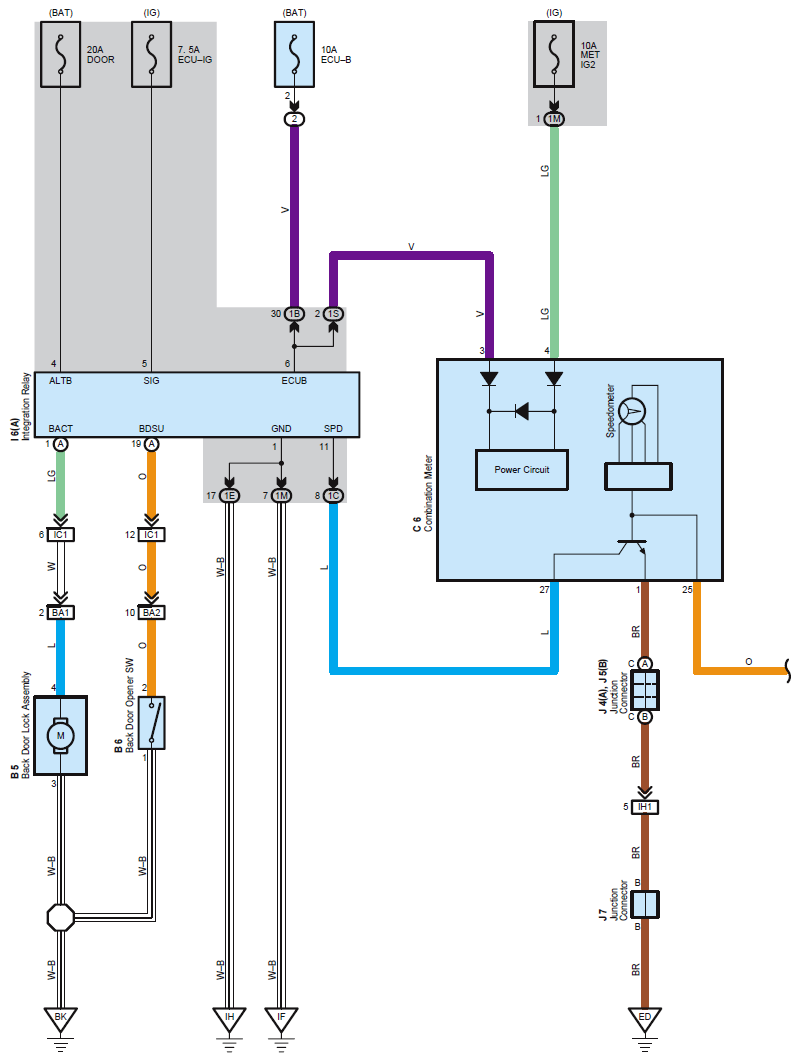

Fig 1: Back Door Opener - Circuit Diagram (1 Of 2)
G07603189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Back Door Opener - Circuit Diagram (2 Of 2)
G07603190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
