Home >> Scion >> 2008 >> tC Base, Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Headlight >> Notes

OEM System Circuits: Headlight: Notes

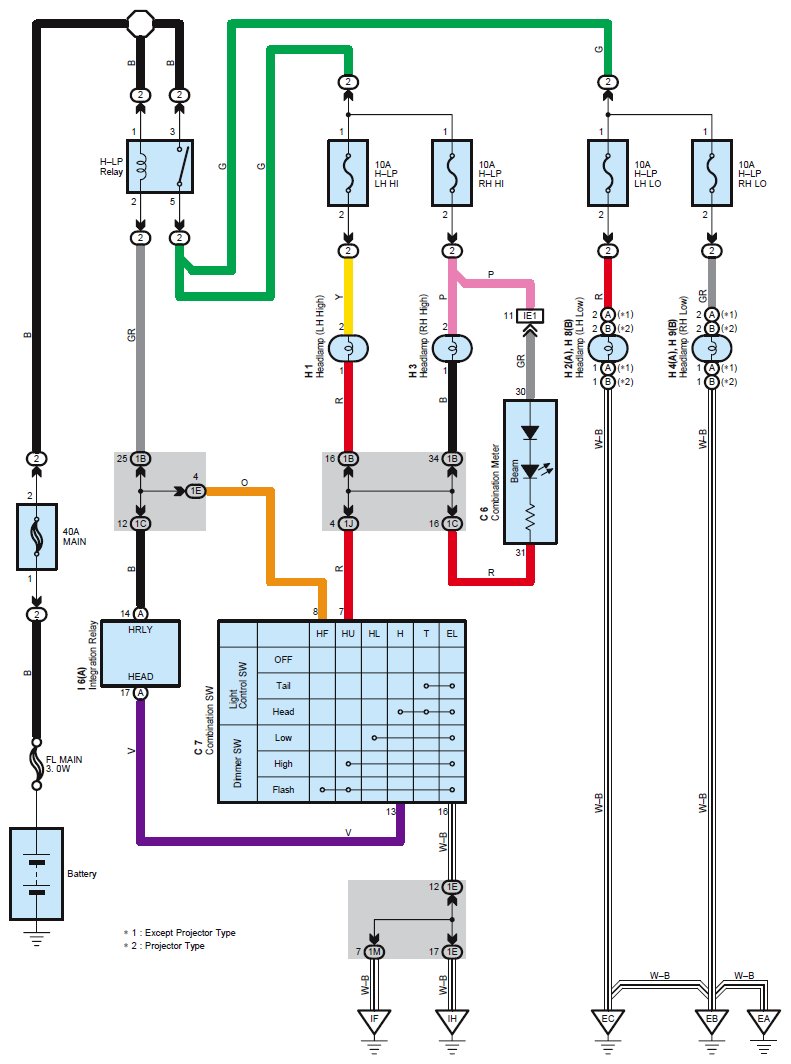

Fig 1: Headlight - Circuit Diagram
G07603166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
