Home >> Scion >> 2008 >> tC Base, Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Key Reminder >> Notes

Key Reminder: Notes

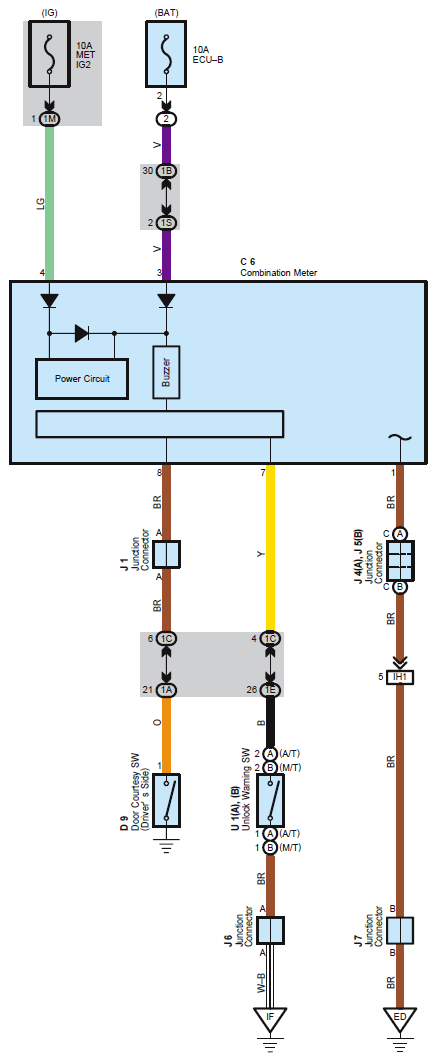

Fig 1: Key Reminder - Circuit Diagram
G07603215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
