Power Source: Notes

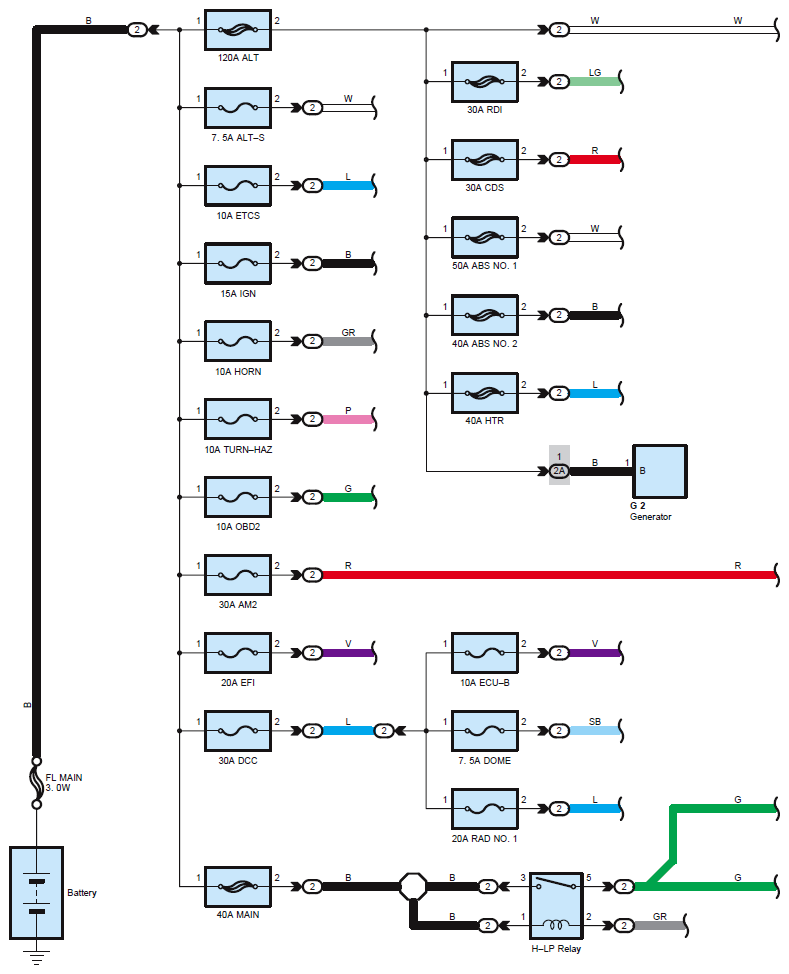

Fig 1: Power Source - Circuit Diagram (1 Of 2)
G07603151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

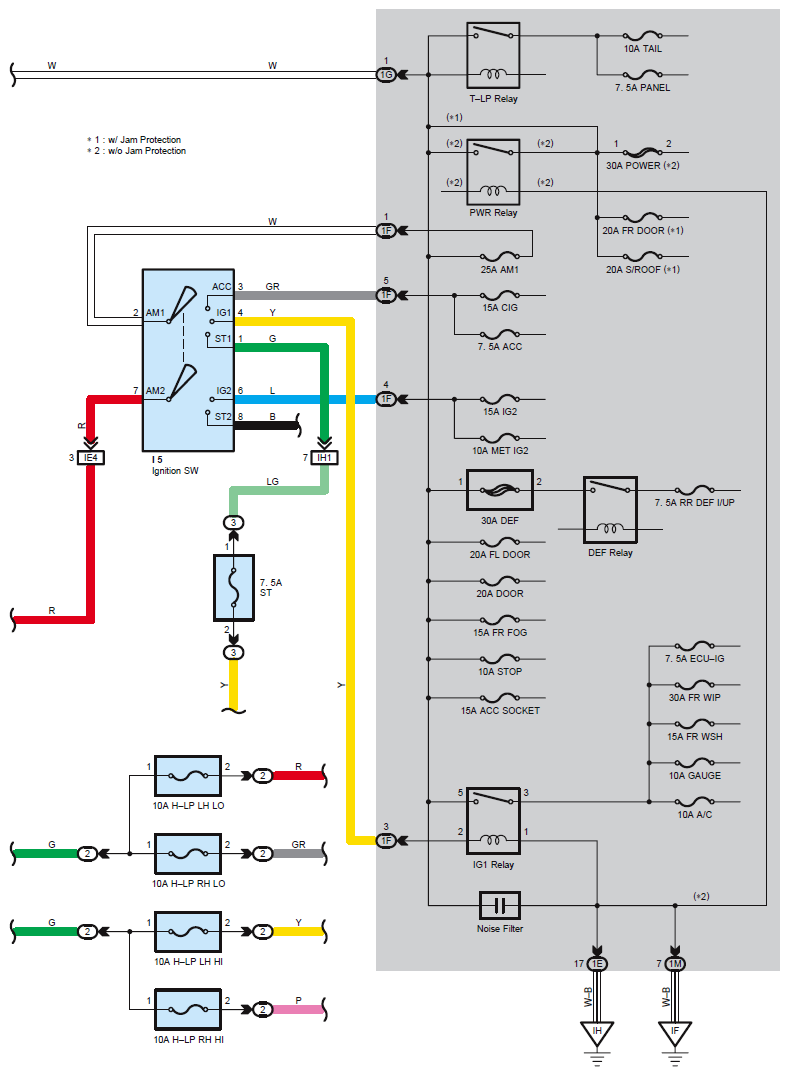

Fig 2: Power Source - Circuit Diagram (2 Of 2)
G07603152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
