Home >> Scion >> 2008 >> tC Base, Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Power Window without Jam Protection >> Notes

Power Window without Jam Protection: Notes

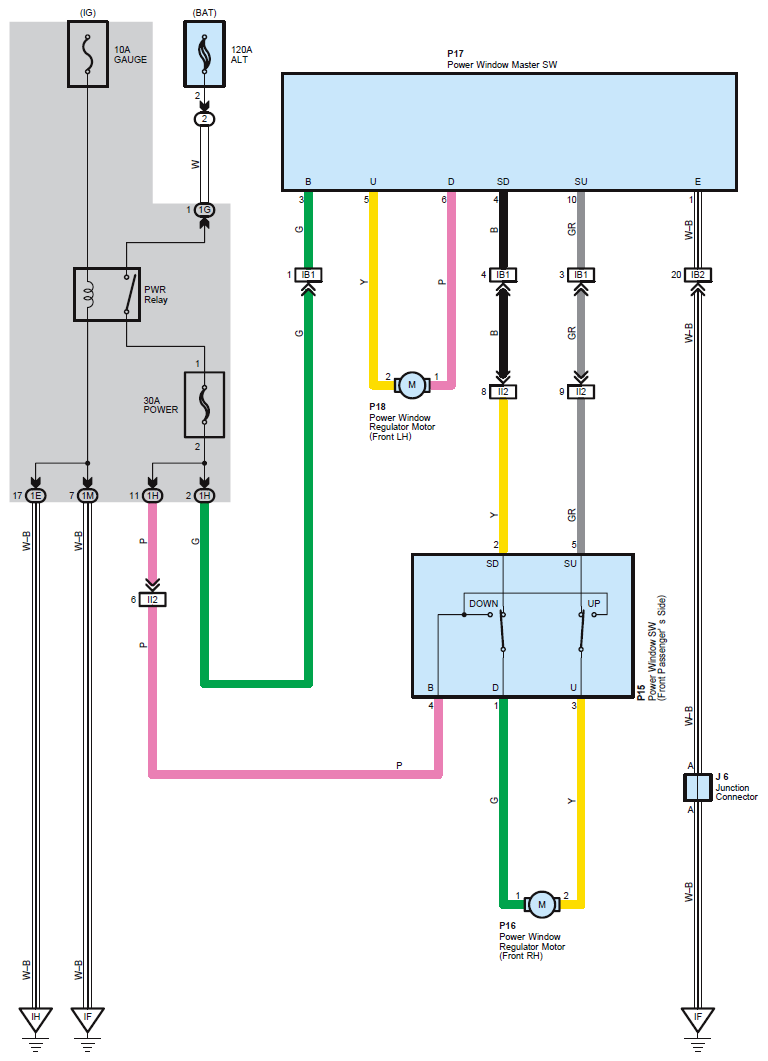

Fig 1: Power Window Without Jam Protection - Circuit Diagram

G07603182

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
