Home >> Scion >> 2008 >> tC Base, Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Taillight >> Notes

OEM System Circuits: Taillight: Notes

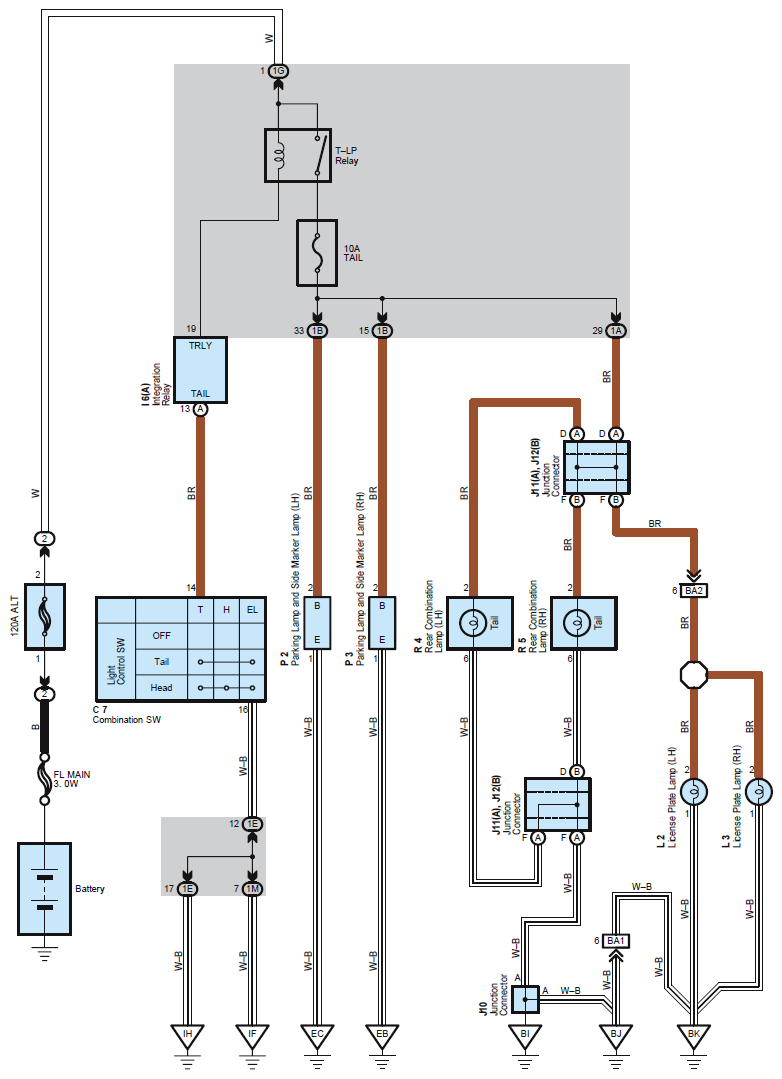

Fig 1: Taillight - Circuit Diagram
G07603174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
