Lower Instrument Panel: Components

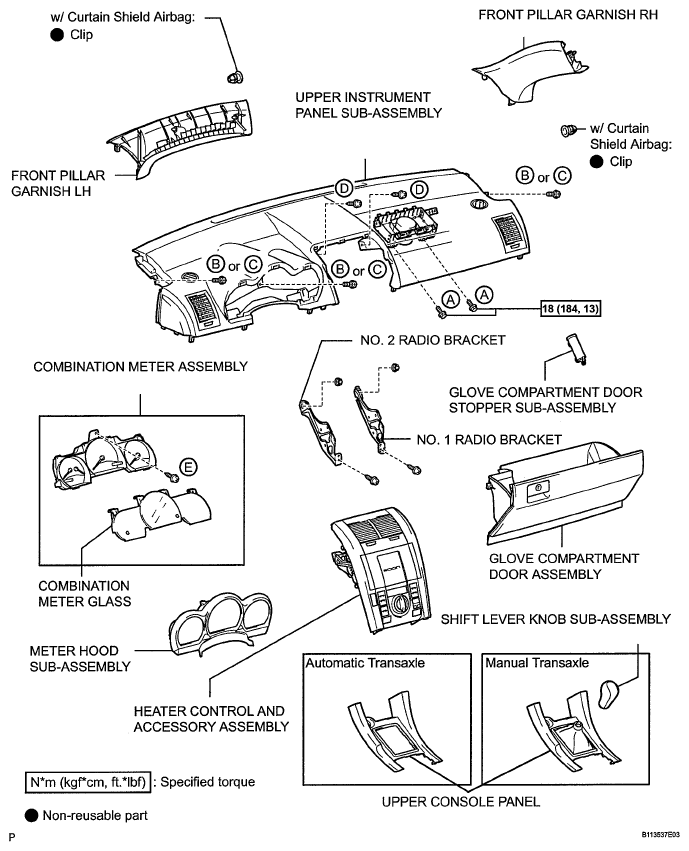

Fig 1: Upper Instrument Panel Replacement Components With Torque Specifications (1 Of 2)
G05541857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

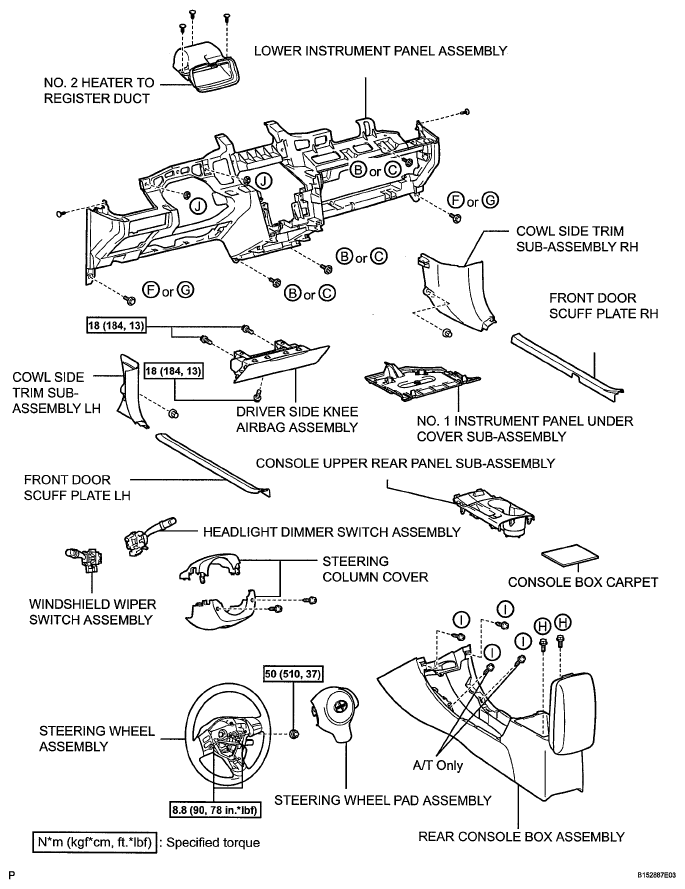

Fig 2: Lower Instrument Panel Replacement Components With Torque Specifications (2 Of 3)
G05541886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

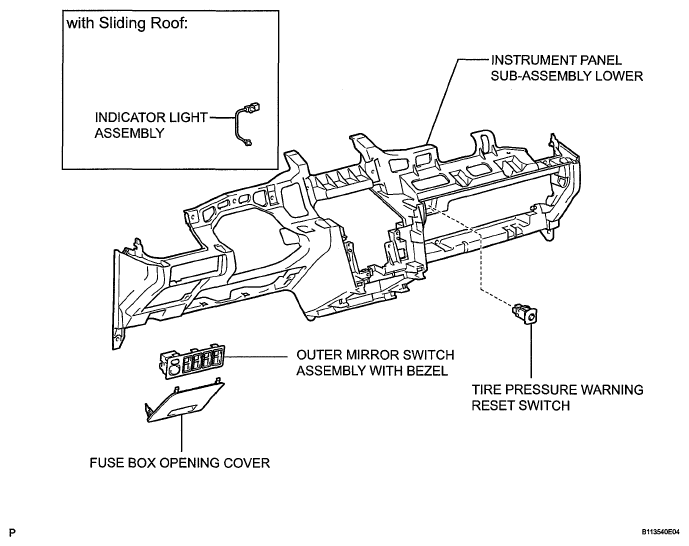

Fig 3: Lower Instrument Panel Replacement Components With Torque Specifications (3 Of 3)
G05541887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
