Fuel Injector: Components

Fig 1: Fuel Injector And Replacement Components With Torque Specifications (1 Of 2)
G05538439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

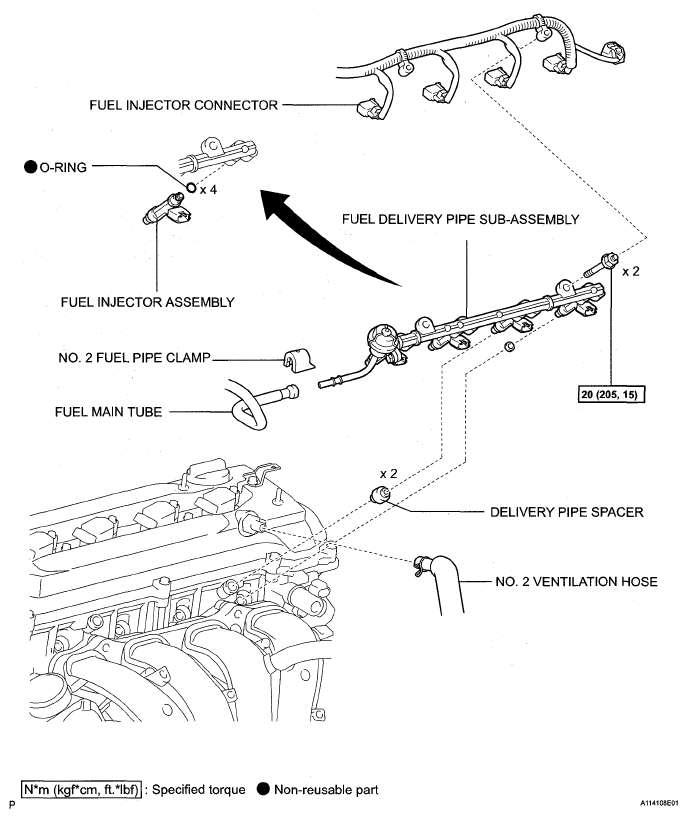

Fig 2: Fuel Injector And Replacement Components With Torque Specifications (2 Of 2)
G05538440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
