Home >> Scion >> 2008 >> tC Base, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> U241E Automatic Transaxle >> Transmission Revolution Sensor >> Components

Transmission Revolution Sensor: Components

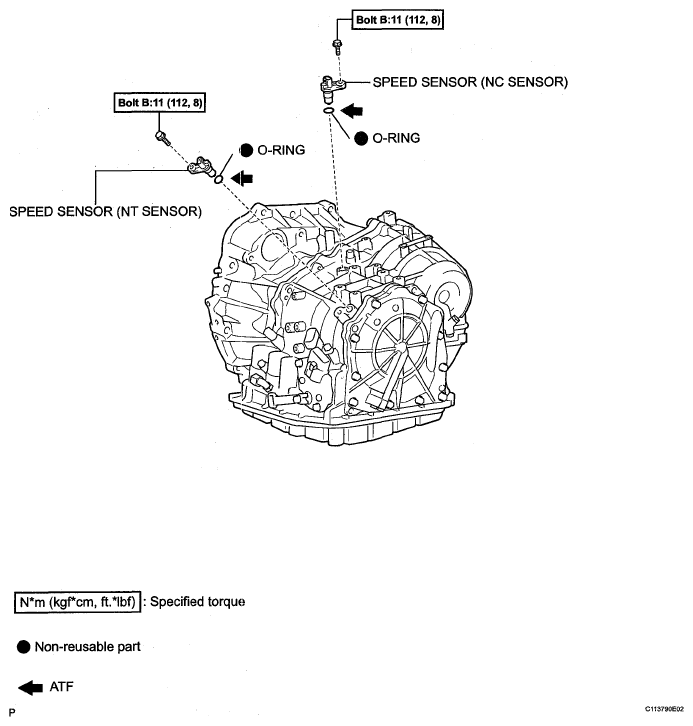

Fig 1: Transmission Revolution Sensor Replacement Components With Torque Specifications

G05539355

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
