OEM System Circuits: EPS: Notes

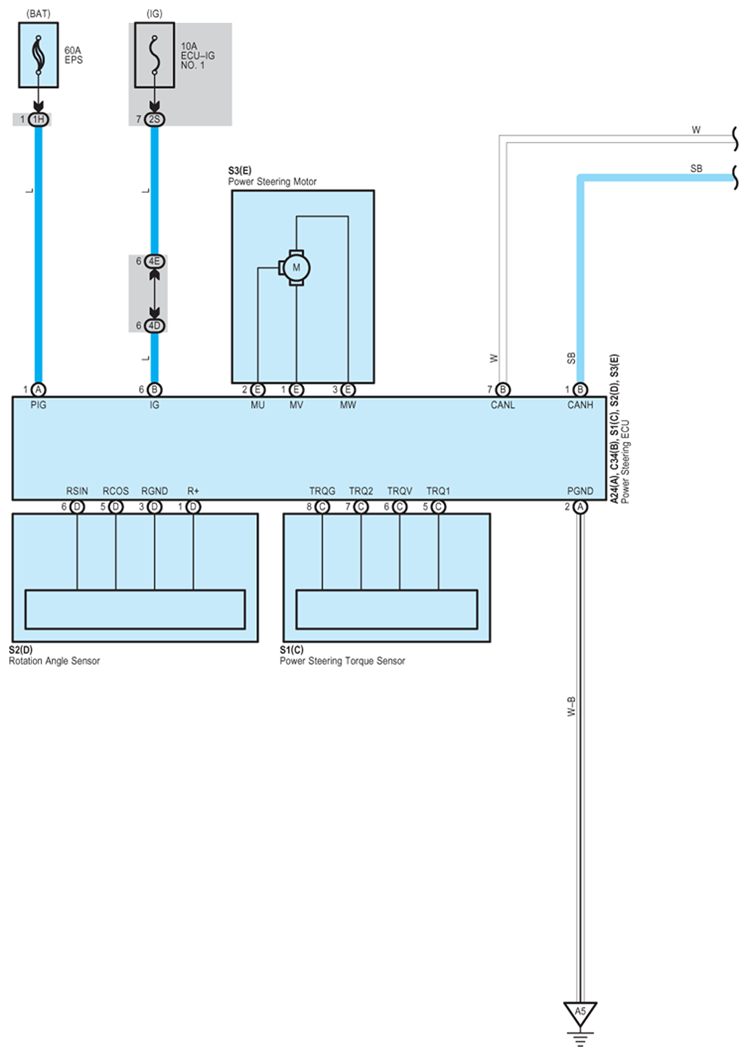

Fig 1: EPS - Circuit Diagram (1 Of 3)
G07618050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

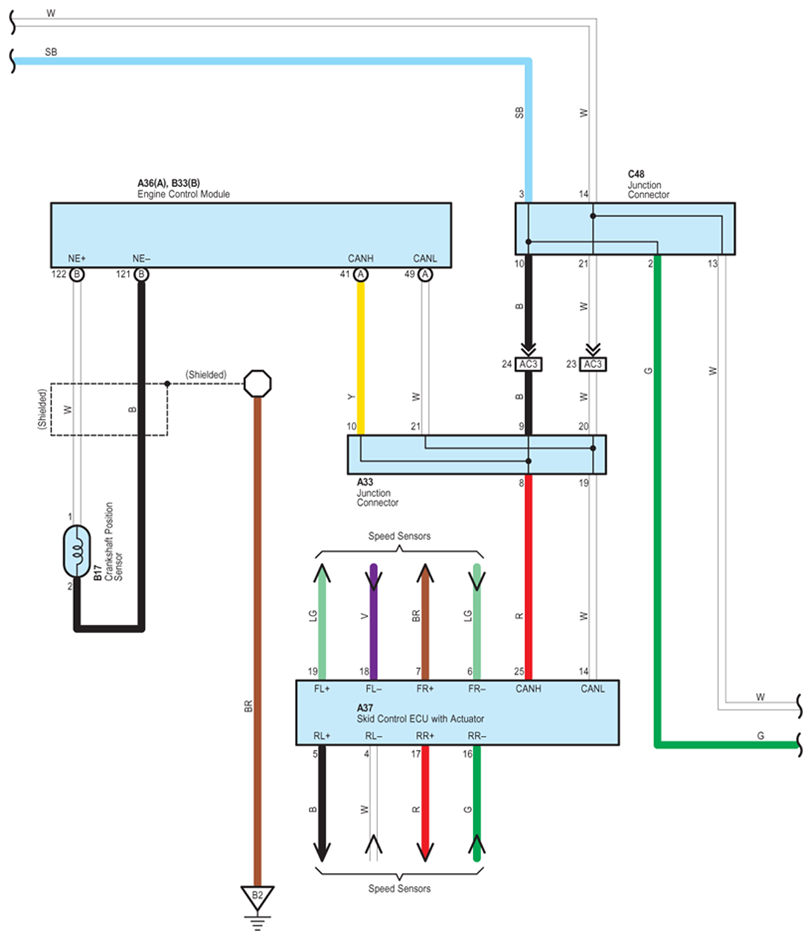

Fig 2: EPS - Circuit Diagram (2 Of 3)
G07618051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

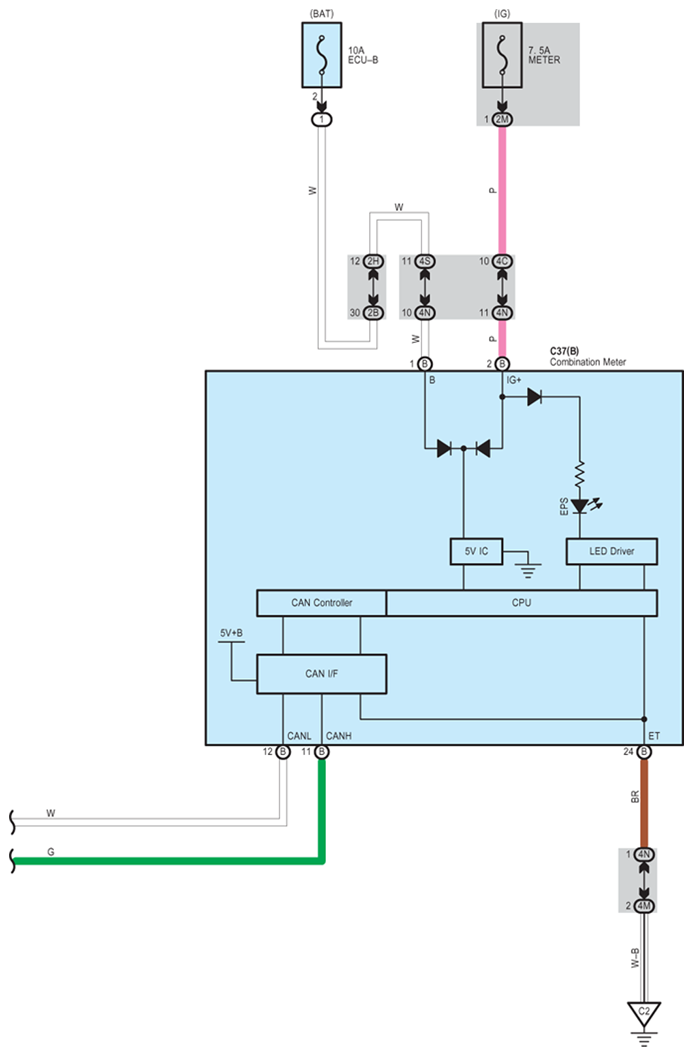

Fig 3: EPS - Circuit Diagram (3 Of 3)
G07618052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
