Ignition Coil And Spark Plug: Components

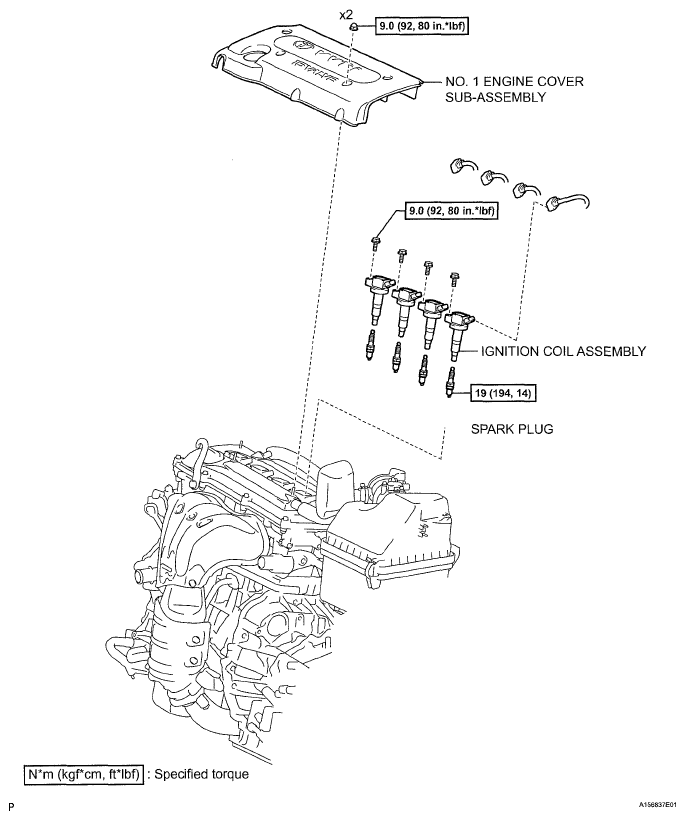

Fig 1: Ignition Coil And Spark Plug Replacement Components With Torque Specifications
G05387825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
