OEM System Circuits
>>
Data Link Connector 3
>>
Notes
Data Link Connector 3: Notes

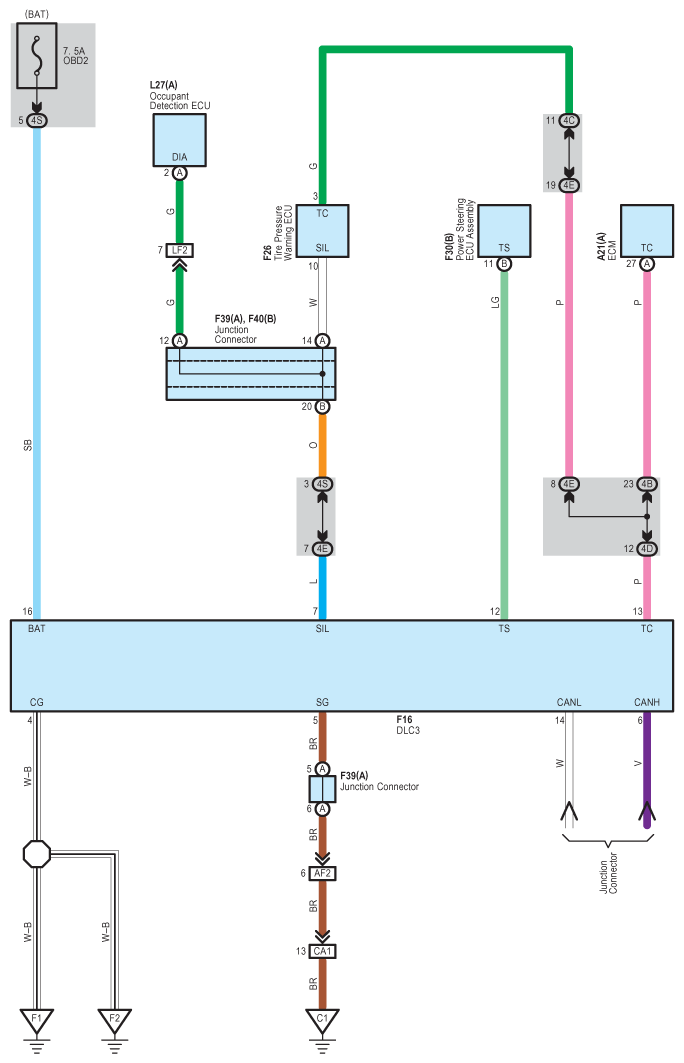

Fig 1: Data Link Connector 3 - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
