Power Source: Notes

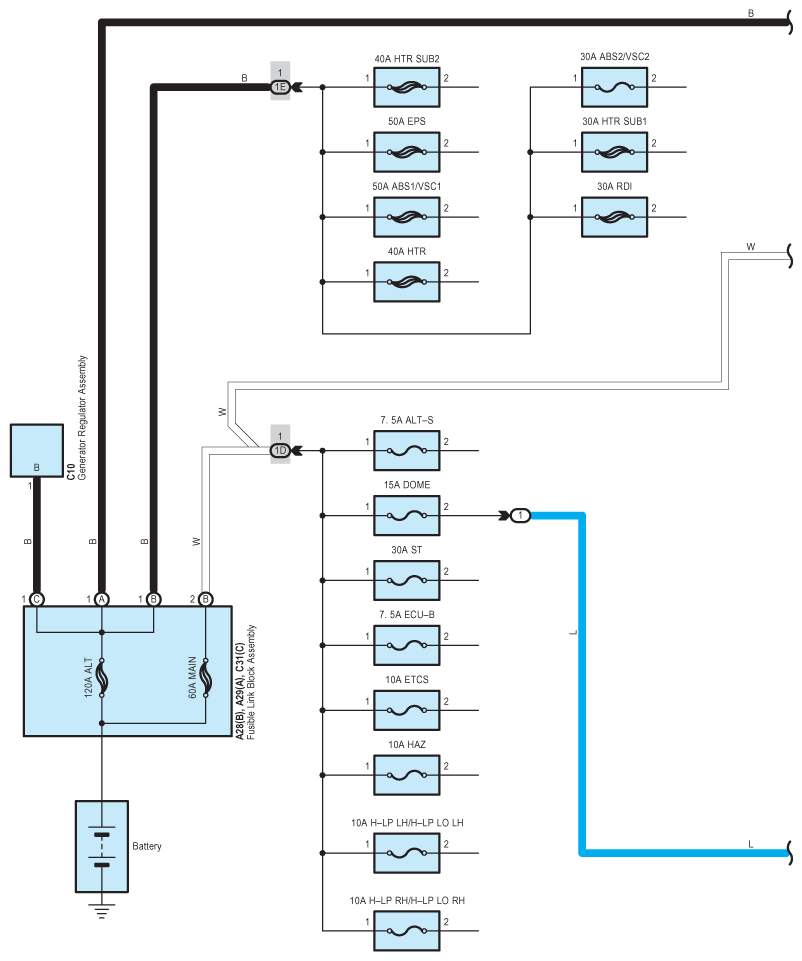

Fig 1: Power Source - Circuit Diagram (1 Of 4)
G07597283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

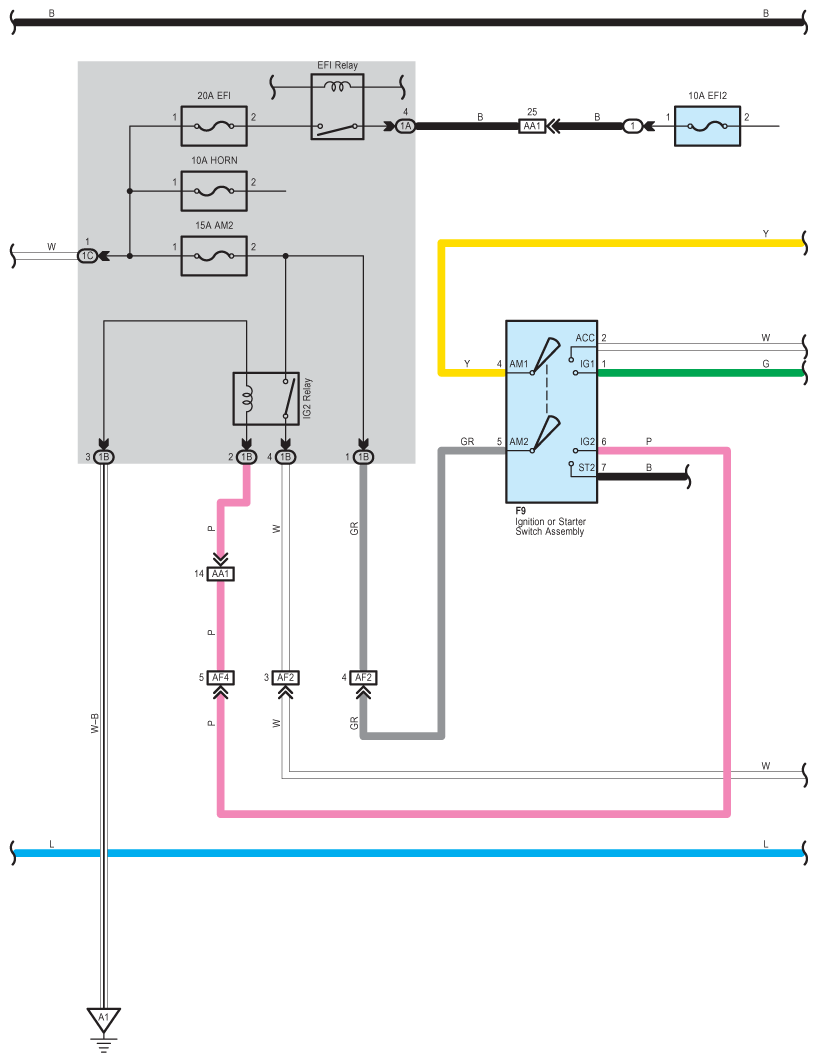

Fig 2: Power Source - Circuit Diagram (2 Of 4)
G07597284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

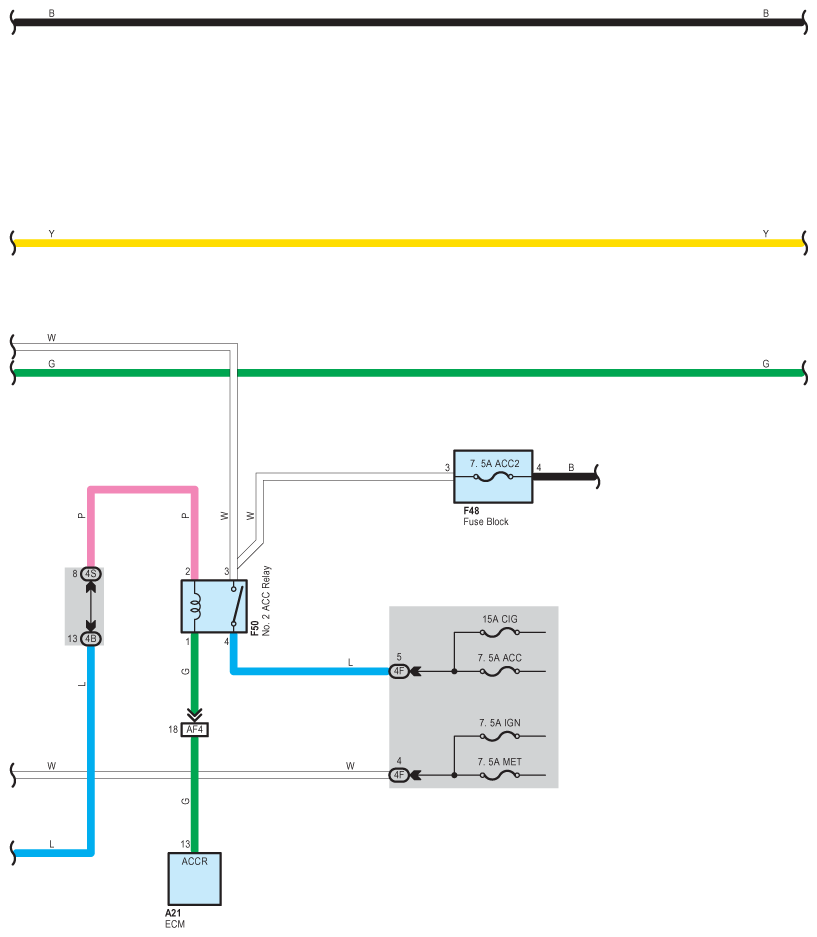

Fig 3: Power Source - Circuit Diagram (3 Of 4)
G07597285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

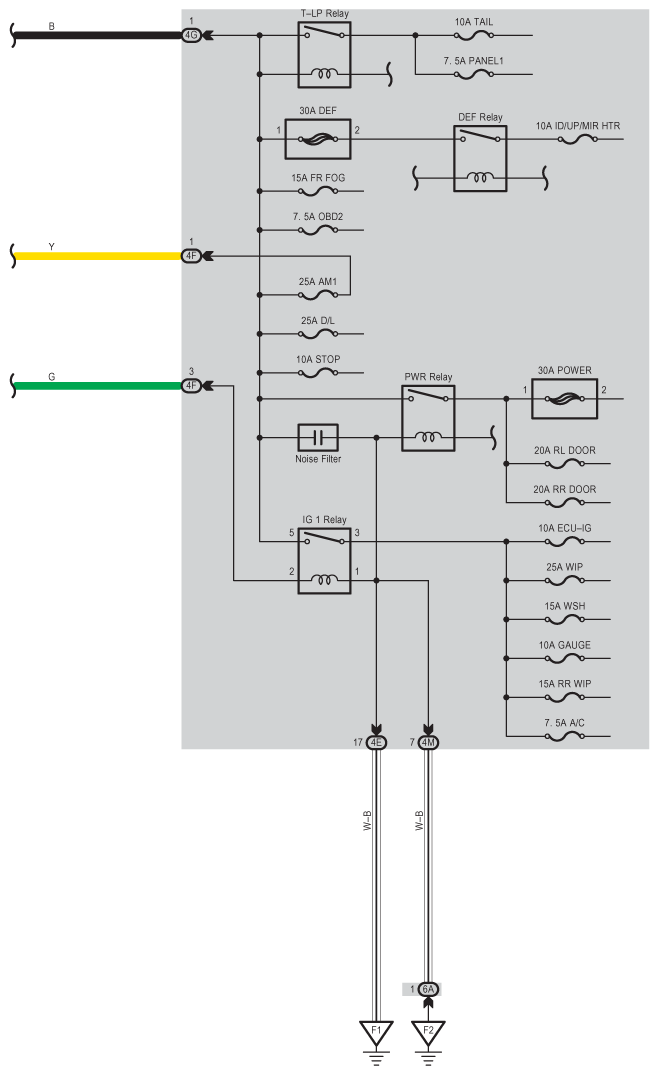

Fig 4: Power Source - Circuit Diagram (4 Of 4)
G07597286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
