Home >> Scion >> 2008 >> xD Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Rear Window Defogger >> Notes

Rear Window Defogger: Notes

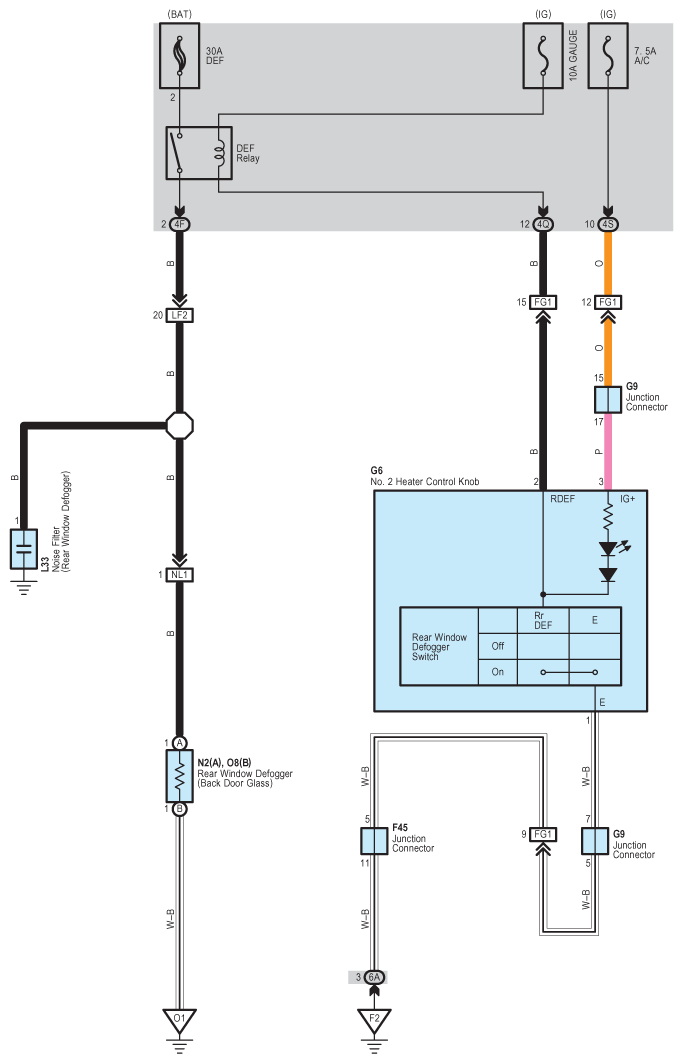

Fig 1: Rear Window Defogger - Circuit Diagram

G07597380

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
