Shift Lock: Notes

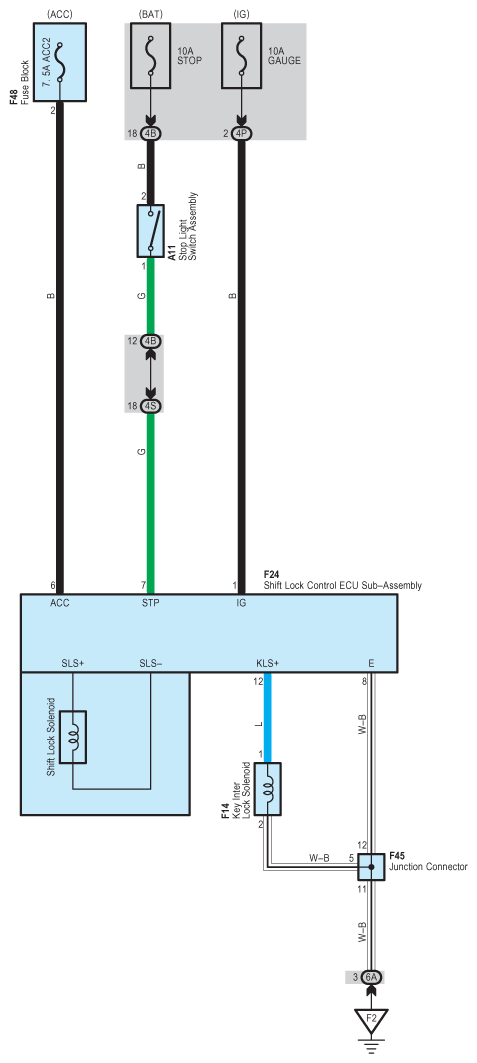

Fig 1: Shift Lock - Circuit Diagram
G07597377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
