Fuel Tank: Components

Fig 1: Fuel Pump Replacement Components With Torque Specifications (1 Of 3)
G05399459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

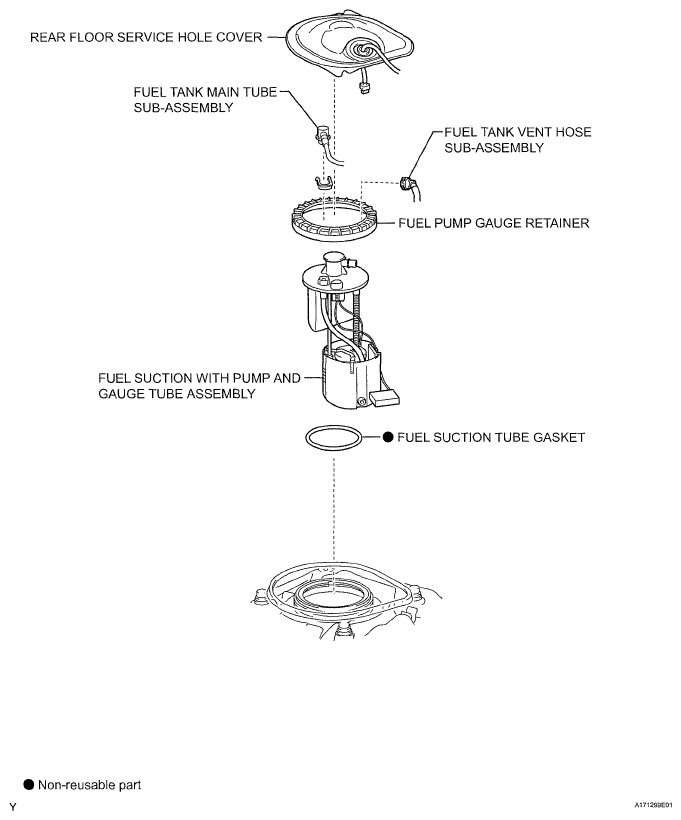

Fig 2: Identifying Fuel Tank Components (2 Of 3)
G05399460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

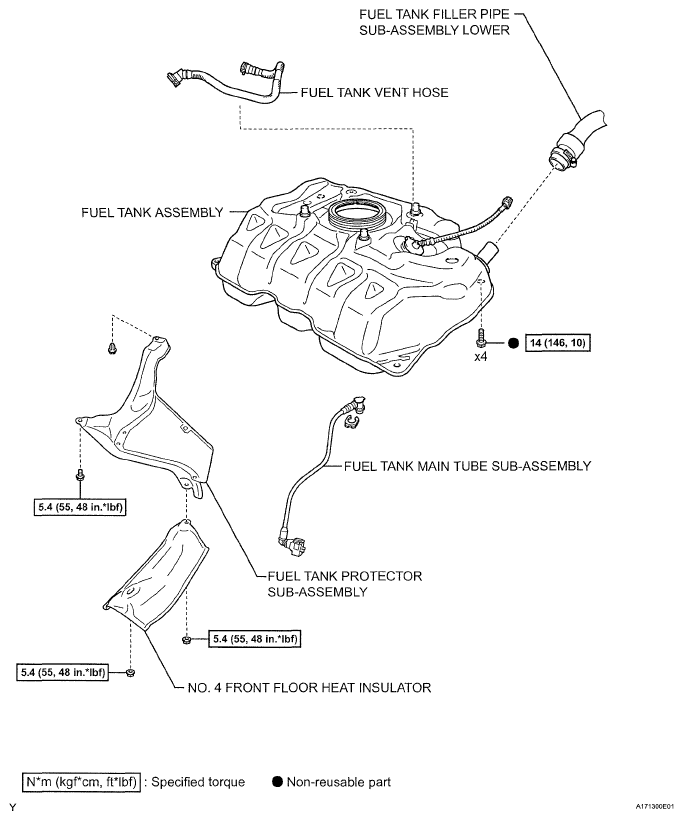

Fig 3: Fuel Tank Replacement Components With Torque Specifications (3 Of 3)
G05399494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
