Automatic Transaxle Unit: Components

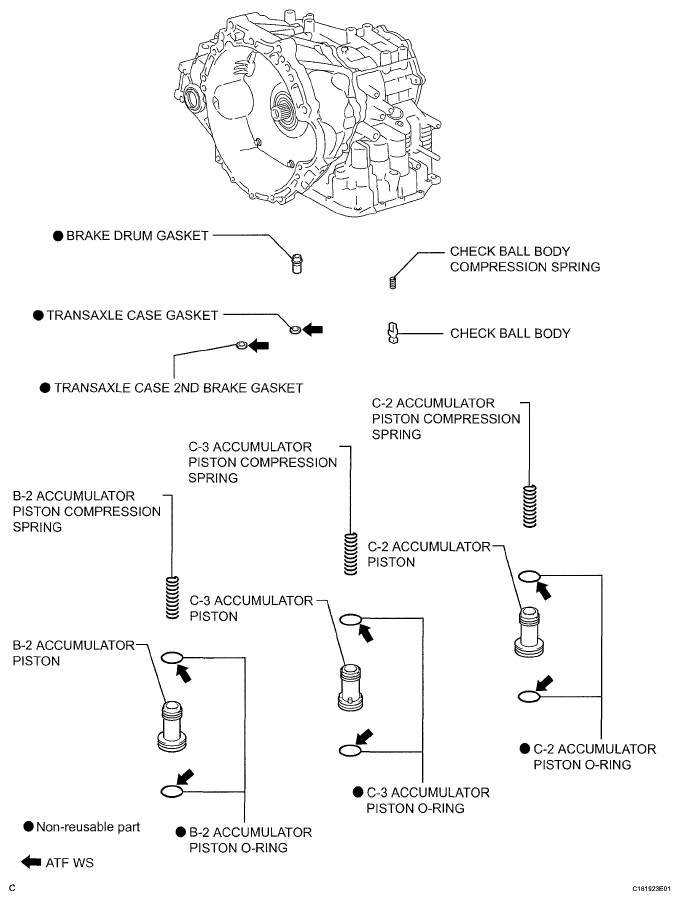

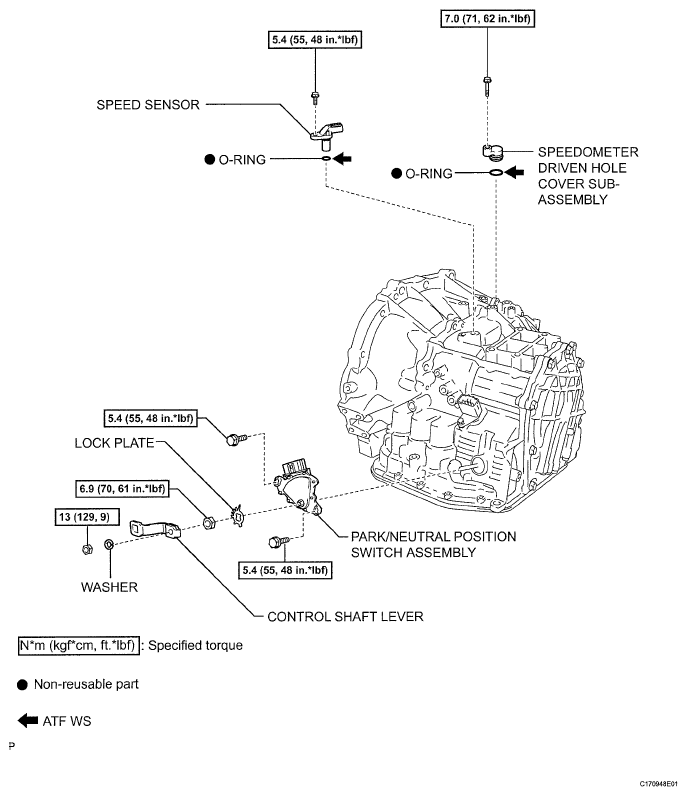

Fig 1: Automatic Transaxle Unit Components With Torque Specifications (1 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

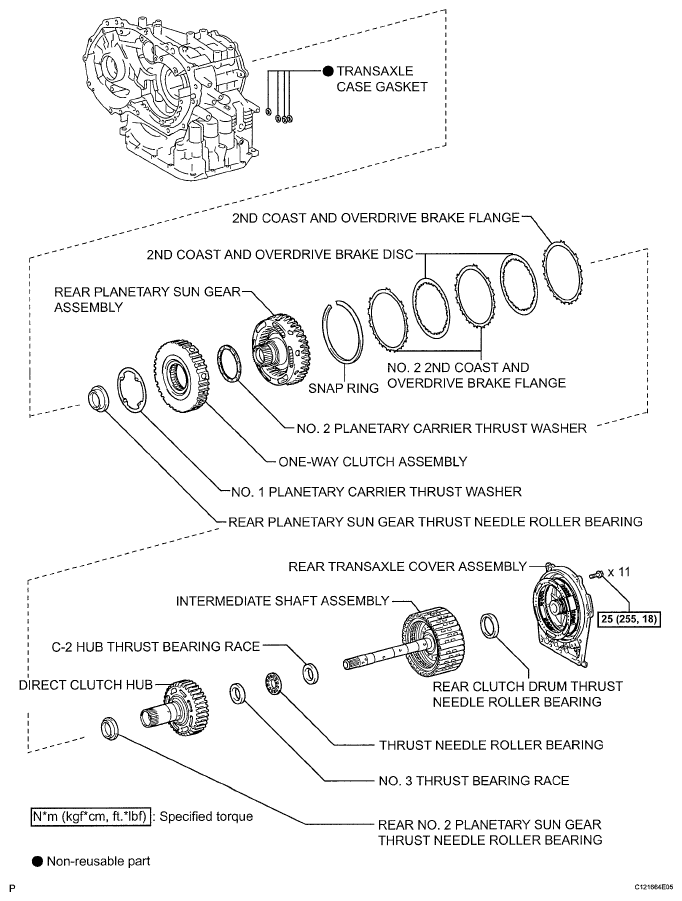

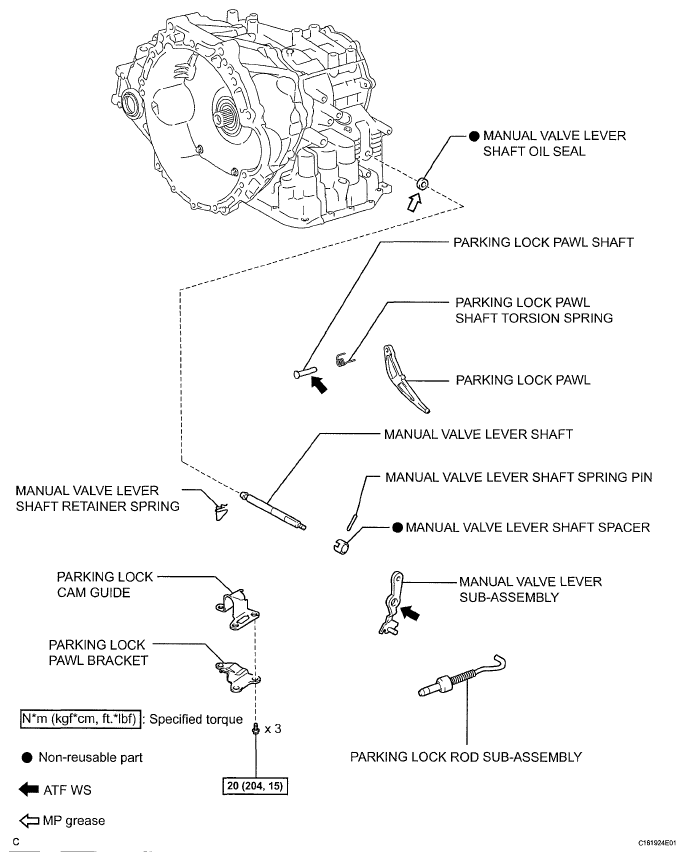

Fig 2: Automatic Transaxle Unit Components With Torque Specifications (2 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

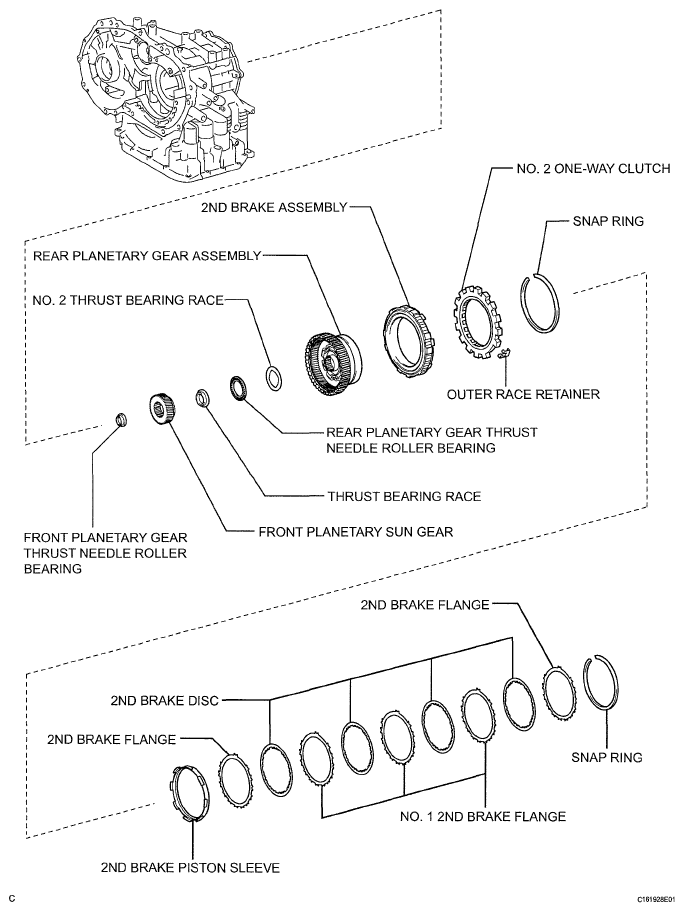

Fig 3: Automatic Transaxle Unit Components With Torque Specifications (3 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

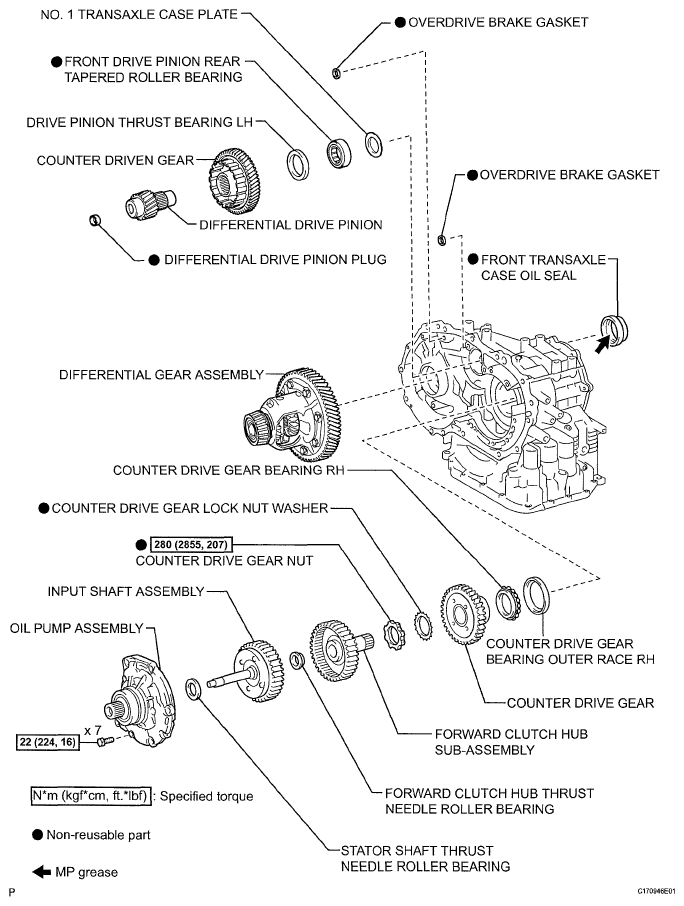

Fig 4: Identifying Automatic Transaxle Unit Components (4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

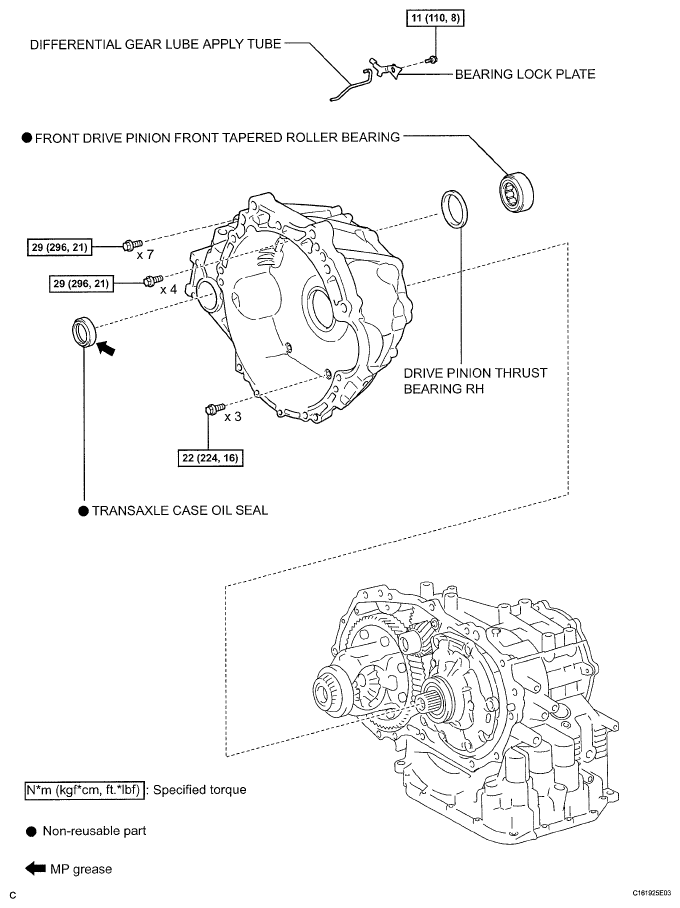

Fig 5: Automatic Transaxle Unit Components With Torque Specification (5 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

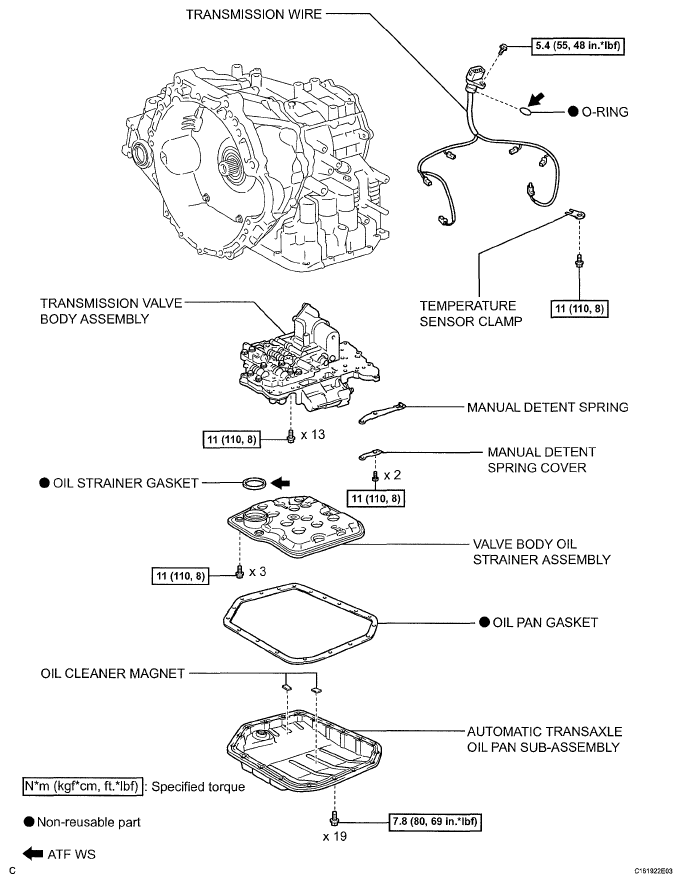

Fig 6: Automatic Transaxle Unit Components With Torque Specifications (6 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

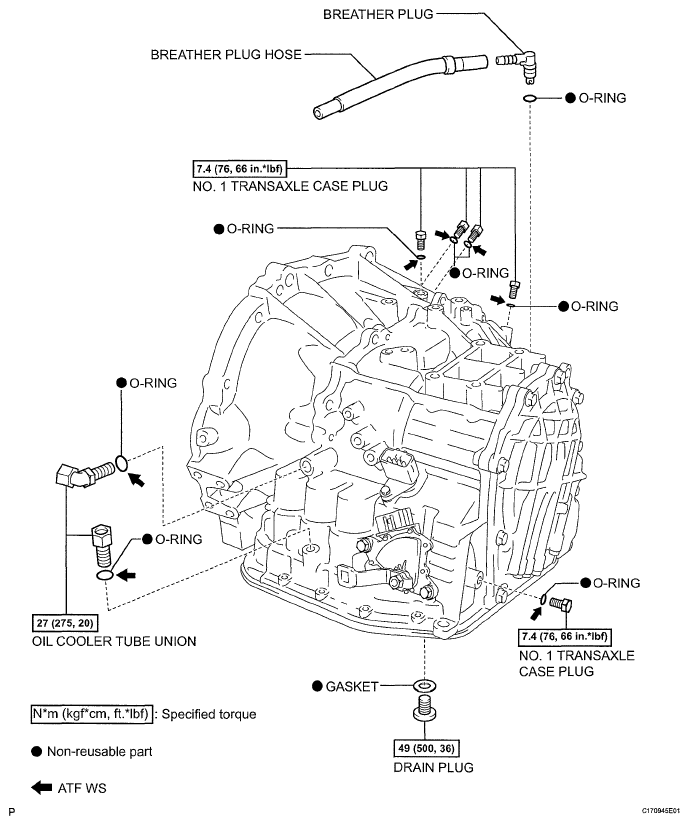

Fig 7: Automatic Transaxle Unit Components With Torque Specifications (7 Of 10)

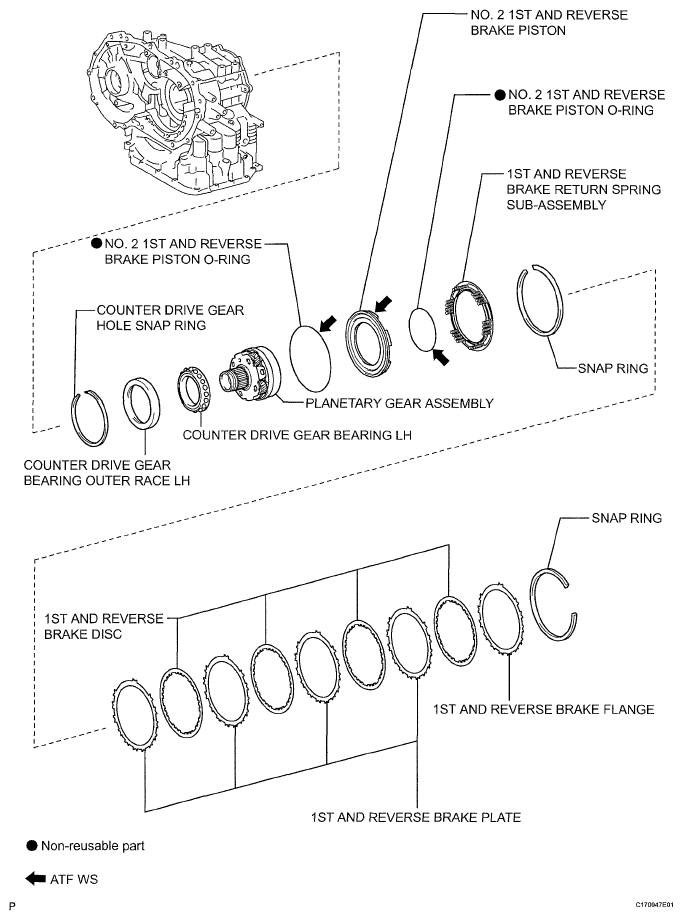

Fig 8: Automatic Transaxle Unit Components With Torque Specification (8 Of 10)

Fig 9: Identifying Automatic Transaxle Unit Components (9 Of 10)

Fig 10: Identifying Automatic Transaxle Unit Components (10 Of 10)
