Home >> Scion >> 2008 >> xD Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> U341E Automatic Transaxle >> Differential Case >> Components

Differential Case: Components

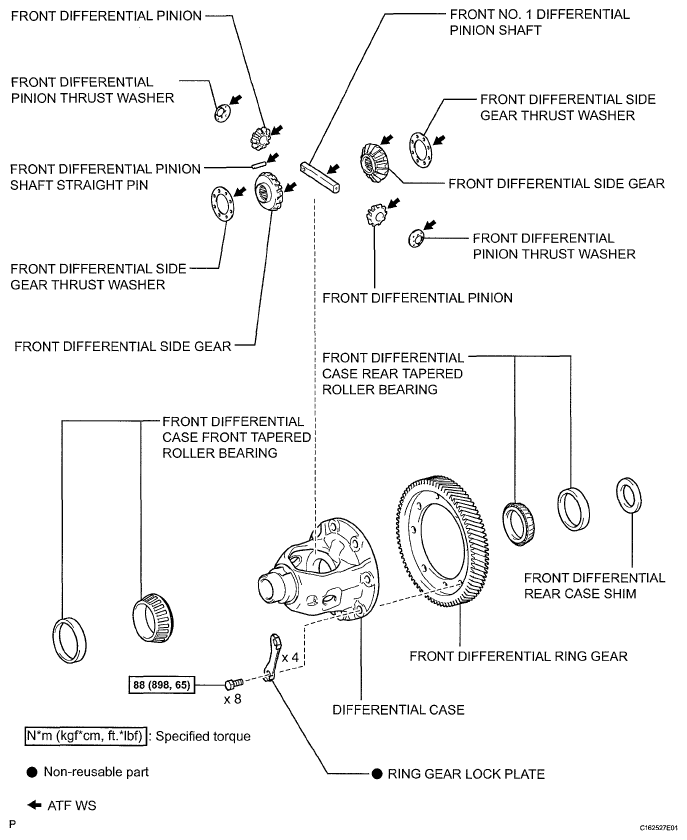

Fig 1: Differential Case Replacement Components With Torque Specifications
G05400388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
