Transaxle Rear Cover: Components

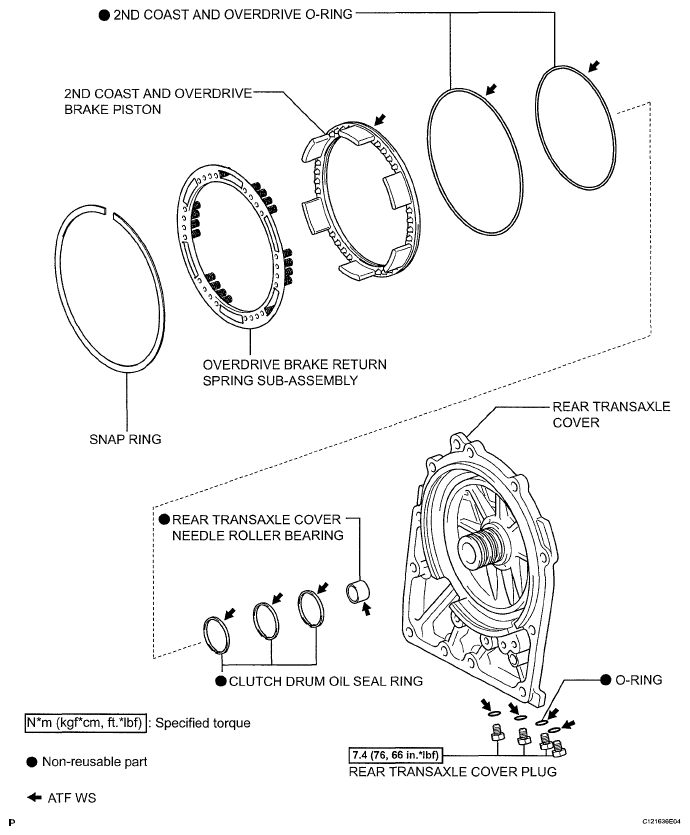

Fig 1: Transaxle Rear Cover Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
