Transmission Control Cable Assembly: Components

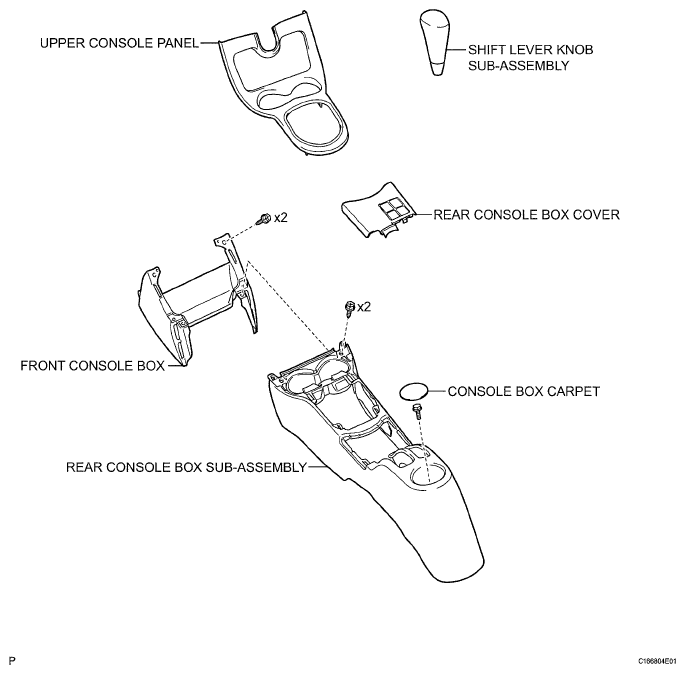

Fig 1: Identifying Transmission Control Cable Assembly Components (1 Of 3)
G05399997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

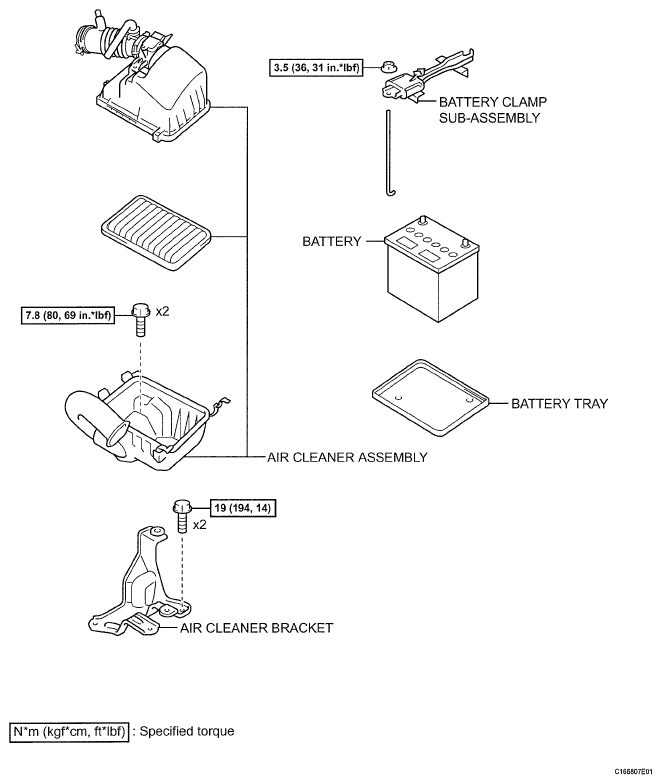

Fig 2: Transmission Control Cable Assembly Replacement Components With Torque Specifications (2 Of 3)
G05400024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

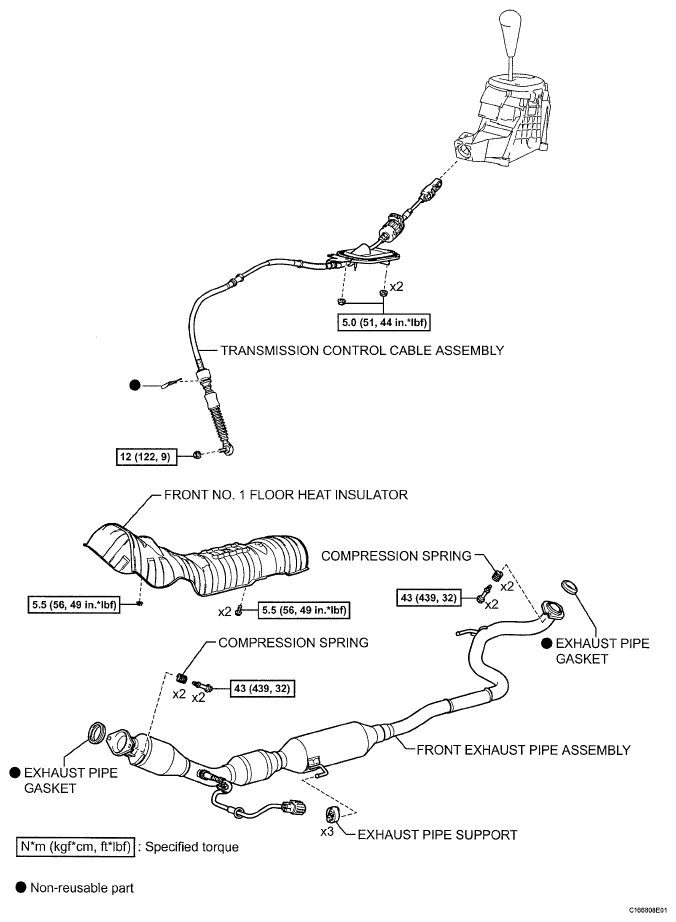

Fig 3: Transmission Control Cable Assembly Replacement Components With Torque Specifications (3 Of 3)
G05400025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
