Transmission Control Cable Assembly: Installation

  1. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Install the transmission control cable assembly onto the control shaft lever with the nut.

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

      Fig 1: Locating Transmission Control Cable Assembly Nut
      G05399969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Fix the transmission control cable assembly onto the control cable bracket with a new clip.
      NOTE: Make sure that the marking on the cable is aligned with the slit in the transmission control cable bracket before installing the cable.
    3. Connect the transmission control cable assembly to the transmission control cable support.
      4. Fig 2: Locating Transmission Control Cable Support
      G04831145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Run the transmission control cable between the transmission control cable support and vehicle body.
    5. Install the transmission control cable assembly with the 3 nuts.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

      Fig 3: Locating Transmission Control Cable Assembly Nuts
      G04831147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

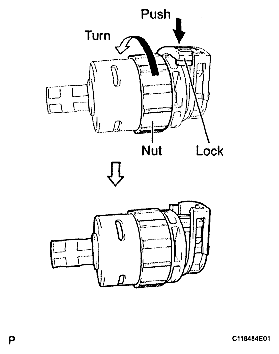

    6. Turn the nut on the transmission control cable assembly and push in the lock.
      Fig 4: Connecting Transmission Control Cable Assembly
      G04831151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Install the transmission control cable assembly onto the shift lever retainer.
      NOTE:
      • Install the cable with the protruding portion of the cable outer facing upward.
      • After installing, check that the lock of the cable outer is protruding beyond portion A-A, as shown in the illustration.
        Fig 5: Identifying Projection Of Transmission Control Cable
        G04831152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Connect the transmission control cable assembly to the transmission floor shift assembly.
      NOTE: Connect the control cable so that the adjusting mechanism lock of the control cable is installed on the left side of the vehicle.
      Fig 6: Locating Transmission Control Cable Assembly Bolt
      G04831143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR
    1. Install the front No. 1 floor heat insulator with the 2 bolts and the nut.

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

      Fig 7: Locating Floor Heat Insulator Bolts
      G05400026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL FRONT EXHAUST PIPE ASSEMBLY  (See INSTALLATION )
  4. INSTALL AIR CLEANER BRACKET  (See INSTALLATION )
  5. INSTALL AIR CLEANER ASSEMBLY  (See INSTALLATION )
  6. REMOVE BATTERY TRAY
  7. INSTALL BATTERY  (See INSTALLATION )
  8. INSPECT SHIFT LEVER POSITION  (See ON-VEHICLE INSPECTION  )
  9. ADJUST SHIFT LEVER POSITION  (See INSTALLATION  )
  10. INSTALL FRONT CONSOLE BOX  (See INSTALLATION )
  11. INSTALL REAR CONSOLE BOX SUB-ASSEMBLY  (See INSTALLATION )
  12. INSTALL CONSOLE BOX CARPET  (See INSTALLATION )
  13. INSTALL REAR CONSOLE BOX COVER  (See INSTALLATION )
  14. INSTALL UPPER CONSOLE PANEL  (See INSTALLATION )
  15. INSPECT FOR EXHAUST GAS LEAK
