Home >> Scion >> 2008 >> xD Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> U341E Automatic Transaxle >> Valve Body >> Components

Valve Body: Components

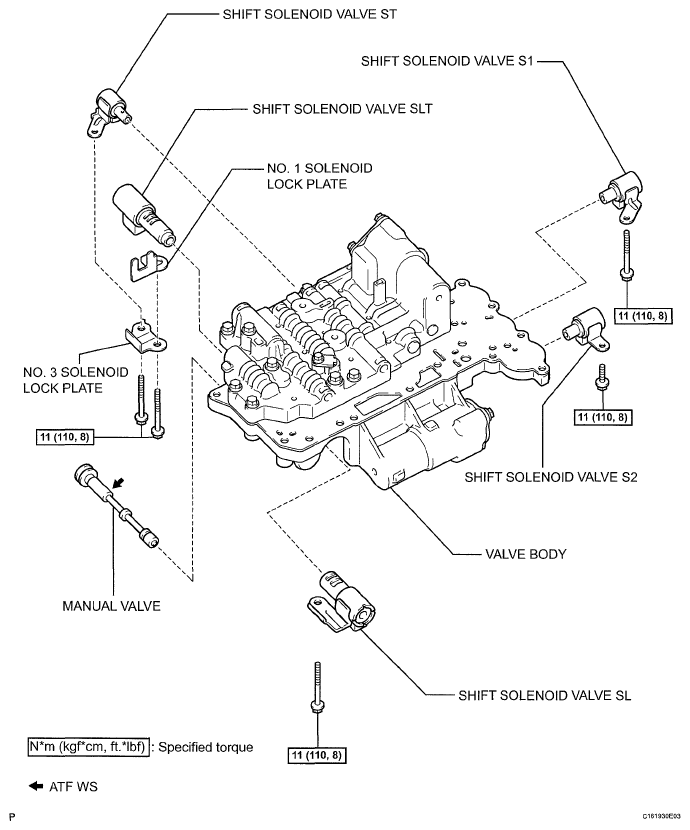

Fig 1: Valve Body Replacement Components With Torque Specifications
G05400372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
