Home >> Scion >> 2009 >> tC Automatic >> Repair and Diagnosis >> Body & Frame >> Mirrors >> Outer Rear View Mirror >> Components

Outer Rear View Mirror: Components

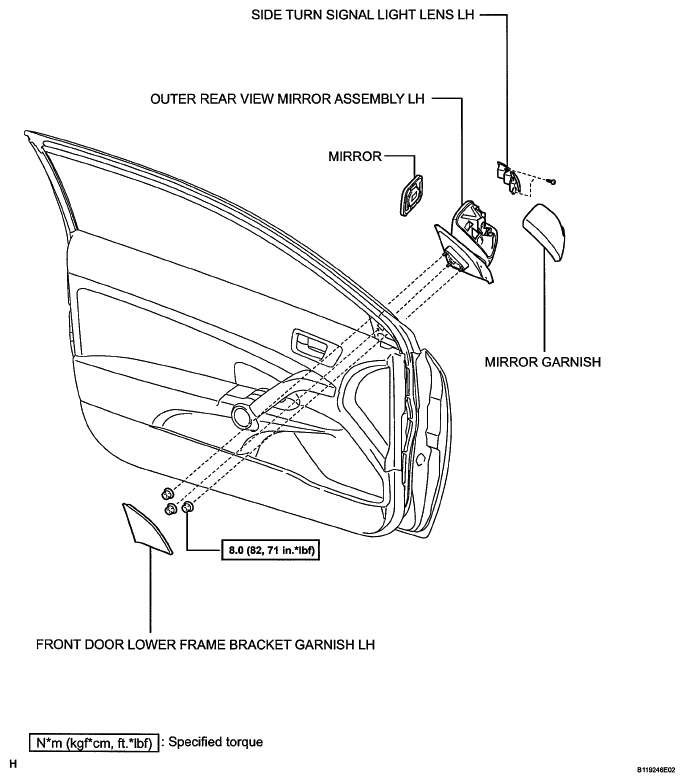

Fig 1: Outer Rear View Mirror Replacement Components With Torque Specifications
G05541849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
