Power Mirror Control System: Inspection

  1. INSPECT OUTER MIRROR SWITCH ASSEMBLY
    1. Select L on the left/right adjustment switch: Measure the resistance of the switch.

      Standard resistance

      RESISTANCE SPECIFICATION

      Tester Connection Switch Condition Specified Condition
      4 (VL) - 8 (B)
      6 (M+) - 7 (E)      		 UP Below 1 Ω
      4 (VL) - 7 (E)
      6 (M+) - 8 (B)      		 DOWN Below 1 Ω
      5 (HL) - 8 (B)
      6 (M+) - 7 (E)      		 LEFT Below 1 Ω
      5 (HL) - 7 (E)
      6 (M+) - 8 (B)      		 RIGHT Below 1 Ω

      If the result is not as specified, replace the switch assembly.

    2. Select R on the left/right adjustment switch: Measure the resistance of the switch.

      Standard resistance

      RESISTANCE SPECIFICATION

      Tester Connection Switch Condition Specified Condition
      3 (VR) - 8 (B)
      6 (M+) - 7 (E)      		 UP Below 1 Ω
      3 (VR) - 7 (E)
      6 (M+) - 8 (B)      		 DOWN Below 1 Ω
      2 (HR) - 8 (B)
      6 (M+) - 7 (E)      		 LEFT Below 1 Ω
      2 (HR) - 7 (E)
      6 (M+) - 8 (B)      		 RIGHT Below 1 Ω

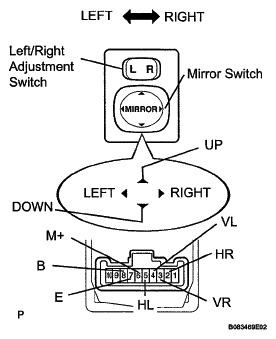

      Fig 1: Inspecting Outer Mirror Switch Assembly
      G05541843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      If the result is not as specified, replace the switch assembly.

  2. INSPECT OUTER REAR VIEW MIRROR ASSEMBLY LH
    1. Disconnect the mirror connector.
    2. Apply battery voltage to the mirror and check the operation of the mirror.

      OK

      MIRROR OPERATION CHART

      Measurement Condition Mirror Condition
      Battery positive (+) → 3 (MV)
      Battery negative (-) → 4 (COM)      		 Turns upward (A)
      Battery positive (+) → 4 (COM)
      Battery negative (-) → 3 (MV)      		 Turns downward (B)
      Battery positive (+) → 5 (MH)
      Battery negative (-) → 4 (COM)      		 Turns left (C)
      Battery positive (+) → 4 (COM)
      Battery negative (-) → 5 (MH)      		 Turns right (D)

      If the result is not as specified, replace the mirror assembly.

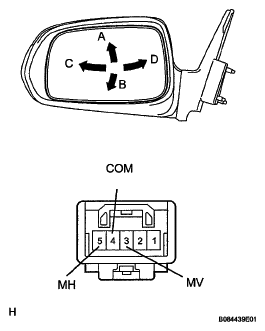

      Fig 2: Inspecting Outer Rear View Mirror Assembly LH
      G05541844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSPECT OUTER REAR VIEW MIRROR ASSEMBLY RH
    1. Disconnect the mirror connector.
    2. Apply battery voltage to the mirror and check the operation of the mirror.

      OK

      MIRROR OPERATION CHART

      Measurement Condition Mirror Condition
      Battery positive (+) → 3 (MV)
      Battery negative (-) → 4 (COM)      		 Turns upward (A)
      Battery positive (+) → 4 (COM)
      Battery negative (-) → 3 (MV)      		 Turns downward (B)
      Battery positive (+) → 5 (MH)
      Battery negative (-) → 4 (COM)      		 Turns left (C)
      Battery positive (+) → 4 (COM)
      Battery negative (-) → 5 (MH)      		 Turns right (D)

      If the result is not as specified, replace the mirror assembly.

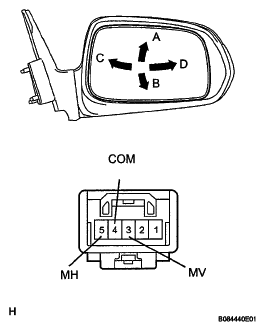

      Fig 3: Inspecting Outer Rear View Mirror Assembly RH
      G05541845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
