Quarter Window Glass: Components

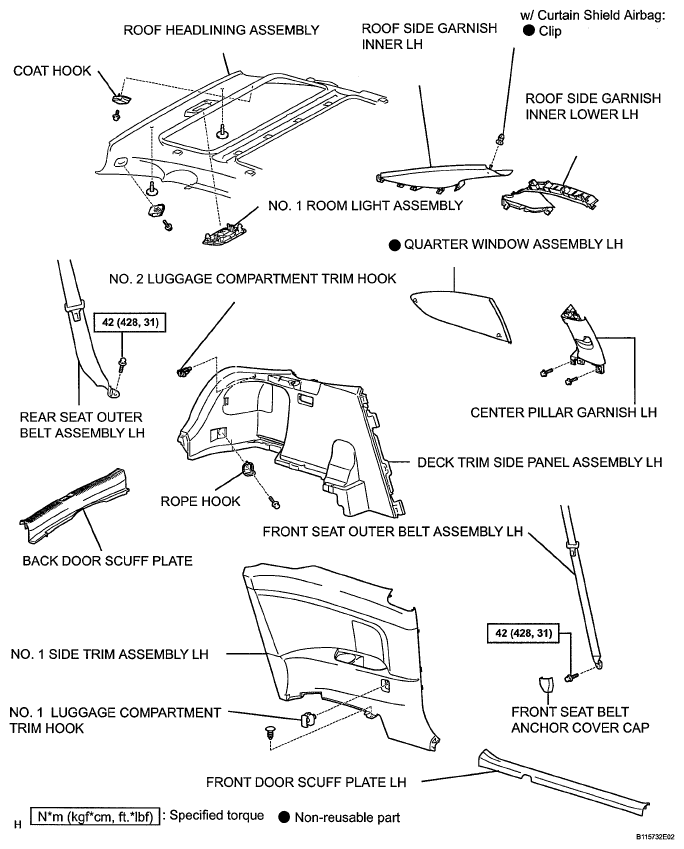

Fig 1: Quarter Window Glass Replacement Components With Torque Specifications (1 Of 2)
G05541834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Quarter Window Glass Replacement Components With Torque Specifications (2 Of 2)
G05541835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
