OEM System Circuits: Charging: Notes

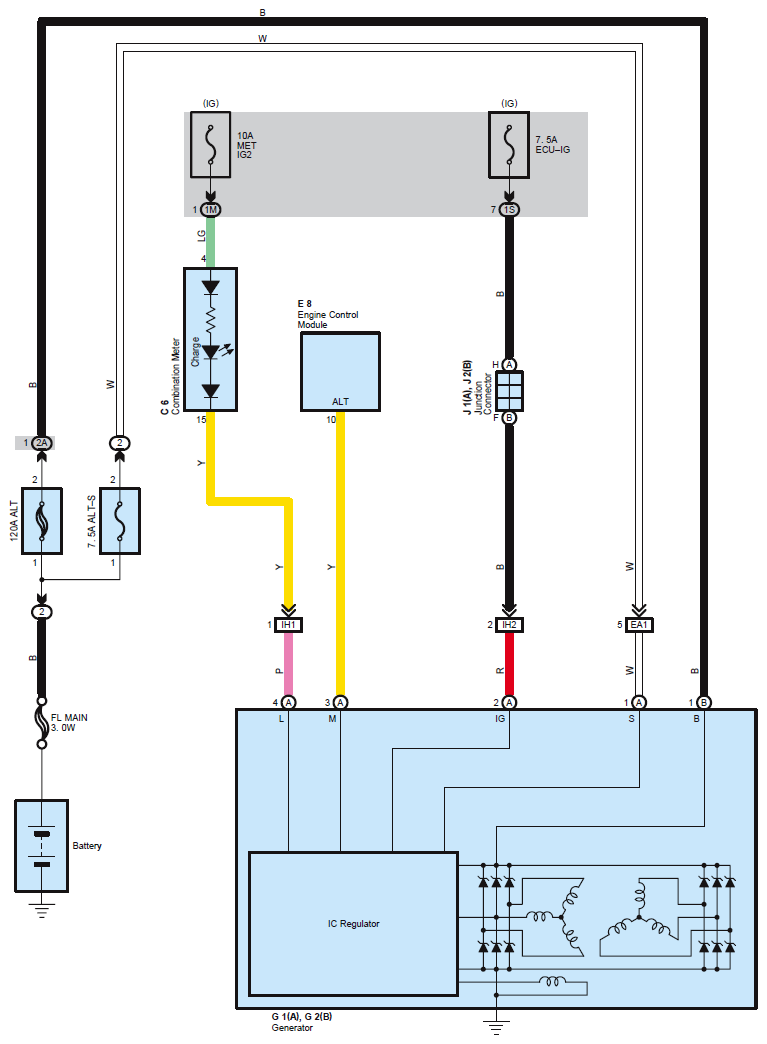

Fig 1: Charging - Circuit Diagram
G07604520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
