OEM System Circuits: Illumination: Notes

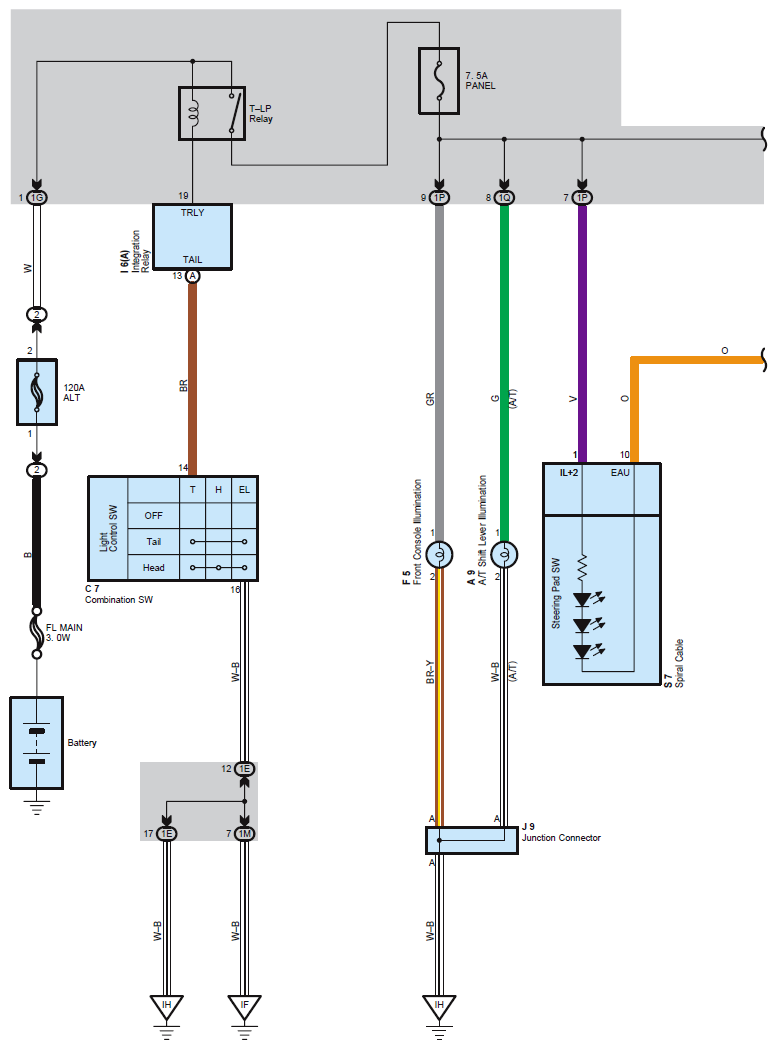

Fig 1: Illumination - Circuit Diagram (1 Of 2)
G07604537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

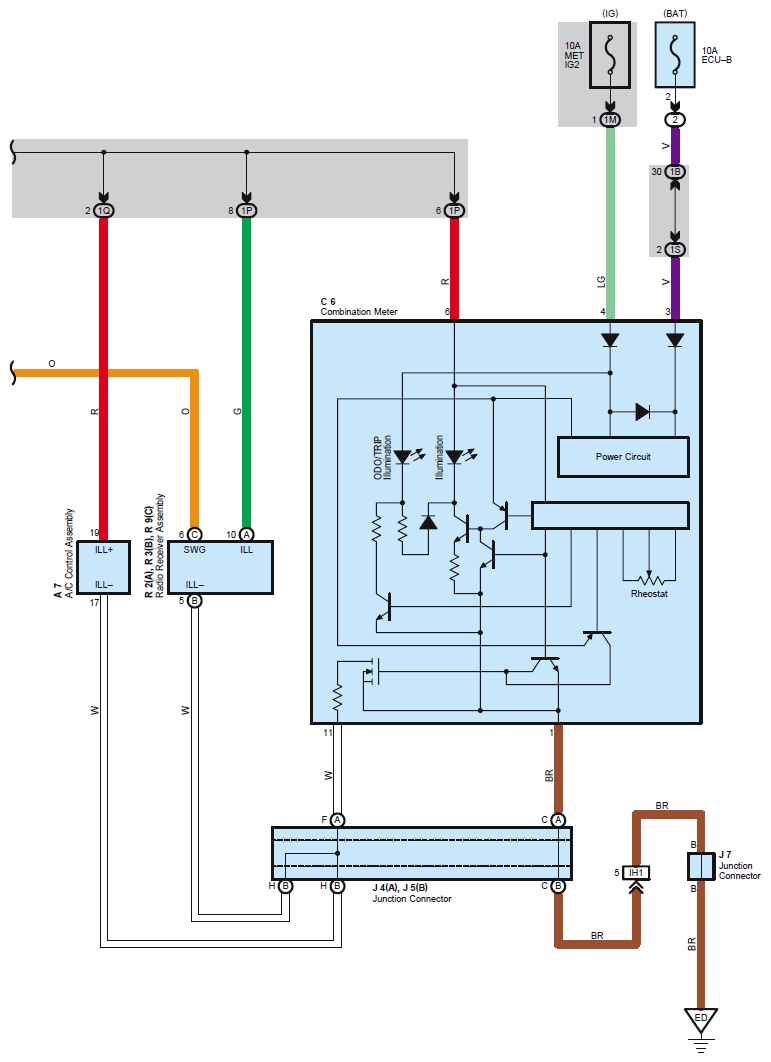

Fig 2: Illumination - Circuit Diagram (2 Of 2)
G07604538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
