Tire Pressure Warning System: Notes

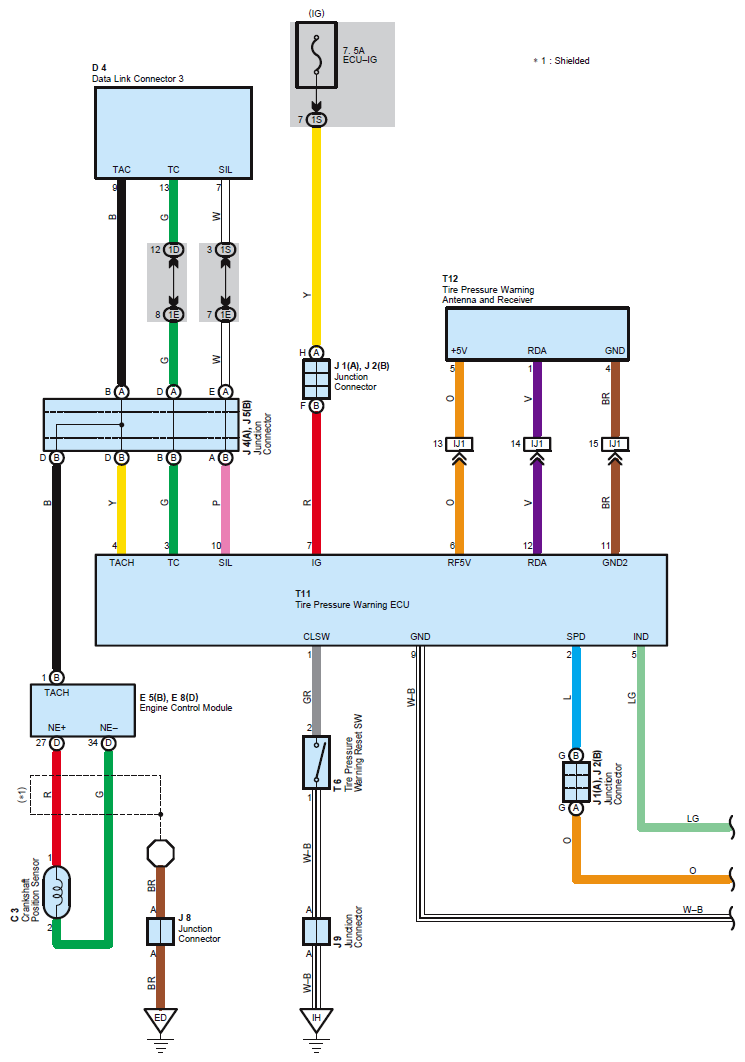

Fig 1: Tire Pressure Warning System - Circuit Diagram (1 Of 2)
G07604569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

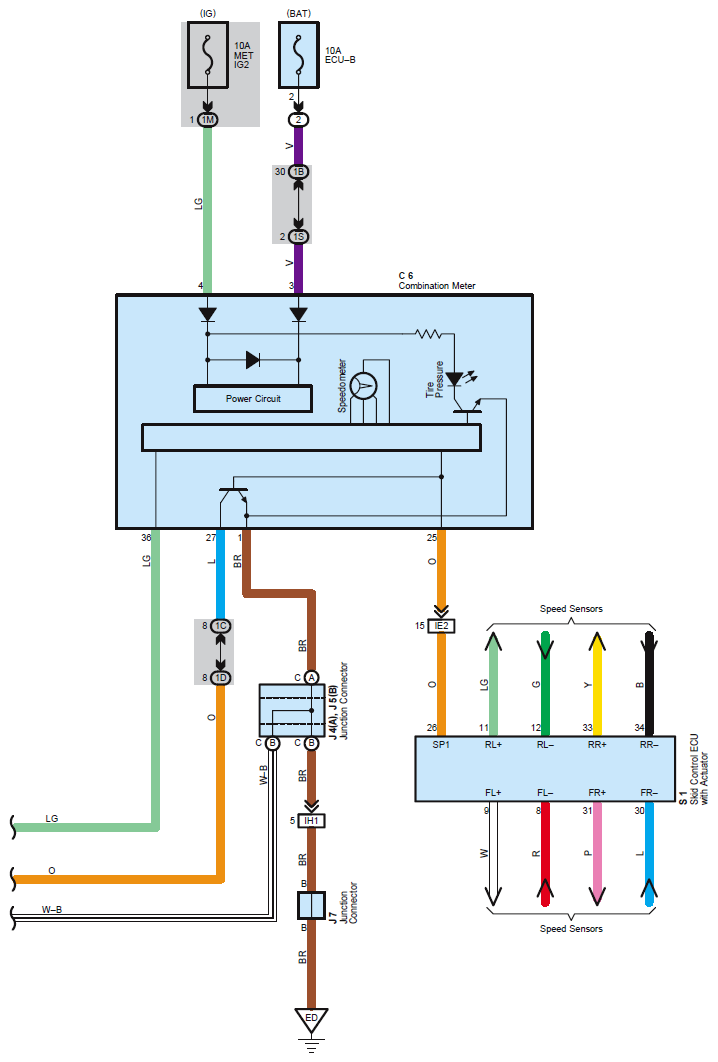

Fig 2: Tire Pressure Warning System - Circuit Diagram (2 Of 2)
G07604570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
