Auxiliary Emission Control Systems: Canister: Components

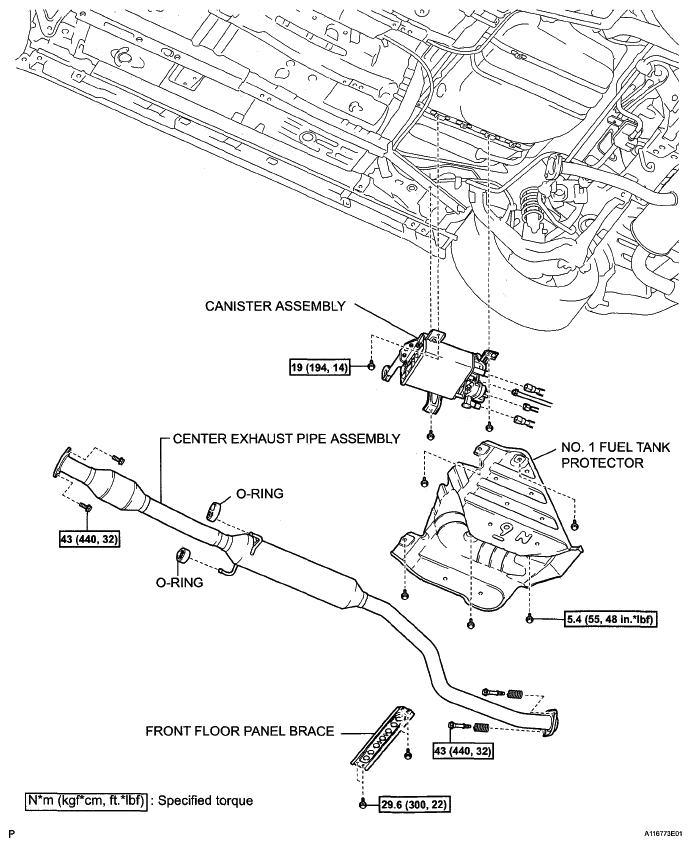

Fig 1: Canister Replacement Components With Torque Specifications (1 Of 2)
G05538541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

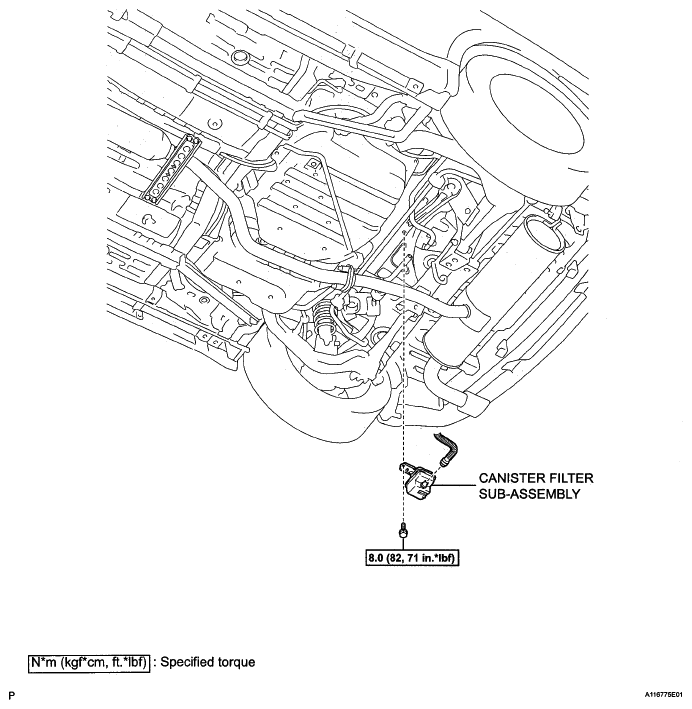

Fig 2: Canister Replacement Components With Torque Specifications (2 Of 2)
G05538542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
