Home >> Scion >> 2009 >> tC Automatic >> Repair and Diagnosis >> Engine Mechanical >> Auxiliary Emission Control Systems >> PCV Valve >> Components

PCV Valve: Components

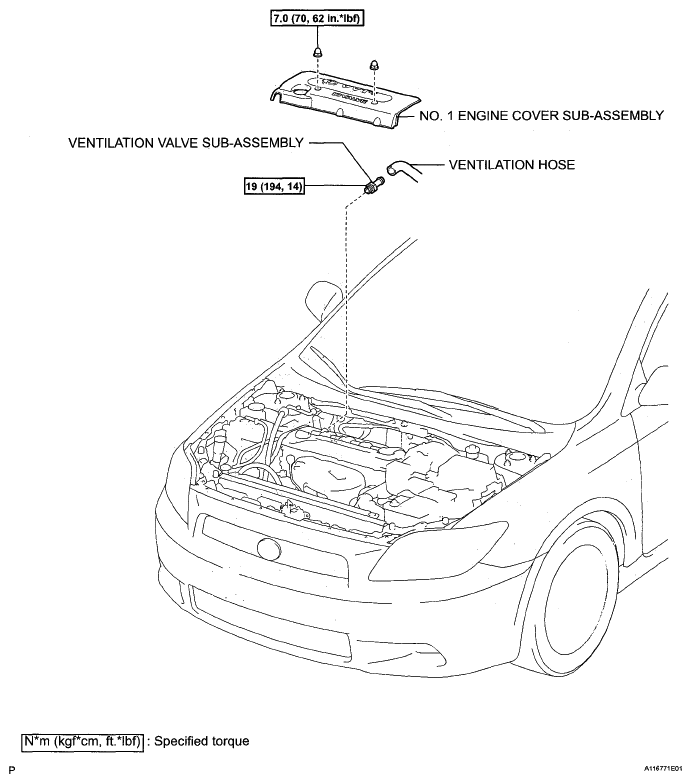

Fig 1: Ventilation Valve Replacement Components With Torque Specifications
G05538577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
