Fuel Pump Control Circuit: Wiring Diagram

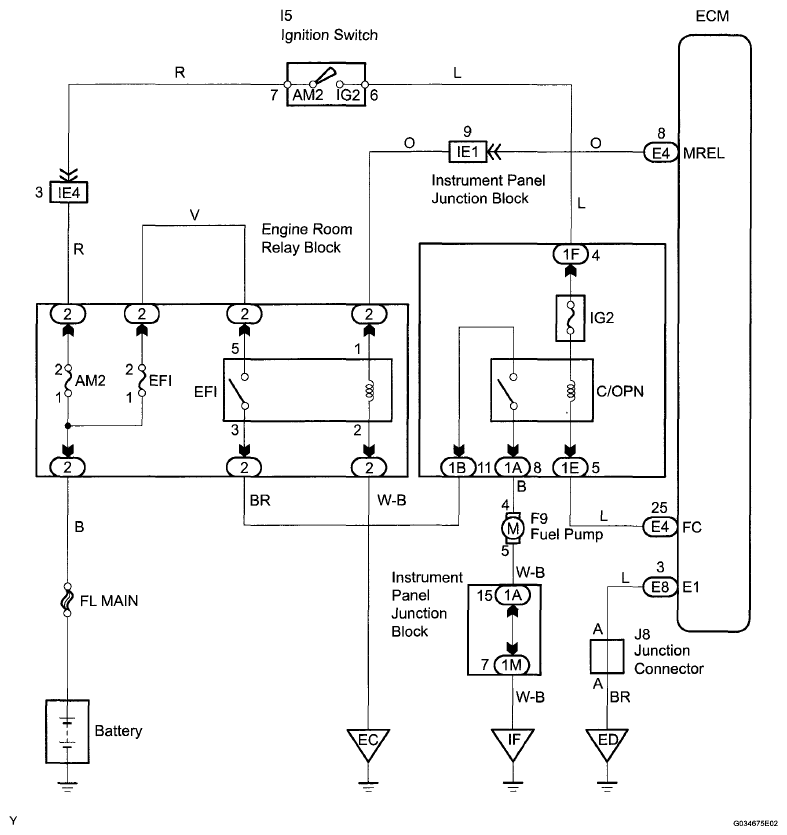

Fig 1: Fuel Pump Control - Wiring Diagram

G06276462

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
