Fuel Pump: Components

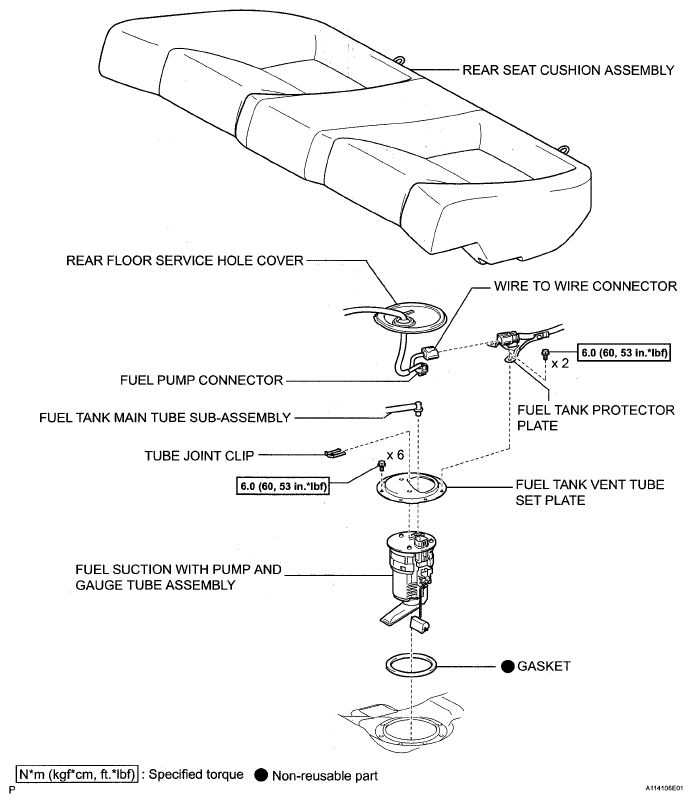

Fig 1: Fuel Pump And Replacement Components With Torque Specifications (1 Of 2)
G05538465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

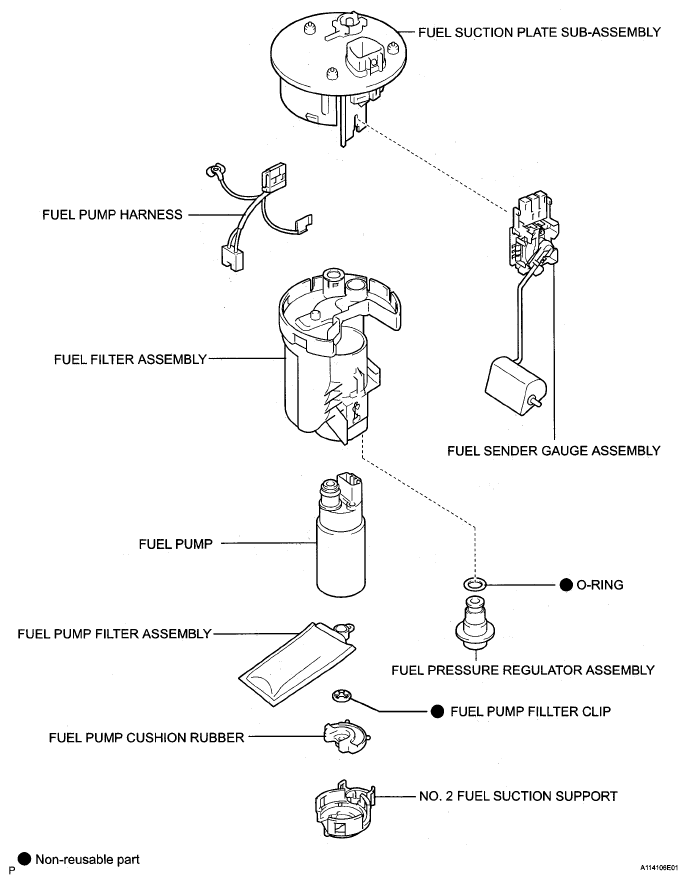

Fig 2: Identifying Fuel Pump And Components (2 Of 2)
G05538466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
