Home >> Scion >> 2009 >> tC Automatic >> Repair and Diagnosis >> Engine Performance >> Ignition System >> 2AZ-FE Ignition >> Ignition Coil >> Components

Ignition Coil: Components

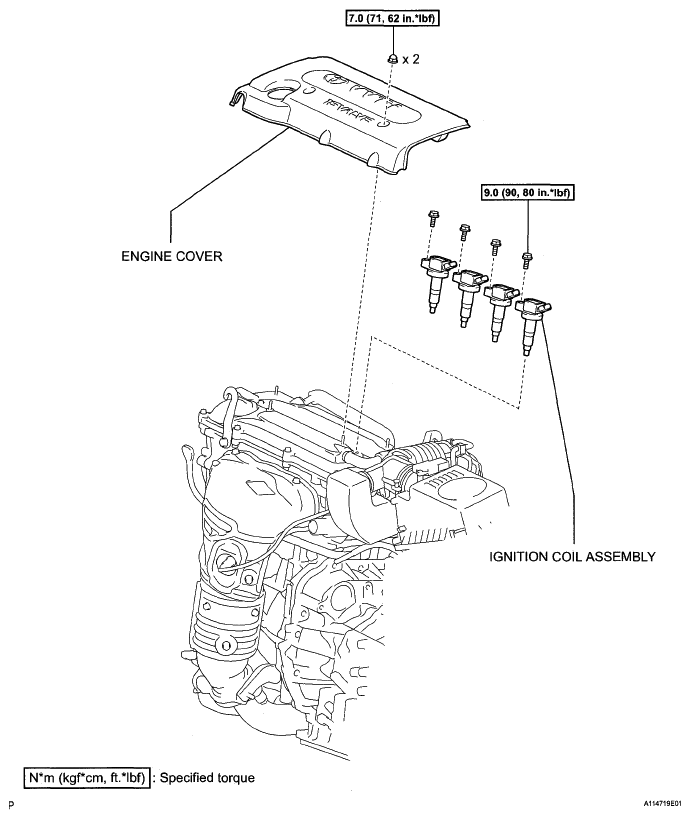

Fig 1: Ignition Coil Replacement Components With Torque Specifications

G05538681

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
