Front Shock Absorber With Coil Spring: Components

Fig 1: Front Shock Absorber With Coil Spring Replacement Components With Torque Specifications (1 Of 2)
G05540075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

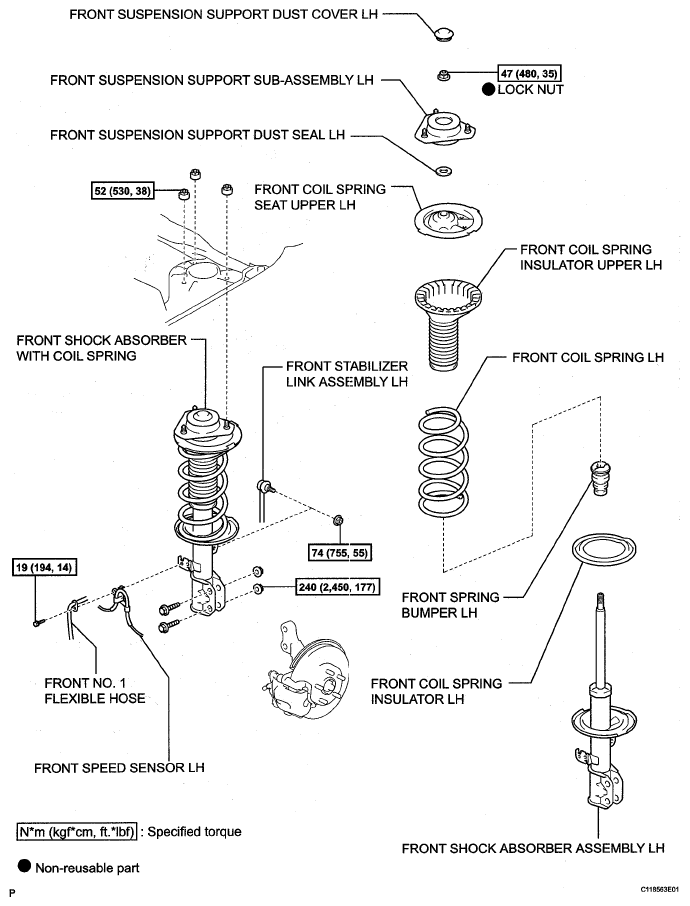

Fig 2: Front Shock Absorber With Coil Spring Replacement Components With Torque Specifications (2 Of 2)
G05540076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
