OEM System Circuits: Headlight: Notes

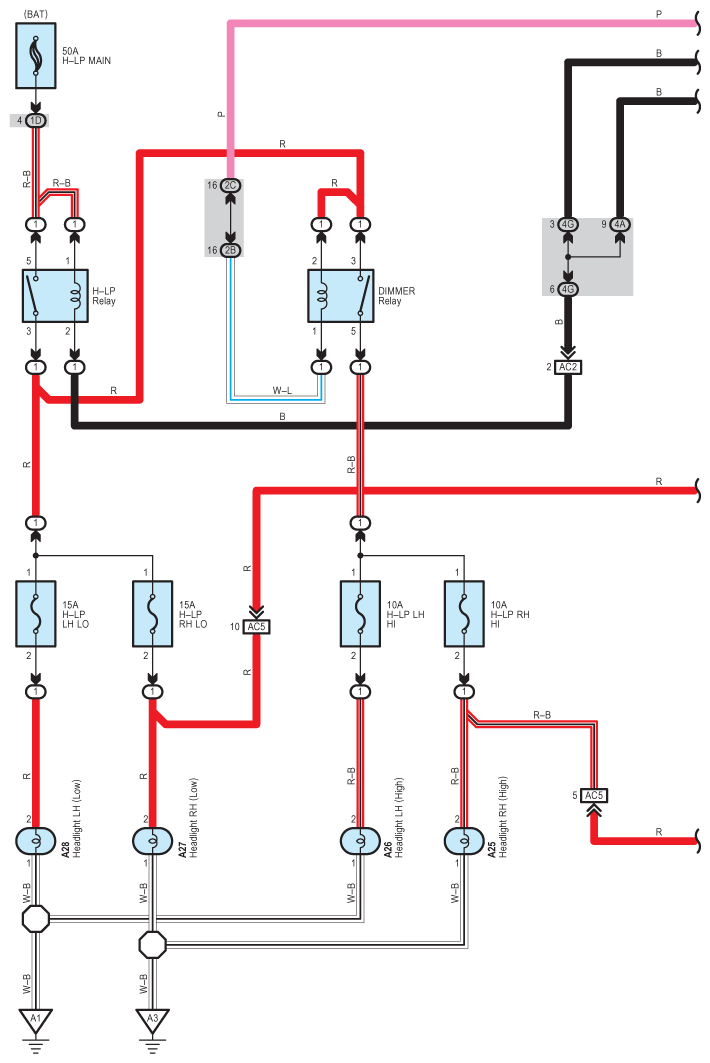

Fig 1: Headlight - Circuit Diagram (1 Of 2)
G07601133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

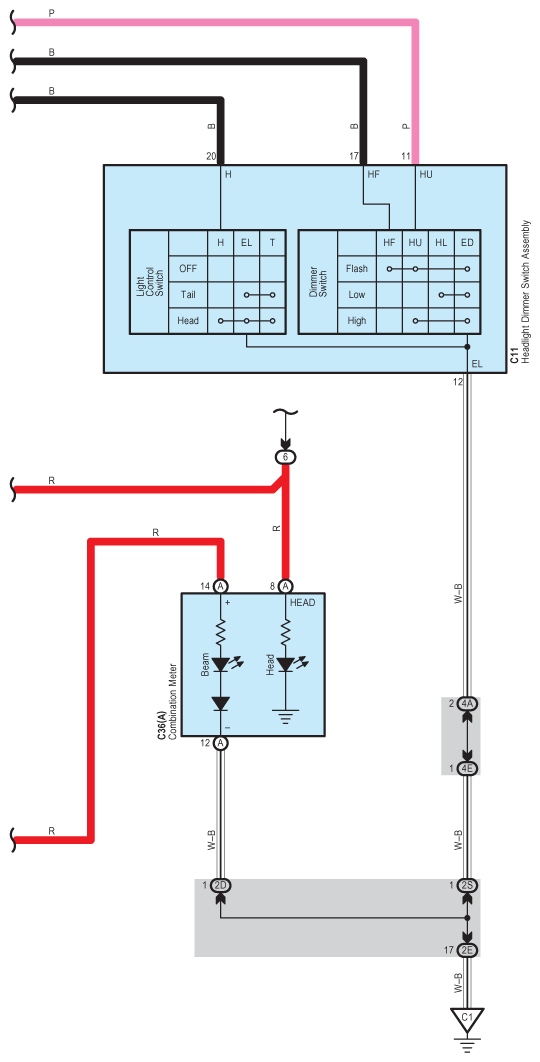

Fig 2: Headlight - Circuit Diagram (2 Of 2)
G07601134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
