Lower Instrument Panel: Components

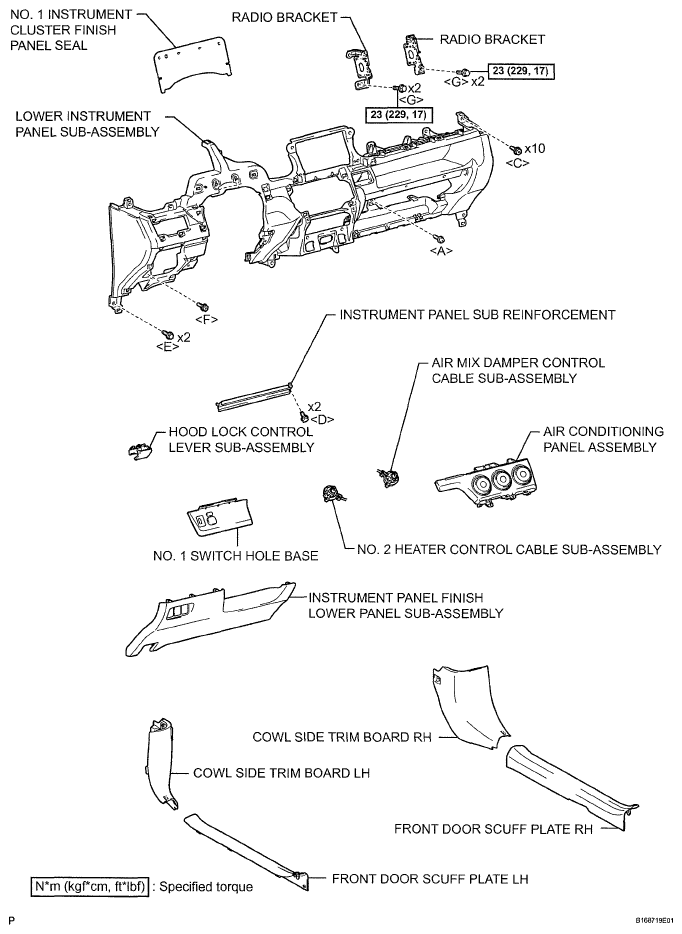

Fig 1: Identifying Lower Instrument Panel Components (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

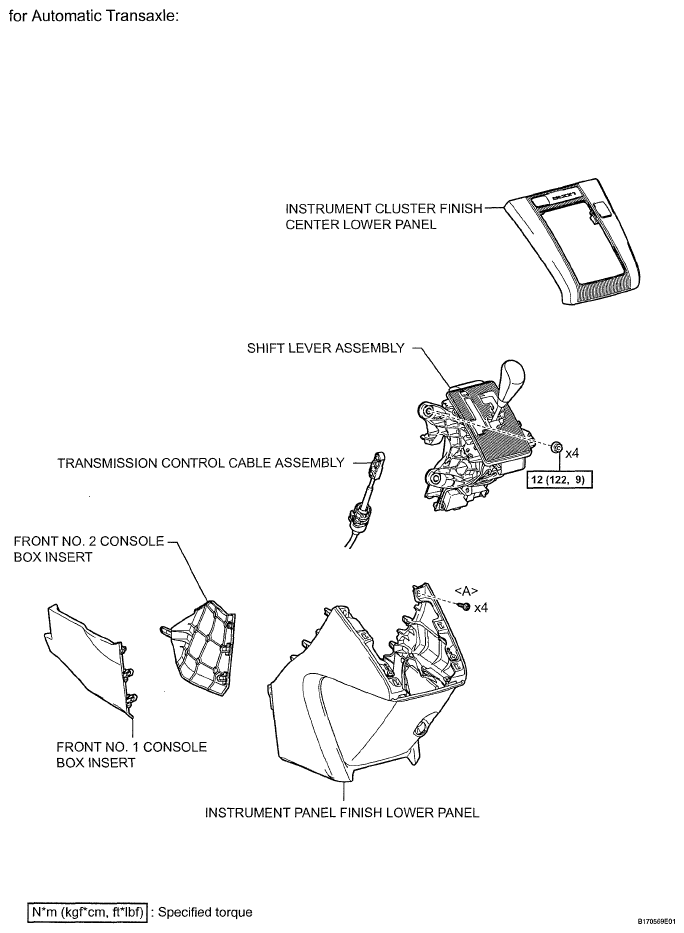

Fig 2: Lower Instrument Panel Replacement Components With Torque Specifications (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

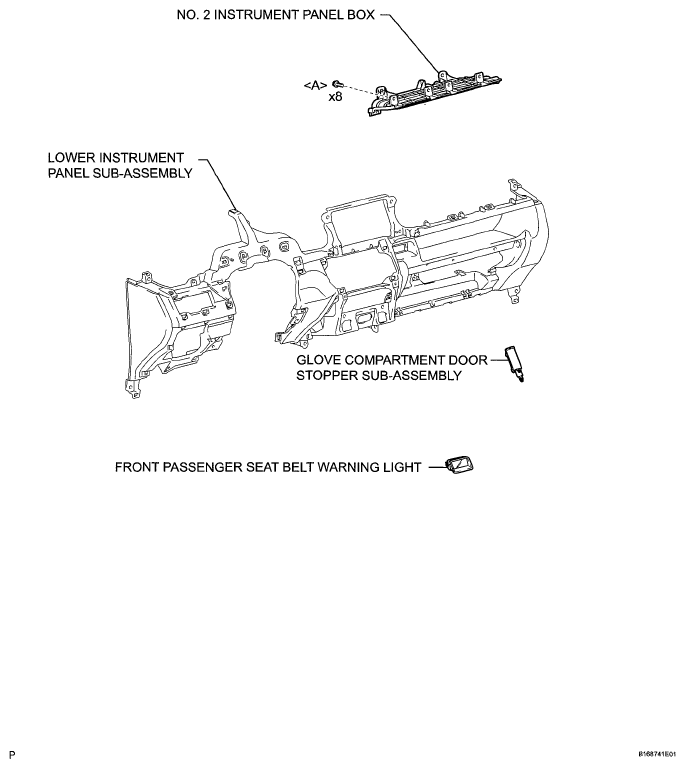

Fig 3: Lower Instrument Panel Replacement Components With Torque Specifications (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

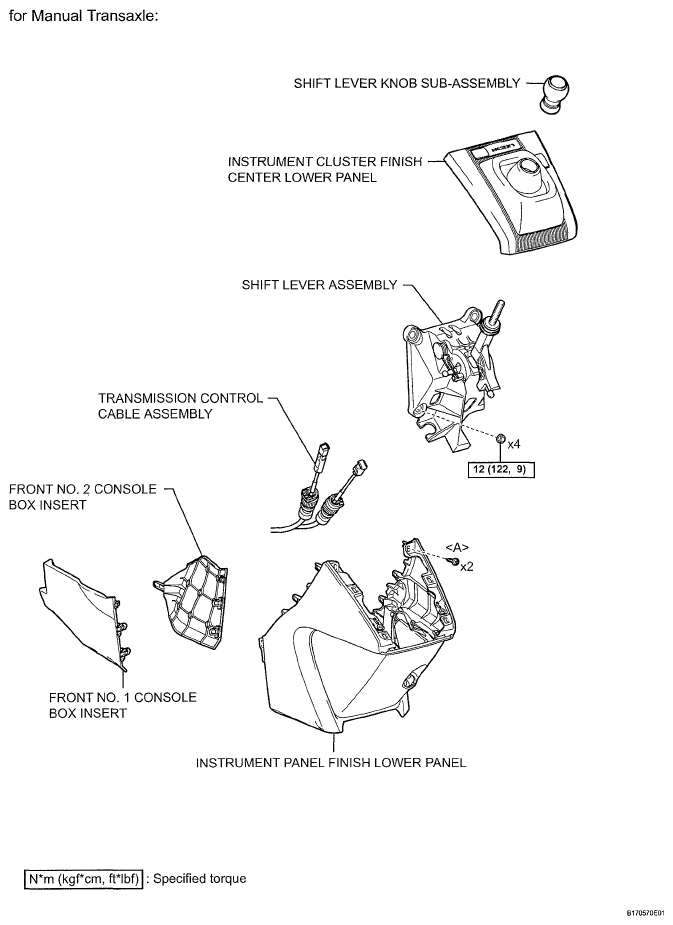

Fig 4: Lower Instrument Panel Replacement Components With Torque Specifications (4 Of 6)

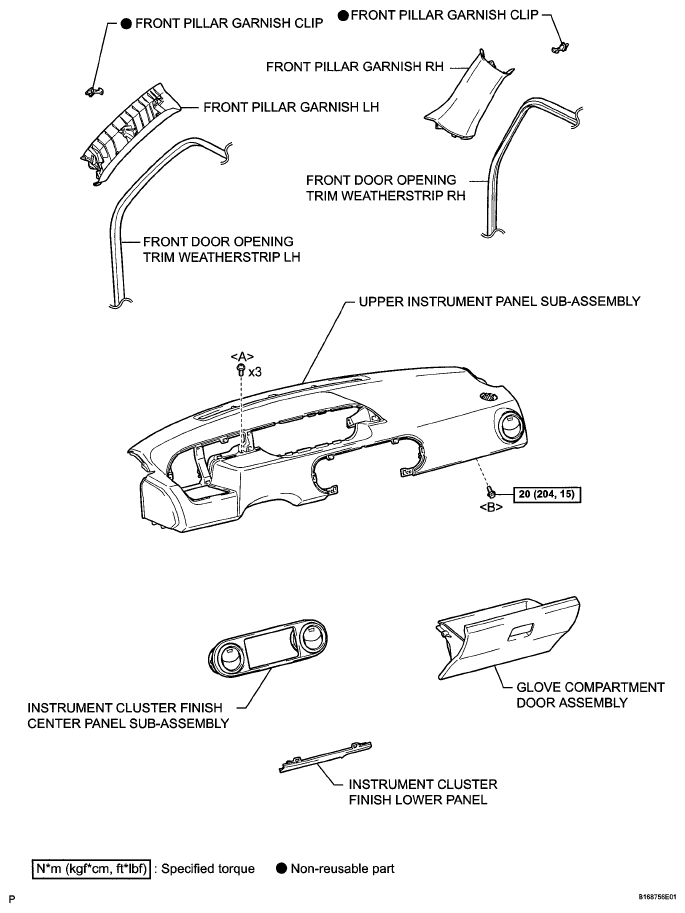

Fig 5: Lower Instrument Panel Replacement Components With Torque Specifications (5 Of 6)

Fig 6: Identifying Lower Instrument Panel Components (6 Of 6)
