Upper Instrument Panel: Components

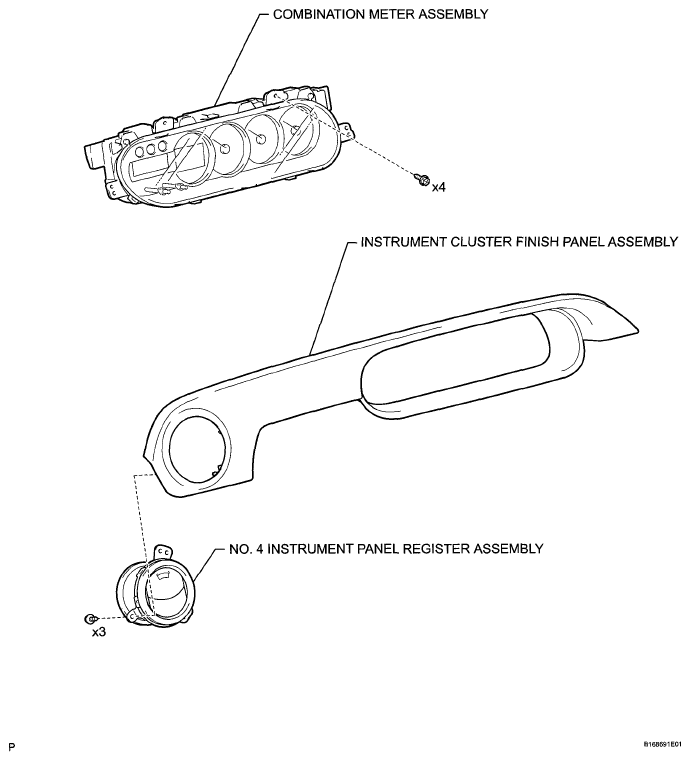

Fig 1: Identifying Upper Instrument Panel Replacement Components (1 Of 3)
G05391370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

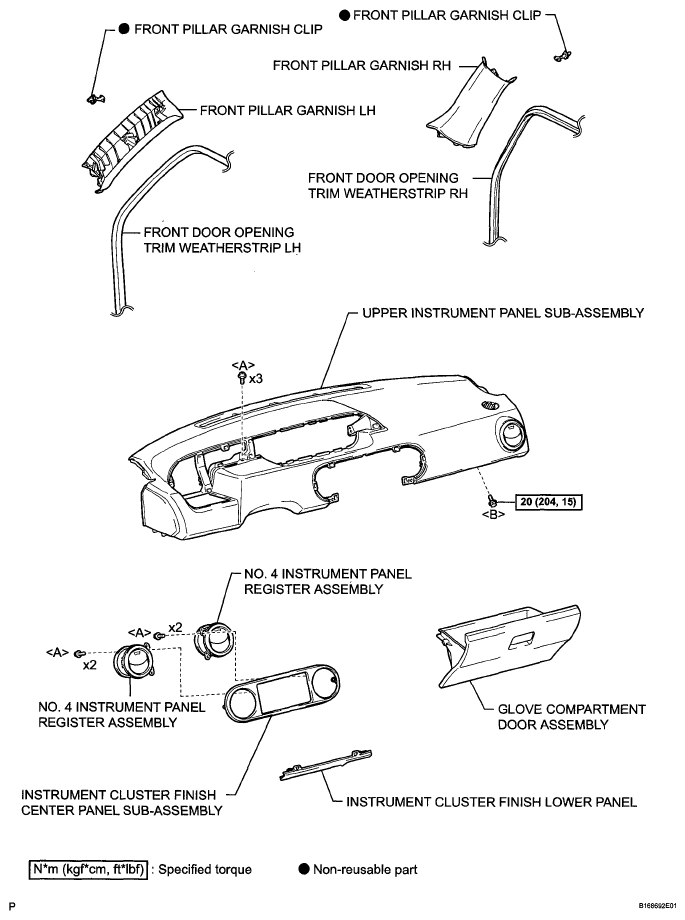

Fig 2: Identifying Upper Instrument Panel Replacement Components With Torque Specification (2 Of 3)
G05391371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

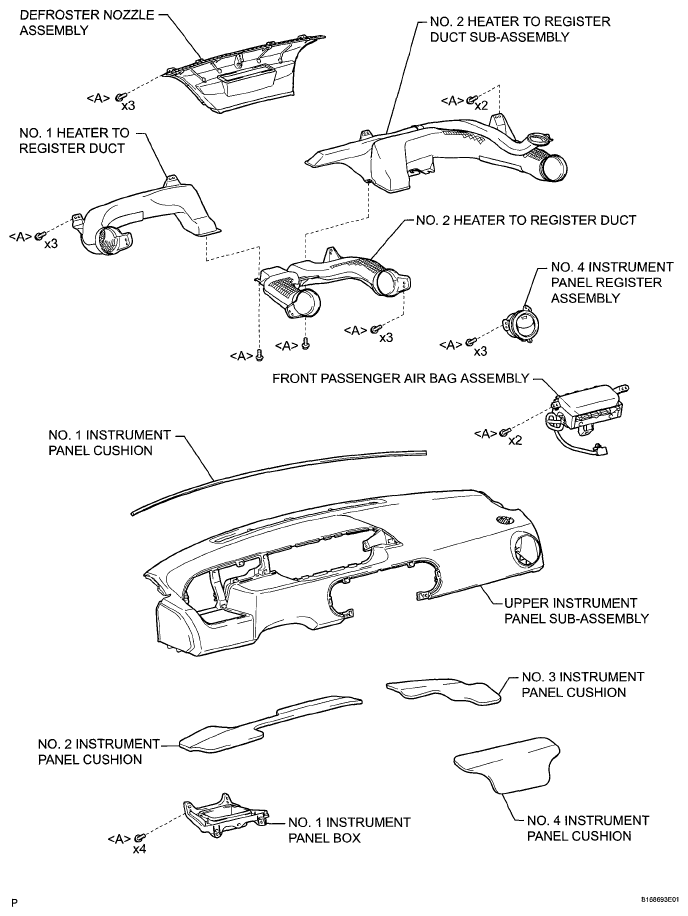

Fig 3: Identifying Upper Instrument Panel Replacement Components (3 Of 3)
G05391372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
