Light Control Rheostat: Components

Fig 1: Identifying Light Control Rheostat Replacement Components (1 Of 3)
G05389953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

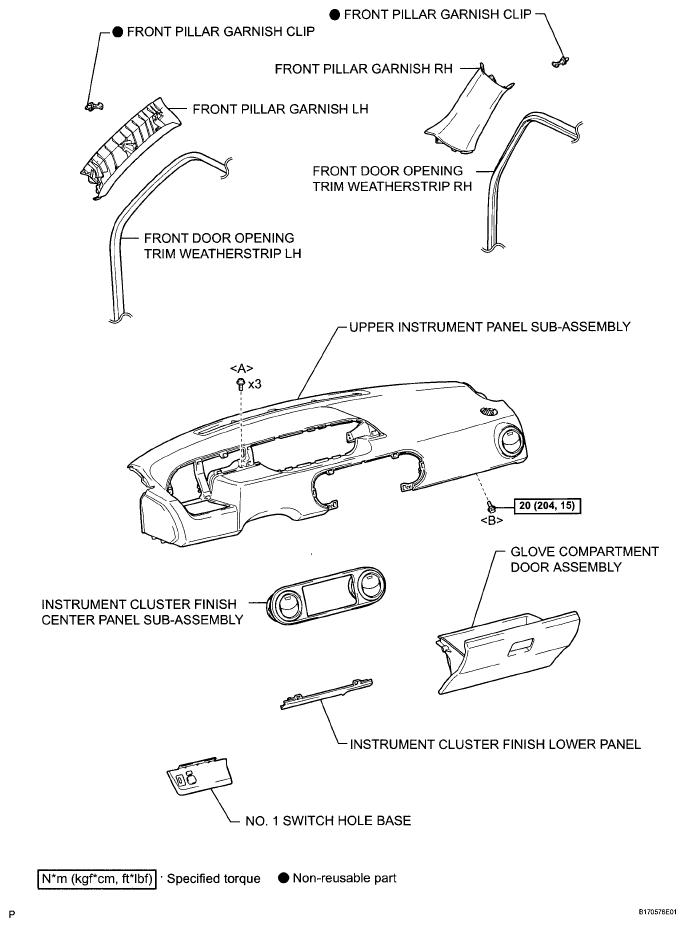

Fig 2: Identifying Light Control Rheostat Replacement Components With Torque Specification (2 Of 3)
G05391152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

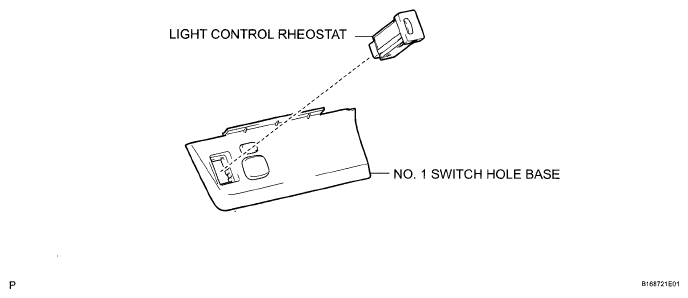

Fig 3: Identifying Light Control Rheostat Replacement Components (3 Of 3)
G05391153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
