Intake Manifold: Components

Fig 1: Identifying Intake Manifold Replacement Components With Torque Specification (1 Of 5)
G05389535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

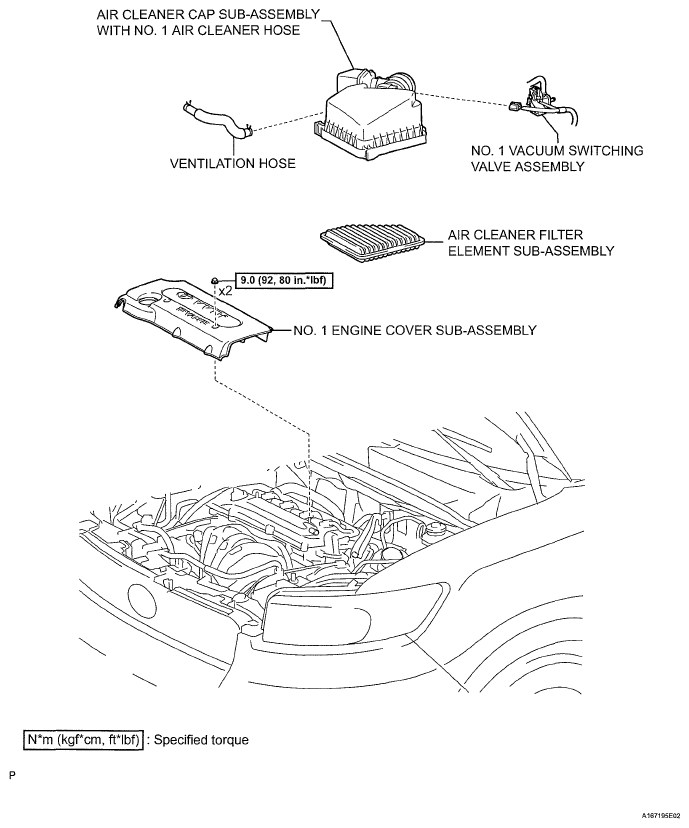

Fig 2: Identifying Intake Manifold Replacement Components With Torque Specification (2 Of 5)
G05387661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

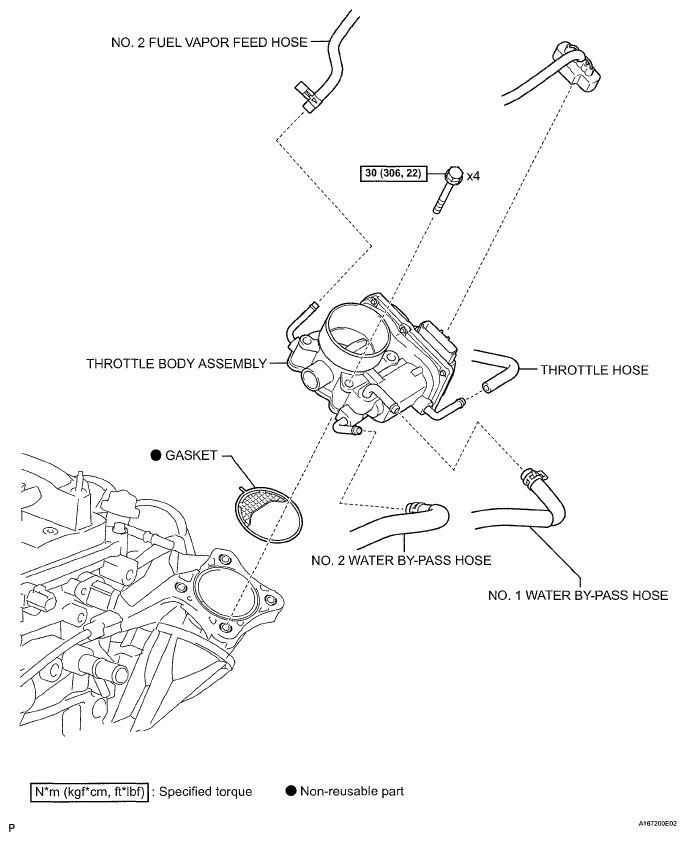

Fig 3: Identifying Intake Manifold Replacement Components With Torque Specification (3 Of 5)
G05386904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

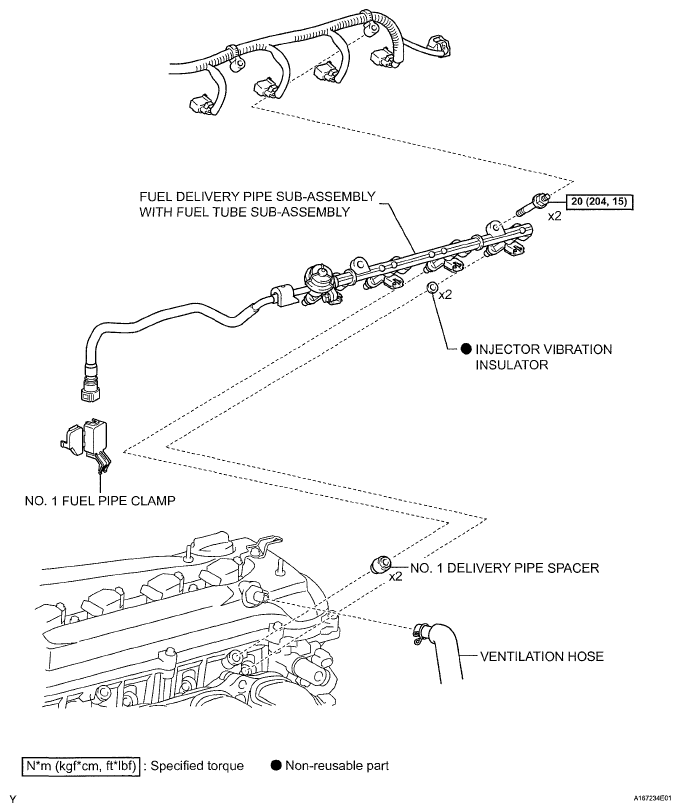

Fig 4: Identifying Intake Manifold Replacement Components With Torque Specification (4 Of 5)
G05386984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

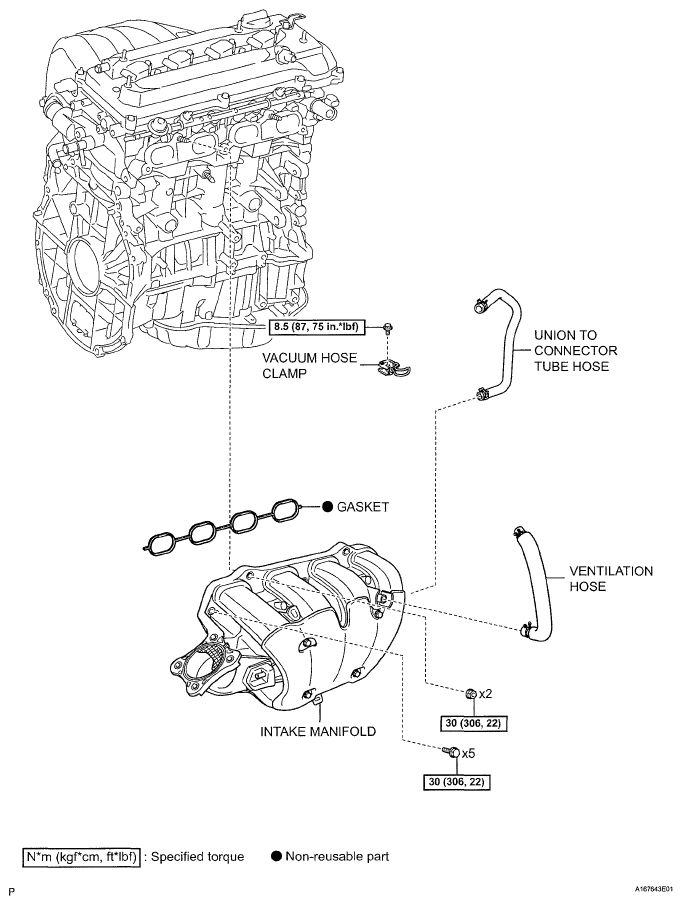

Fig 5: Identifying Intake Manifold Replacement Components With Torque Specification (5 Of 5)
G05387664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
