Fuel Tank: Components

Fig 1: Identifying Fuel Tank Components And Tightening Torque (1 Of 3)
G05387554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Fuel Tank Components (2 Of 3)
G05387555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

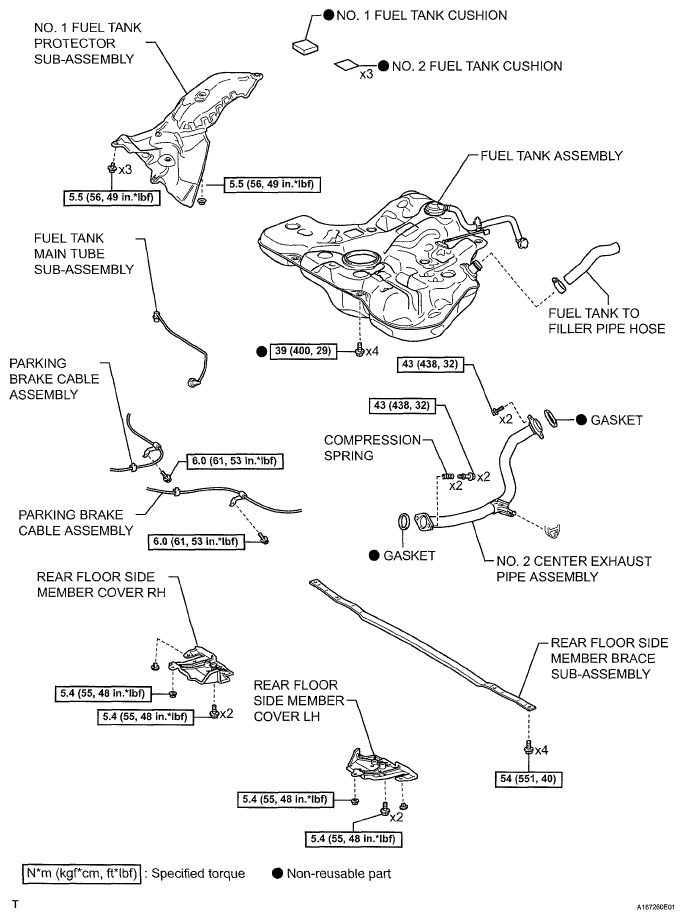

Fig 3: Identifying Fuel Tank Components And Tightening Torque (3 Of 3)
G05387556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
