Rear Coil Spring: Components

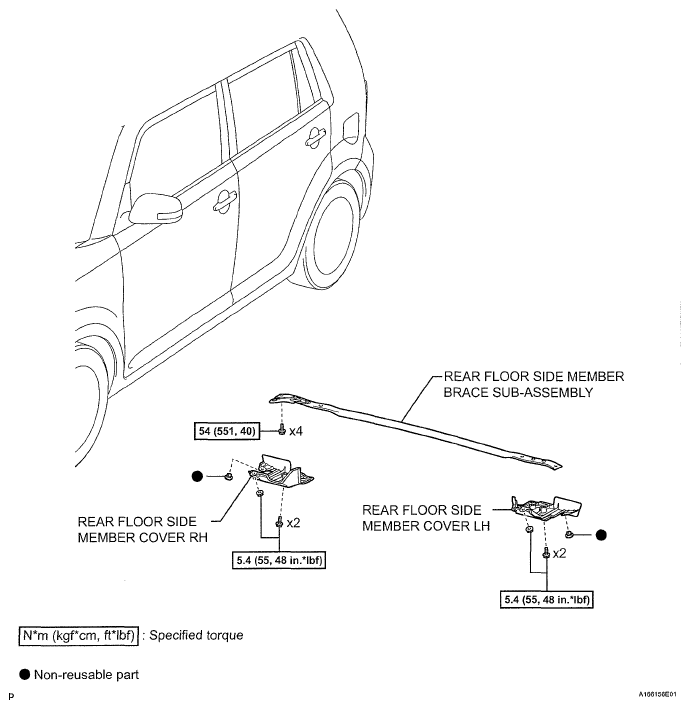

Fig 1: Rear Coil Spring Replacement Components With Torque Specifications (1 Of 2)
G05389271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

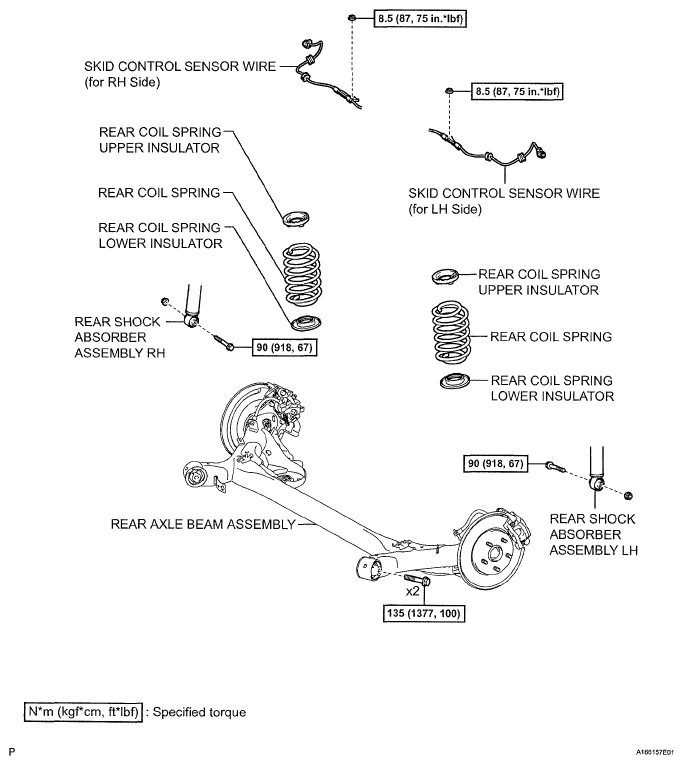

Fig 2: Rear Coil Spring Replacement Components With Torque Specifications (2 Of 2)
G05389272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
