Automatic Transaxle Unit: Components

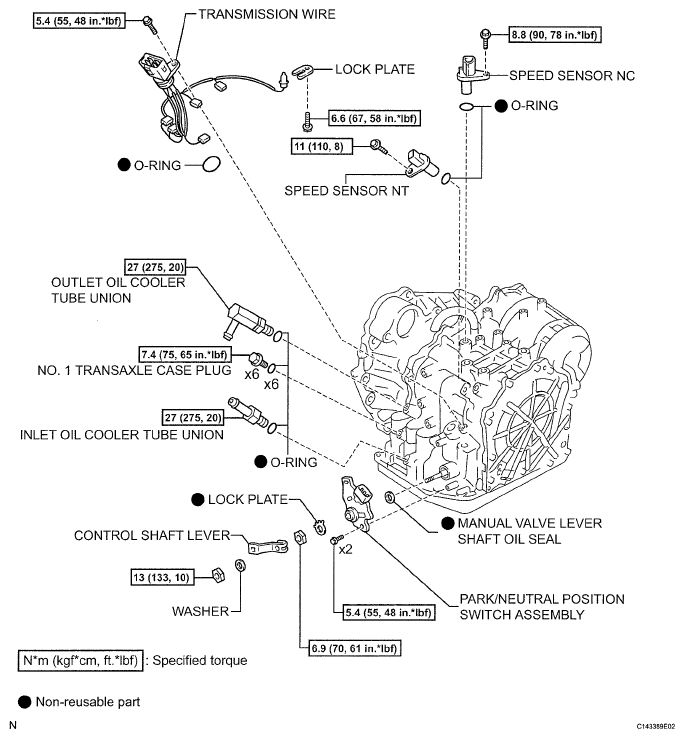

Fig 1: Identifying Automatic Transaxle Unit Replacement Components And Torque Specifications (1 Of 10)
G05388246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

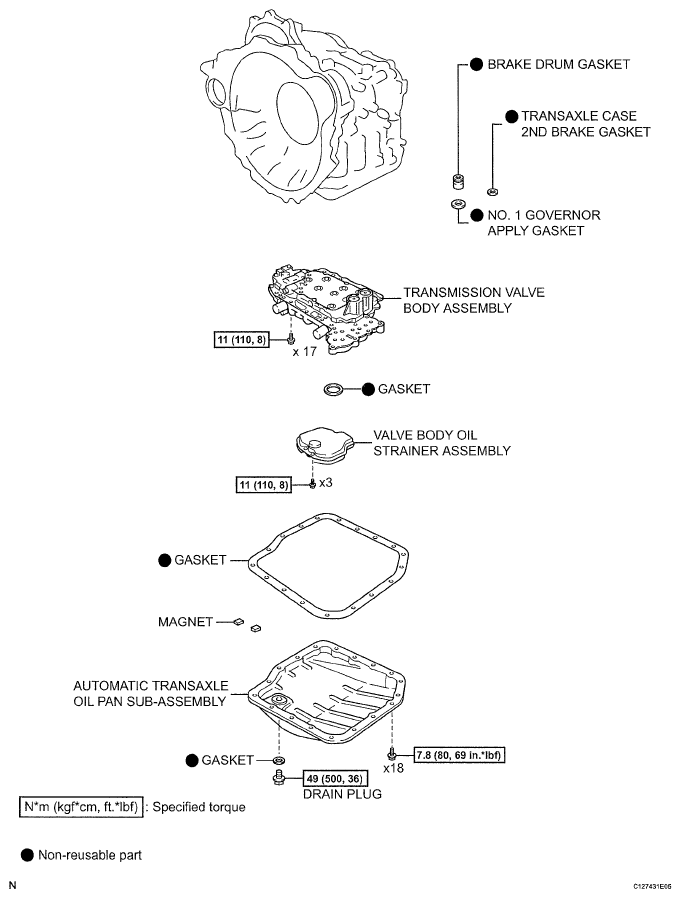

Fig 2: Identifying Automatic Transaxle Unit Replacement Components And Torque Specifications (2 Of 10)
G05388247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

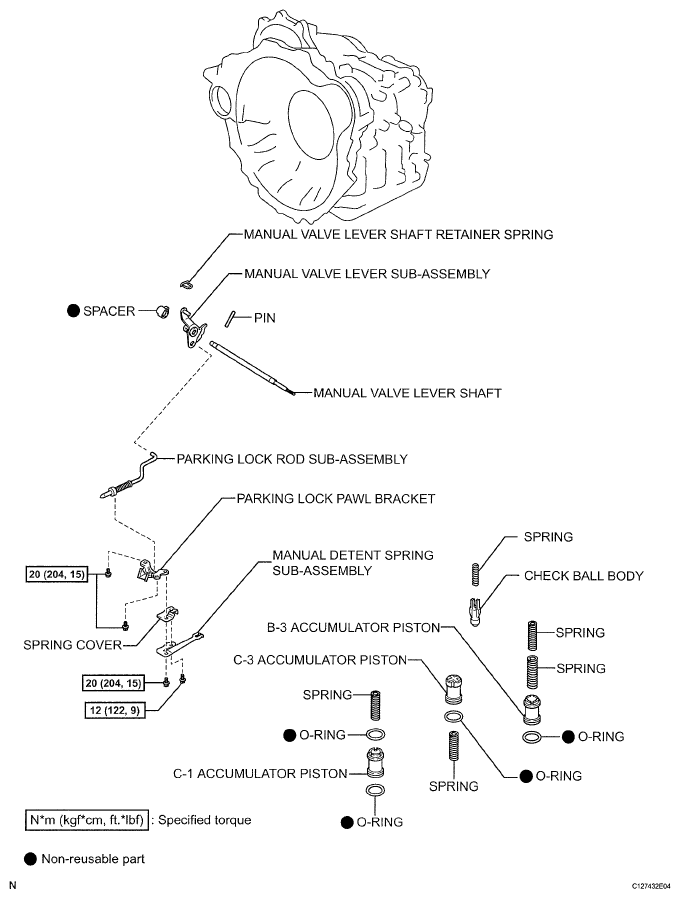

Fig 3: Identifying Automatic Transaxle Unit Replacement Components And Torque Specifications (3 Of 10)
G05388248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

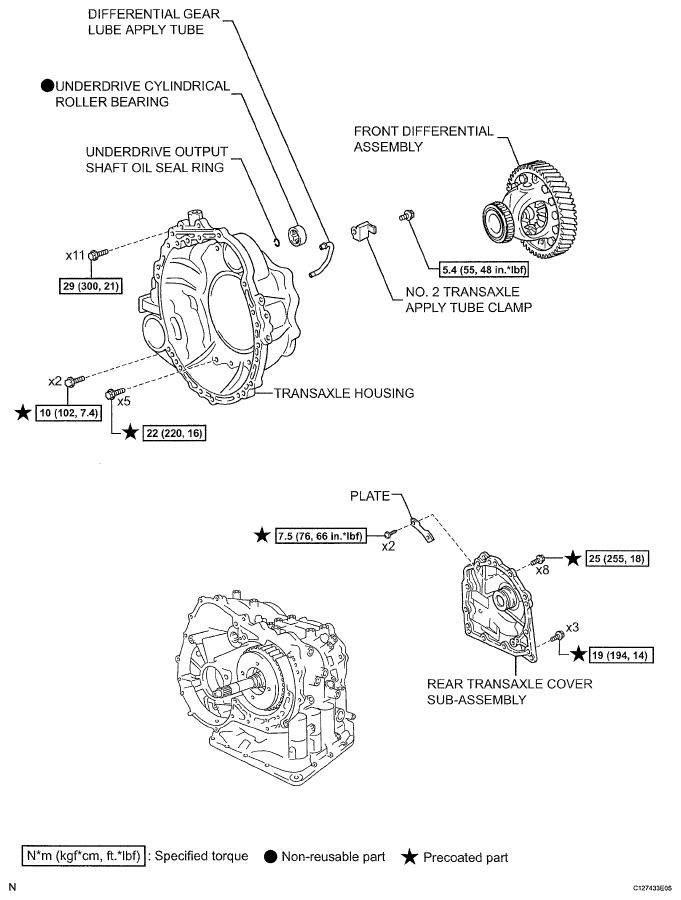

Fig 4: Identifying Automatic Transaxle Unit Replacement Components And Torque Specifications (4 Of 10)
G05388249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

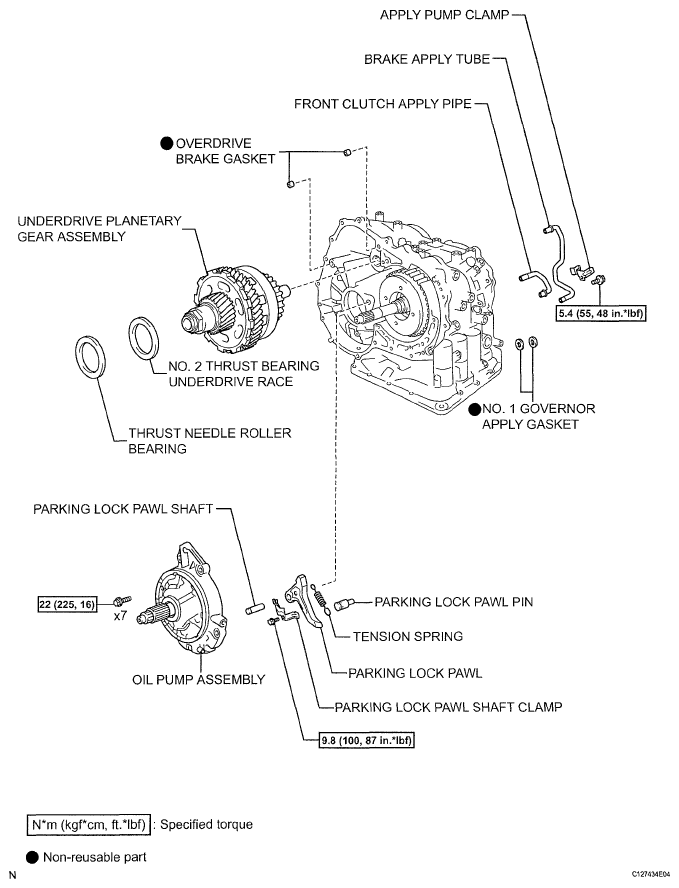

Fig 5: Identifying Automatic Transaxle Unit Replacement Components And Torque Specifications (5 Of 10)
G05388250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

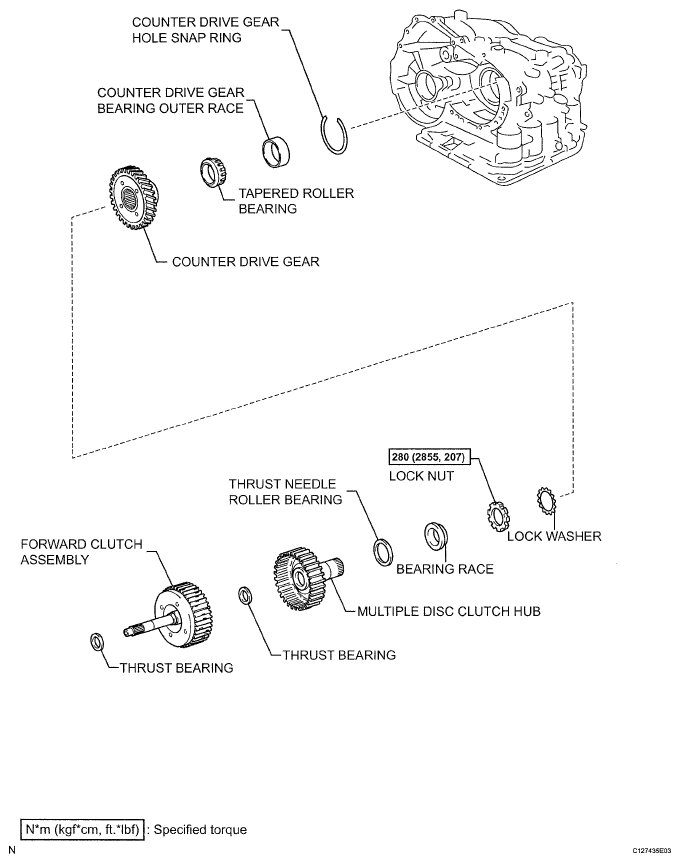

Fig 6: Identifying Automatic Transaxle Unit Replacement Components And Torque Specification (6 Of 10)
G05388251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

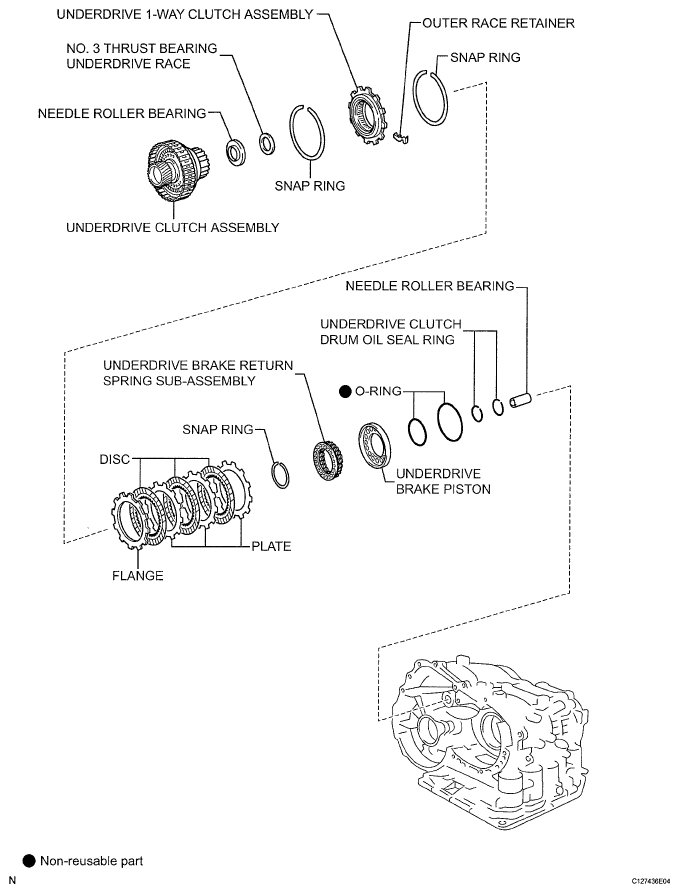

Fig 7: Identifying Automatic Transaxle Unit Replacement Components And Torque Specifications (7 Of 10)
G05388252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

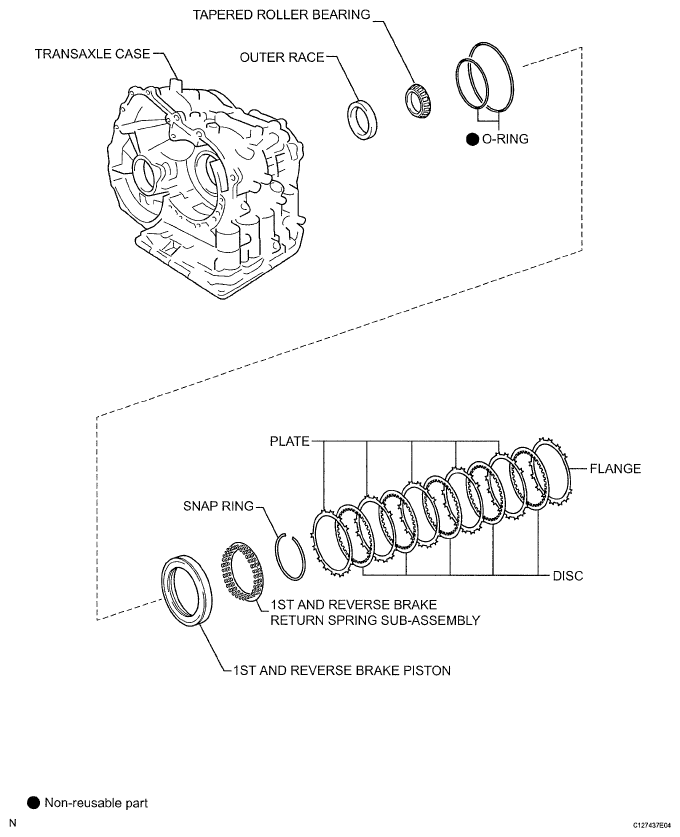

Fig 8: Identifying Automatic Transaxle Unit Replacement Components (8 Of 10)
G05388253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

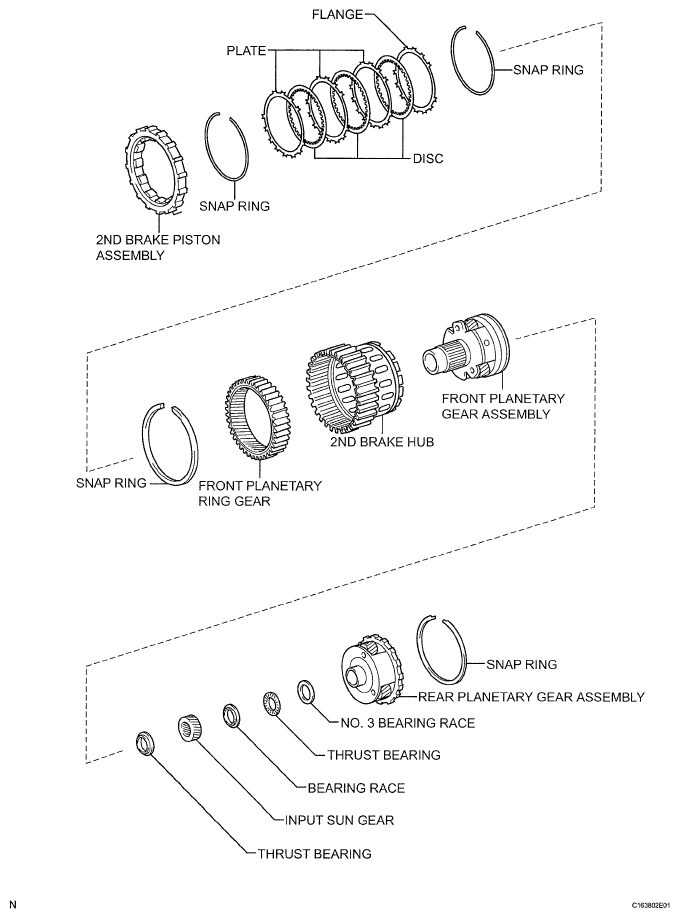

Fig 9: Identifying Automatic Transaxle Unit Replacement Components (9 Of 10)
G05388254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

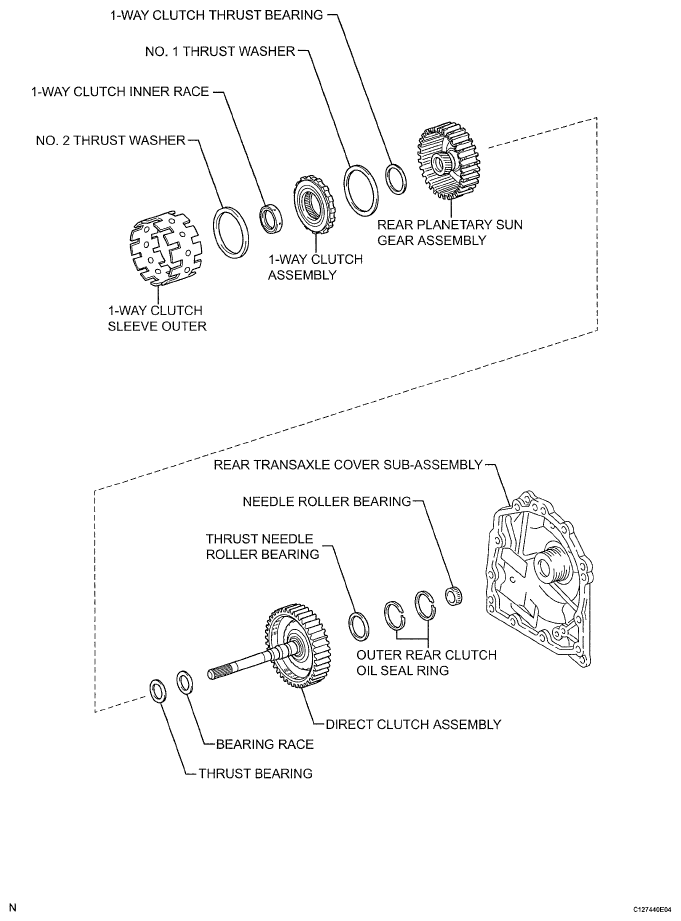

Fig 10: Identifying Automatic Transaxle Unit Replacement Components And Torque Specifications (10 Of 10)
G05388255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
