Transmission Control Cable Assembly: Components

Fig 1: Speed Sensor Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

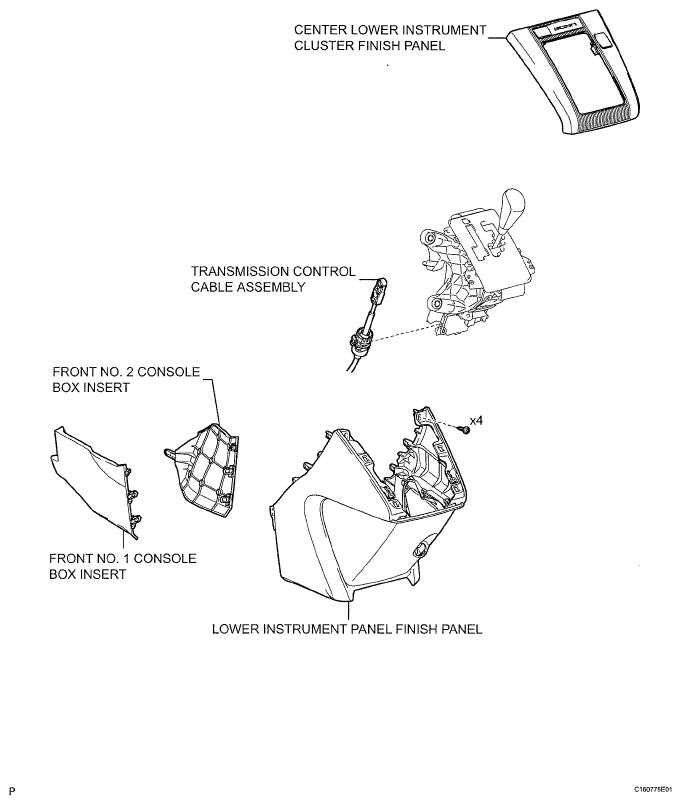

Fig 2: Transmission Control Cable Assembly Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

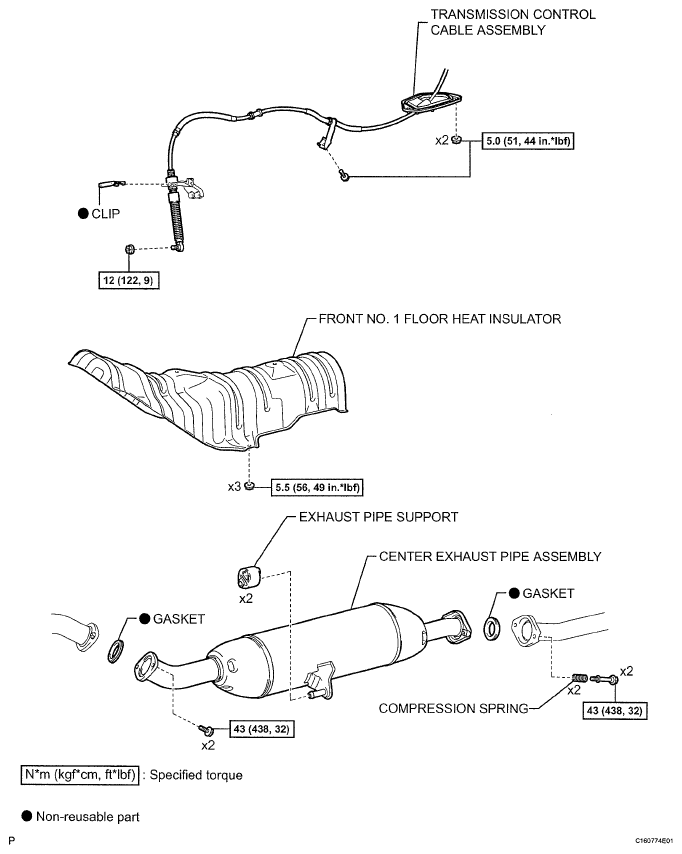

Fig 3: Identifying Transmission Control Cable Assembly Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
