Home >> Scion >> 2009 >> xB Automatic >> Repair and Diagnosis >> Transmission >> U241E Automatic Transaxle >> Transmission Control Cable Assembly >> Installation

Transmission Control Cable Assembly: Installation

  1. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Install the transmission control cable assembly into the control shaft lever with the nut.

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

    2. Fix the transmission control cable assembly onto the transmission control cable bracket with a new clip.
      Fig 1: Locating Transmission Control Cable Assembly Nut And Clip
      G05388139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the transmission control cable assembly with the 2 nuts.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

      Fig 2: Locating Nuts And Transmission Control Cable Assembly
      G05388140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the transmission control cable assembly onto the rear engine mounting insulator with the bolt.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

      Fig 3: Locating Bolt And Transmission Control Cable Assembly
      G05388137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Connect the transmission control cable assembly to the transmission control cable support.
      Fig 4: Locating Cable Support Clamp
      G05388138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

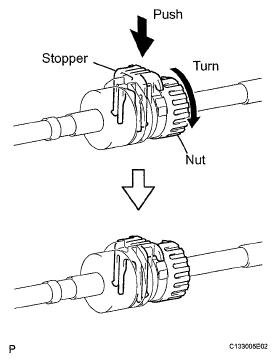

    6. Rotate the transmission control cable nut counterclockwise approximately 180° and, while holding the nut in that position, press in the stopper until it makes 2 "click" sounds.
      Fig 5: Rotating Transmission Control Cable Nut Counterclockwise
      G05388145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

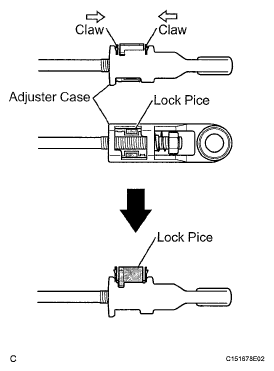

    7. Push the lock piece up from the back side of the adjuster case while pinching the claws on the lock piece.
      Fig 6: Pushing Lock Piece Up
      G05388121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Install the outer cable of the transmission control cable onto the shift lever retainer, check that the position of the spring is the same as A shown in the illustration, and press in the stopper.

      HINT:

      If the stopper cannot be pressed in, slightly rotate the nut clockwise and then press in the stopper.

      Fig 7: Installing Cable Outer Onto the Shift Lever Retainer
      G05388122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Connect the control cable to the shift lever.
      NOTE:
      • Make sure the cable is installed onto the base of the pin.
      • Check that the lock piece is pulled up.
        Fig 8: Identifying Lock Piece
        G05388123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    10. Connect the 2 connectors.
    Fig 9: Locating Connectors
    G05388089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. ADJUST SHIFT LEVER POSITION  (See INSTALLATION  )
  3. INSPECT SHIFT LEVER POSITION  (See ON-VEHICLE INSPECTION  )
  4. INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR
    1. Install the front upper No. 1 floor heat insulator with the 3 nuts.

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

      Fig 10: Locating Nuts And Front No. 1 Floor Heat Insulator
      G05388132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL CENTER EXHAUST PIPE ASSEMBLY
    1. Using vernier calipers, measure the free length of the compression spring.

      Minimum length:

      38.5 mm (1.516 in.)

      If the length is not as specified, replace the compression spring.

      Fig 11: Measuring Free Length Of Compression Spring
      G05388151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a plastic hammer and a wooden block, tap in a new exhaust pipe gasket until its surface is flush with the center exhaust pipe assembly and No. 2 center exhaust pipe assembly.
      Fig 12: Identifying Exhaust Pipe Gasket
      G05388152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      CAUTION:
      • Install the exhaust pipe gasket in the correct direction.
      • Do not damage the outer surface of the exhaust pipe gasket.
      • Do not reuse the exhaust pipe gasket.
      • Do not push in the gasket with the exhaust pipe when connecting it.
    3. Install the exhaust pipe support, then install the center exhaust pipe assembly.
      Fig 13: Locating Exhaust Pipe Supports
      G05388131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the center exhaust pipe assembly onto the No. 2 center exhaust pipe assembly with the 2 bolts and 2 compression springs.

      Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

      Fig 14: Identifying Center Exhaust Pipe Assembly Bolts And Compression Springs
      G05388130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install the center exhaust pipe assembly onto the front exhaust pipe assembly with a new gasket and 2 bolts.

      Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

      Fig 15: Identifying Front Exhaust Pipe Assembly Bolts And Gasket
      G05388129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL AIR CLEANER CASE SUB-ASSEMBLY  (See INSTALLATION  )
  7. INSTALL AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY  (See INSTALLATION  )
  8. INSTALL AIR CLEANER CAP SUB-ASSEMBLY  (See INSTALLATION )
  9. INSTALL NO. 2 BATTERY CARRIER  (See INSTALLATION  )
  10. INSTALL BATTERY  (See INSTALLATION )
  11. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL  (See INSTALLATION )
  12. INSTALL FRONT NO. 1 CONSOLE BOX INSERT  (See INSTALLATION )
  13. INSTALL FRONT NO. 2 CONSOLE BOX INSERT  (See INSTALLATION )
  14. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL  (See INSTALLATION )
  15. INSPECT FOR EXHAUST GAS LEAK
